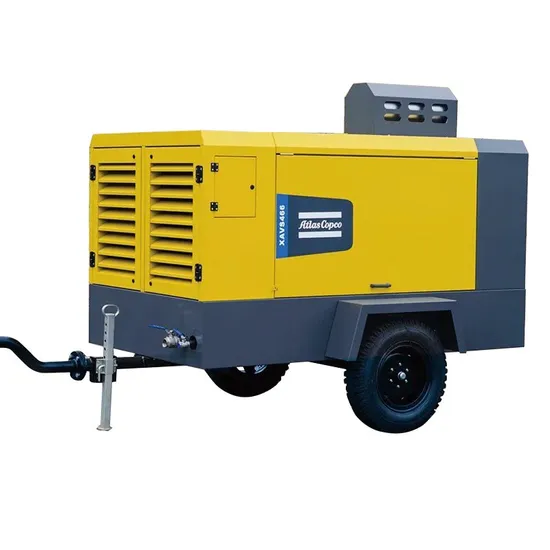

Atlas Copco Rotary Screw Air Compressor High Pressure Diesel Powered Portable Screw Compressor Xats426 Xavs466

Product Description

Certifications
Industrial Atlas Copco Diesel Driven Portable/Mobile Screw Air Compressor
Atlas Copco is the leading manufacturer of portable compressed air machines in the world. Used in a wide variety of industries, Atlas Copco has developed a set of machines that successfully walk the line between size, output and capacity.
- Safety features as pressure displays,
emergency stop and spill free frame
- FuelXpert™for optimised fuel consumption
- Oiltronix™ for longer lasting components
- Dual pressure system - variation of output and flow between lower and higher pressure limits
- Ready to operate with a full range of options for all operating conditions
- Best for use in all weather conditions (-25°C to +50°C)
- Fast speed tandem or wagon trailer
- Truck or skid mounted version
Advantages
- Operator and environmentally safe
- Lowest total cost of ownership
- Best fuel consumption in class
- Rugged frame built to last
- Higher capacity drilling with dual pressure system
- Best fuel autonomy for complete working shift

Model	XATS 426	XAVS 466
Compressor
Capacity	12m3/min	13 m3/min
Pressure	13 bar	13 bar
Weight	1560 kg	1990 kg
Dimensions	2400*1800*2120 mm	3000*2000*2190 mm
Cooling method	Air cooling	Air cooling
Driven method	Direct Driven	Direct Driven
Outlet air temperature (ºC)	≤10~15 (+ ambient temp.)	≤10~15 (+ ambient temp.)
Compress stage	1	1
Oil content in compressed air	≤3ppm	≤3ppm
Diesel tank volume	120	180
Engine manufacturer	Yuchai	Yuchai
Operation environment condition	Altitude: ≤1200m; ambient temperature: -10-35ºC; relative humidity: 60%; pitch of site: ≤30°	Altitude: ≤1200m; ambient temperature: -10-35ºC; relative humidity: 60%; pitch of site: ≤30°
