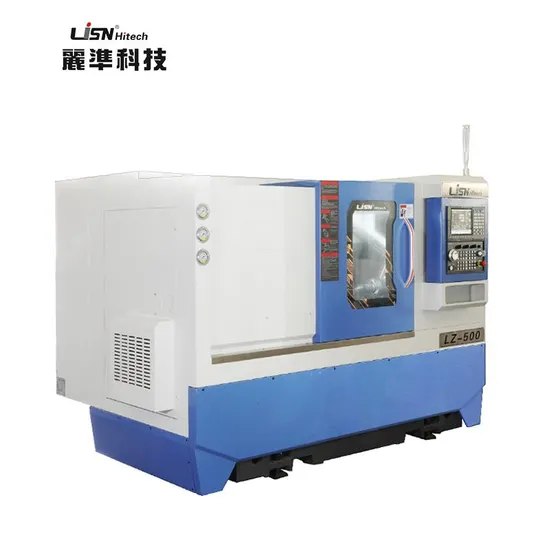

Automatic CNC Turning Lathe Nc Automatic Metal Turning Center Machine Tool Lz-460

Product Description

Product Description
1. Our state-of-the-art machine is a two-coordinate (longitudinal Z, horizontal X) continuous control horizontal CNC lathe, designed with superior processing capabilities for shaft and disc parts. It is perfectly tailored for large batch sizes, ensuring high processing precision and consistent dimensions. This machine excels in high-demand processing tasks, making it particularly ideal for industries such as aerospace, automotive, mold making, and instrumentation. It specializes in the efficient, high-volume, and high-precision machining of parts, embodying unmatched efficiency, precision, and quality at a low operational cost.
2. The machine tool's design integrates mechanical, electrical, and hydraulic systems in a well-rounded structure, promoting high-speed, high-precision, and high-rigidity operations. This ensures users experience exceptional efficiency and reliability. Critical components are procured through a competitive bidding process, selecting renowned manufacturers to guarantee the machine's impeccable precision and reliability. The entire machine is enclosed in a full protective structure that adheres to ergonomic principles, simplifying operation, enhancing safety, and minimizing environmental pollution.
Main Features
Slant bed angled at 45 degrees, featuring a spindle bore diameter of 86mm, Max. swing over bed of 560mm, Maximum Turning length of 500mm, CNC controller system, main spindle servo motor with a power of 11kw, Spindle unit speed up to 3500rpm, Taiwan linear guideway, 10-inch hollow type hydraulic 3-jaw chuck, 8-station servo turret, One-piece bed, Hydraulic tailstock, Chip conveyor with cart, Automatic cooling and lubrication system, Work light, Alarm light Detailed Photos

Product Parameters

Specifications	MODELS→	LZ-450	LZ-460
Max. Swing Over Bed	mm	450	460
Max. Processing Diameter	mm	200	400
Max. Processing Length	mm	300	350
CNC System	-	GSK(Optional: Mitsubishi/Fanuc/Siemens/KND/HNC)
Chuck Size	-	A2-5	A2-5(8″)200mm6″150
Spindle Motor Power	Kw	5.5	7.5
Spindle Speed Range	rpm	5000	4000/5000
Bar Diameter	mm	032/O42	56
X.Z-Axis Limit Stroke	mm	120/320	210/400
Turret Station	-	8T	80-12T
Max Travel Of Tailstock	mm	250	300
Taper Hole Of Tailstock Sleeve	-	4#	4#
Machine Dimension	mm	1400x1500x1600	1730x1270x1328
Net Weight	kg	1800	3400

Company Profile
Lizhun Machinery Co., Ltd. stands at the forefront of innovation, dedicated to the development and production of CNC machining centers and CNC lathes. With a steadfast commitment to innovation and excellence, Lizhun has been a trusted partner to numerous renowned enterprises globally, delivering machines that excel in performance, precision, and quality. Looking ahead, Lizhun remains committed to its core values of innovation and excellence, aiming to provide robust and enduring support to the processing industry. We strive to offer premier processing machines tailored for the 5G, aviation, automobile, and other cutting-edge industries.
Nestled in Dongguan, Guangdong province, Lizhun Machinery Co., Ltd. boasts a picturesque product exhibition hall in Songshan Lake, Dongguan City, complemented by an elegant work environment. Our factory, located in Dalingshan, is well-equipped with comprehensive facilities and staffed by a team of seasoned professionals. Each member brings years of expertise in innovation, development, assembly, and production, ensuring that every machine that leaves our factory is of exemplary quality and performance. when it leaves the factory.
Spanning expansive grounds, our factory supports multiple production lines, assuring robust production and supply capacity. This ensures customers receive their machines within the specified timeframe, mitigating potential issues arising from capacity shortages.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at
