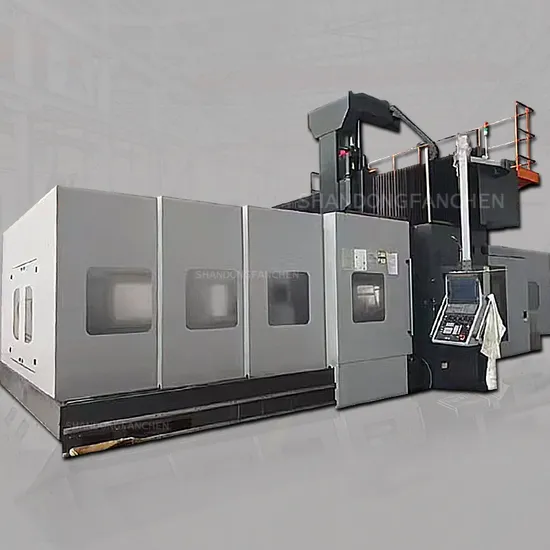

Gmb2518 CNC Guide Rail Drilling and Tapping Gantry Machining Center

Gmb2518 CNC Guide Rail Drilling and Tapping Gantry Machining Center

US$109,000.00-49,900,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GMB2518
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Five-Axis Gantry Machining Center
Certification
GS, CE, ISO 9001
Condition
New
Bed Dimension
2500/1600mm
Maximum Load-Bearing of The Workbench
8000kg
Maximum Stroke of Axis
2500mm
Ymaximum Travel of Y Axis
1800mm
Zmaximum Trip on The Z Axis
800mm
Range of Speeds
6000rpm
Maximum Power of The Spindle Motor
15/18.5kw
Spindle Taper
Bt50 160
Fast Feed Rate
20000mm/Min
X/Y/Axle
0.05/300mm
Maximum Cutting Speed
10000mm/Min
Positioning Accuracy
0.01mm
Electricity Demand
60kVA
Pressure Pressure Demand
66kg/Cm2
Oil Pressure Box Capacity
Hydraulic Pressure Station
Transport Package
Xyloid
Specification
5000/3800/2500mm
Trademark
FANCHEN
Origin
China
Production Capacity
100

Packaging & Delivery

Package Size
500.00cm * 380.00cm * 250.00cm
Package Gross Weight
23000.000kg

Product Description

Content Name Specifications and modelsGMB2518 Specifications and modelsGMB2525
Workbench Bed dimension 2500 X 1600mm 2500 X 1600mm
Maximum load-bearing of the workbench 8000kg 8000kg
Range of work X/Maximum stroke of axis 2500mm 2500mm
Y/Maximum stroke of axis 1800 mm 1800mm
Z/Maximum stroke of axis 800 mm 800 mm
Principal axis Range of speeds;range of speeds of rotation 6000 r/min 6000r/min
Maximum power of the spindle motor 15/18.5 kw 15/18.5 kw
Spindle taper BT50/160 BT50/160
Distance from spindle nose to workbench 200-1000 mm 200-1000 mm
Distance between two columns 1900mm 1800mm
Spindle transmission form Gear type Gear type
Rapid feed Fast feed rate X-axis 20000mm/min X-axis 20000mm/min
Y-axis 20000mm/min Y -axis 20000mm/min
Z-axis 20000mm/min Z-axis 20000mm/min
Maximum cutting speed 10000 mm/min 10000 mm/min
positioning accuracy X/-axis 0.025 mm 0.025 mm
Y/-axis 0.020 mm 0.020 mm
Z/-axis 0.015 mm 0.015 mm
Repeat positioning accuracy X/-axis 0.008 mm 0.008 mm
Y/-axis 0.008 mm 0.008 mm
Z/-axis 0.008 mm 0.008 mm
Electricity demand 60KVA 60KVA
Pressure pressure demand 66kg/cm2 66kg/cm2
Oil pressure box capacity Hydraulic pressure station Hydraulic pressure station
Lubricating oil box capacity 6 l 6 l
Cutting liquid capacity 550 l 550 l
Machine dimensions 5000/3800/2500mm 6000/4200/3000mm
Machine tool weight 23T 23T

FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
