Best Selling 32 Inch C/J/S Curved Gaming Monitor with Touch Screen for Casino Machine

Product Description

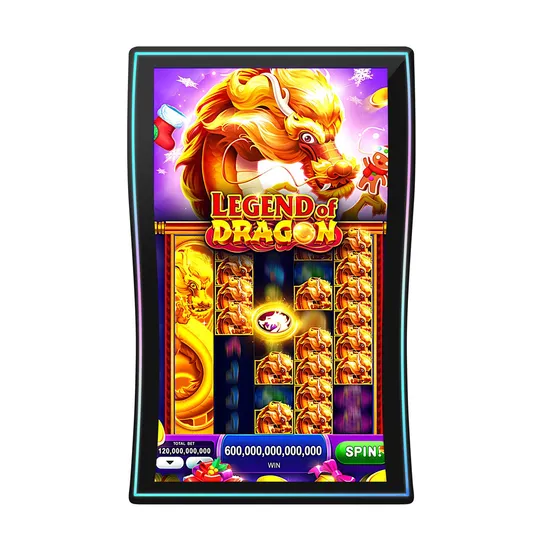

Best Selling 32 Inch C/J/S Curved Gaming Monitor
with Touch Screen for Casino MachineProduct Description
The 32 inch Curved touch monitor is a product specially designed for games, high-end places, and casinos, such as self-service terminals, game machines, gambling machines and so on.It has the advantages of compact structure, convenient installation and high cost performance. All products adopt multi-point projected capacitive touch technology, which has the characteristics of fast touch response, high precision and strong anti-interference.
Head Sun do customize 32inch, 43inch,49inch 55inch straight and curved monitor with touch displays at any size. Displays are LED-backlit and low-power-consumption. They have a slim-bezel design and a long life expectancy. 32", 43" 49'' 55" Curved Surface Touch Monitor for gaming machine, Kiosk and Banking industry can be ordered in any quantity-standard or custom-sized. Our monitors are engineered for durability and ease of integration reducing your downtime and operational inefficiencies.

Environmental Characteristics
OperatingTemperature	-30~70ºC
Storage Temperature	-20~60ºC
Reliability Test Conditions
High-temperature Storage	T=70ºC, 72H
Low-temperature Storage	T=-30ºC, 72H
High-temperature\High-humidity Storage	T=60ºC 90%,72H
Heat Shock	(-20ºC(30min)←(5min Max.)→60 ºC(30min))=50 Set
Electro Static Discharge	Air discharge :±8KV,Contact discharge :±4KV
Hardness	≥6H
Ball Drop Test	64g 40cm, No breakage at the center point for 3 times
FPC Bending Test	The bending radius R1.0 mm, more than three times

LED Plane and curved touch displays List
Model	Size (inch)	Brightness	Power Consumption	Resolution	AA Size (mm)(H*V)	Outline Size (mm)(H*V*B)	Contrast	Category
FT012-215-19201080-A0	21.5	300	75W	1920*1080	477.5mm*268.6mm	546*361.5*56.5mm	1200: 1	Plane
FT012-236-19201080-A0	23.6	300	75W	1920*1080	522.2*294.2mm	597.2*369.2mm*56.5mm	1200: 1	Plane
FT012-270-19201080-A0	27	300	75W	1920*1080	597.2*336.2mm	677.2*419*56.5mm	1200: 1	Plane
FT012-320-19201080-A0	32	300	75W	1920*1080	698.7*393.3mm	777.7*476.3*57.5mm	1300: 1	Plane
FT012-430-19201080-A0	43	300	135W	1920*1080/3840*2160	963.6*557.9*30mm	1024.19*512.46*60mm	1300: 1	Plane
FT012-320-19201080-A1	32	500	135W	1920*1080	698.4*392.85mm	780.78*476.6*110.62mm	1300: 1	Curves-C
FT012-430-19201080-A1	43	500	135W	1920*1080/3840*2160	963.6*557.9mm	980.9mm*572mm*127.4mm	1300: 1	Curves-C
FT012-430-19201080-A2	43	500	135W	1920*1080/3840*2160	941.184*529.416mm	1008.68mm*598.32mm*288.25mm	1300: 1	Curves-J
FT012-490-38402160-A0	49	500	135W	3840*2160	1073*603mm	1148.83*695.01*288.25mm	1300: 1	Curves-J
FT012-490-38402160-A0	49	500	135W	1920*1080/3840*2160	1085*603mm	1053.7*696*117.6mm	1300: 1	Curves-C
FT012-550-38402160-A0	55	500	163W	3840*2160	1209*680mm	1271.3*759.1mm	1300: 1	Curves-C
FT012-550-38402160-A1	55	400	163W	3840*2160	1209*680mm	1278.87*771.8*235.48mm	1300: 1	Curves-J
FT012-550-38402160-A2	55	400	163W	3840*2160	1227.4*698.2mm	1293.1*833.4mm	1300: 1	Curves-S

Key Features
1. The curved touch display product series are standard equipped with the most advanced projection capacitor (GFF) touch technology, which can support 10 touch points. It has the advantages of fast response speed, high touch accuracy, and no touch pressure. Compared with other touch technologies, the touch operation experience is better. For special applications or particularly harsh use environments, we can provide touch display products with customized enhanced projection capacitor screens that meet industrial requirements.2. One-time molding through the injection molding process, high precision, and good consistency. Seamless assembly with projection capacitor screen to achieve dustproof and waterproof performance; The design realizes the flat assembly with various cabinets, which makes the installation more convenient and has a better visual effect; The front frame component is composed of a plastic middle frame and the capacitive touch screen is fixed with screws between the iron plate, which abandons the traditional way of bonding and fixing the touch screen and LCD with double-sided adhesive tape, which not only simplifies the production process but also greatly improves the convenience of component replacement and the maintainability of the whole machine.3. The color is exquisite and gorgeous. It can restore the real color under different lighting conditions to meet the needs of color restoration in different industries.4. Stronger structural compatibility, compatible with various stand-alone versions, Android network versions, x86 and other different schemes, capacitance G + G, and non-touch (optional).5. Compact structure design, suitable for installation in various ways, metal shielding structure, can prevent external electromagnetic interference and no radiation.6. Ultra-thin design, novel and beautiful appearance, fast and simple installation.7. Wide voltage range, can work normally at AC100 ~ 240V (50 / 60Hz).8. Energy saving, environmental protection, low energy consumption, low calorific value, suitable for long-time continuous work.
Applications

*Gambling and other game machine terminals

*Public Display Industry

*Automatic Terminal

*Banking Industry

*Kiosk&Vending Machine

*POS&ATM Self-service Machine

Company Profile
Head Sun Co., Ltd is a new hi-tech enterprise, which is specialized in manufacturing projected capacitive touch panels with more than 14 years' experience. We can do customized touch panel products according to the solution and drawing of customers, to achieve the structures of products have G+F, G+F+F, G+G.
Head Sun was established in 2011, which is located in Hua Feng Tech park, Shenzhen City, with 200 employees & an area of 3,500 square meters for factory and office.
Our Advantages
1. Strong production capacity to ensure delivery.
Δ3,000 square meters factory and dust-free workshop, more than 150 employees.
Δ8 product lines of G+G & G+F+F and 6 product lines of CTP+LCM full-fit bonding. Monthly output can reach 400,000 pieces.
ΔYellow sensor light process + laser sensor process.
2. Experienced Team
More than 10 years of experience professional engineering team.
3. Accept OEM & ODM.
Customers can customize their products. You need to send the drawings and samples to us. Our engineer will evaluate it for you.
4. Modern Technology
Using mainstream touch screen yellow light process technology.
5. Strict and complete quality control system and have our laboratory for testing. So customers do not need to worry about the quality.
Certifications
Head Sun has passed the high-tech enterprise, audited supplier, and ISO9001 quality management system assessment.
Attending Exhibitions
Package&Delivery
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
FAQ
Q1. What service do we offer?Answer: We are a professional manufacturer of Projected Capacitive Touch Panel/Screen and can help you design and do customized Touch Panel.Q2. How long could I get the reply of my inquiry?Answer: Buyers will receive a answer within 12 hours.Q3. What is the delivery time?Answer: For samples:15-20 days after getting the sample fee (Professional Custom-made) For cargo:25-30 days after the receipt of funds.Q4. What is the payment term?Answer: T/T, Paypal and Western union etc. For samples: payment in advance.For mass production: 50% deposit and 50% balance before shipmentQ5. How do you control the quality of the items?Answer: Each product will be strictly tested one by one before shipping out.Q6. How long is the warranty?Answer: Generally the warranty period is one year. It depends on different products.Q7. How is after sales service?Answer: Our sales & engineer will provide the sustained support, guidance of techniqueQ8. What method of packaging do you use?Answer: The packing with anti-static bag+ bubble bag +foam box +strong outer carton.Q9. What kind of the transportation do you offer?Answer: For small order & quantity, the goods will be shipped by the express like DHL, TNT, Fedex, UPS,EMS with customers own account.For cargo with the large packing, Adopting Air or sea and freight collect also from the buyer.
