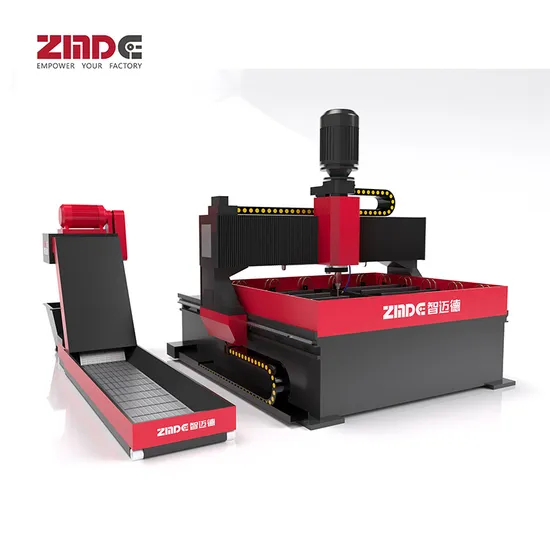

Heavy Duty Industrial Metal Drilling Machine for Precision Tasks

Product Description

ZMDE Industrial Metal Processing Heavy Duty Drilling Machine High Precision
------------------------------------------
>Cost-effective Equipment <
1. Crafted from robust materials, this equipment boasts a low failure rate, significantly reducing maintenance costs. All critical components-including ball screws, linear guide vices, hydraulic parts, electrical parts, servo motors, and frequency converters-are sourced from renowned industry brands.
2. The CRT display facilitates automatic chip removal, saving valuable time and cost associated with manual cleaning.
3. Engineered for high precision, the equipment ensures a high qualification rate of workpieces, thereby reducing consumable costs.
>Simple Operation, High Productivity <
1. The intuitive human-machine interface is clear and visual, capable of generating automatic machining programs effortlessly.
2. CNC and PLC control systems ensure accurate positioning for every job.
3. Hydraulic clamps secure workpieces, which operators can control via a foot switch, making the process convenient and labor-saving.
4. Twelve fast hydraulic clamps distributed around the table allow for simultaneous clamping of four groups of workpieces.
5. Small workpieces can be clamped at the four corners of the working table, significantly shortening the production preparation cycle and boosting efficiency.
6. Small workpieces can be clamped at the four corners of the table, significantly reducing the production preparation period and enhancing efficiency.

> Guaranteed Quality, Wide Range of Applications <
1. Key components such as the gantry, column, and table are made from solid materials, with the main machine weighing up to 6300kg.
2. Versatile across multiple industries, this machine is integral for connecting plate processing.
3. Broad range of drilling diameters, ranging from 12mm to 50mm.
> Suitable for Various Production Scenarios <
1. Ideal for continuous production of multiple batches of single flat type workpieces.
2. Capable of handling small batch production of various workpiece species, including rectangular, round flanges, and polygonal plates. It can also process two or four different specifications of plates simultaneously.
3. Efficiently produces multiple layers of thinner sheets, stacking up to 100mm drilled holes.
4. The upper computer software auto-processes start and end points, allowing for drilling through holes, blind holes, step holes, and hole-end chamfers.
> Production Process Automation <
1. Integrated line board for a high degree of automation, with automatic positioning based on the drilling program.
2. Automatically adjusts the optimal feeding volume according to different hole diameters.
3. Allows for automatic and continuous processing of large hole diameters, achieving one-time processing and molding.
4. Features an automatic chip removal function for enhanced efficiency.
Technical Parameters

Machine Configuration
High Precision CNC Radial Drill for H-Beam Processing
Model.		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Width (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1pc
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW

Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
