Full Inverter Swimming Pool Heat Pump Pompe a Chaleur Pour Piscine

Product Description

Product Description

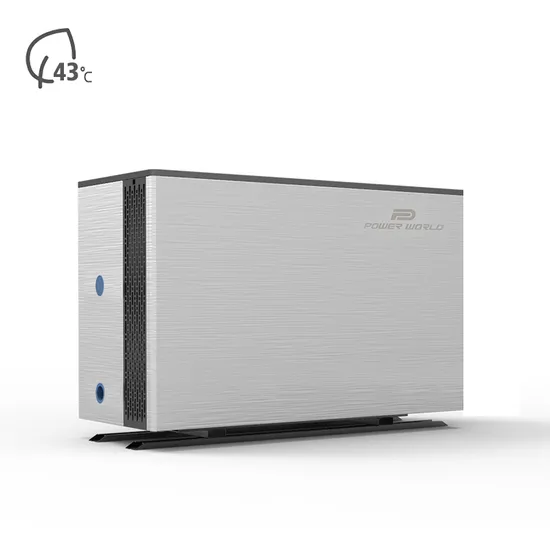

PATENT DESIGNPatented unique design Quiet series inverter pool heat pump with square structure design with curved corners and without any screws. The new air inlet and air outlet adopt symmetrical design, special installation foot design, the shell is made of
anti-corrosion sheet metal material, strong and durable. SUPER SILENCEThanks to patented silent-design, Quiet series inverter pool heat pump makes a quieter swimming environment and friendly
neighborhood for you. The sound level is only 40dB. Save Energy and Speed up Heating TimeWith short heating time, users don't need to wait for a long time to enjoy swimming. In the meanwhile, it saves more energy than ON/OFF heat pump and non Full inverter heat pump.

Product Parameters

Model	PW010-KZXYC-B	PW015-KZXYC-B	PW020-KZXYC-B	PW030-KZXYC-B	PW040-KZXYC-B	PW050-KZXYC-B
Advised pool volume (m3)	15~30	20~40	25~50	30~60	40~75	55~100
Operating air temperature (ºC)	-7 ~43
Performance Condition: Air 27°C, Water 26°C, Humidity 80%
Heating capacity (kW)	7.50~1.92	9.50~2.10	11.00~2.50	14.00~3.15	17.00~3.75	20.00~4.00
Heating Capacity(Btu)	25500~6528	32300~7140	37400~8500	47600~10710	57800~13090	68000~13600
Consumed power (kW)	1.15~0.13	1.46~0.14	1.83~0.17	2.15~0.21	2.62~0.25	3.33~0.27
COP	6.5~14.8	6.5~15.0	6.0~14.7	6.5~15.0	6.5~15.0	6.0~14.8
COP at 50% capacity	10.50	11.00	11.00	10.50	11.00	11.00
Performance Condition: Air 15°C, Water 26°C, Humidity 70%
Heating capacity (kW)	5.80~1.42	7.2~1.50	8.5~1.65	10.7~2.40	13.0~2.65	15.6~2.85
Heating Capacity(Btu)	19720~4828	24480~5100	28900~5610	36380~8160	44200~9010	53040~9690
Consumed power (kW)	1.15~0.20	1.43~0.21	1.77~0.23	2.12~0.34	2.58~0.36	3.25~0.40
COP	5.0~7.1	5.0~7.2	4.8~7.2	5.0~7.1	5.0~7.4	4.8~7.0
COP at 50% capacity	6.50	6.50	6.50	6.50	6.50	6.50
Performance Condition: Air 35ºC,Water 28ºC, Humidity 80%
Cooling capacity (kW)	4.0	5.2	6.0	7.2	8.6	10.1
Sound pressure at 1m dB(A)	38~48	38~48	40~50	42~51	43~52	43~53
Sound pressure of 50% capacity at 1m dB(A)	40	40	41	43	44	44
Sound pressure at 10m dB(A)	18~25	18~25	19~26	22~27	23~30	24~31
Heat exchanger	Spiral titanium tube in PVC
Casing	Metal Casing
Power supply	230V/1 Ph/50Hz
Water Connection (mm)	Φ50
Rated input current at air 15ºC(A)	5.1~0.9	6.3~0.9	7.8~1.0	9.3~1.5	11.3~1.6	14.3~1.8
Advised water flux (m³/h)	2~4	2~4	3~5	4~6	6~9	8~10
Water Pressure Drop (max) kPa	2	3	4	5	5	6
Net weight/Gross weight(kg)	62/70	62/70	64/72	77/87	81/91	81/91
Carton size(mm)	980*402*636			1107*503*760
Refrigerant consumption(g)	350g	440g	450g	550g	750g	800g
