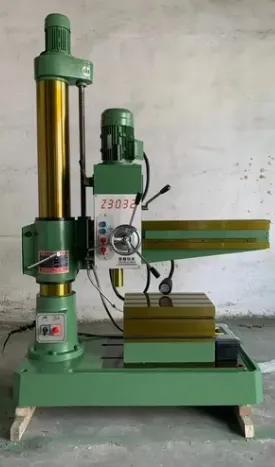

Universal Radial Drilling Machine Z3032X10 High Precision CE Radial Drill Machine

Product Description

Universal Radial Drilling Machine Z3032X10 High Precision Ce Radial Drill Machine
Product Description
Product description:
1. Appearance beautiful appearance, the overall layout of symmetry and coordination.
2. Adopt mechanical drive, mechanical clamping, mechanical speed change operation is simple.
3. Guide rail after ultra high frequency quenching.
4. Reliable structure, excellent manufacturing, to ensure the accuracy of the machine tool.
5. To increase the machining range of drilling, boring, tapping, threading, countersink flat, drilling, reaming and reaming functions, such as, widely used in large, medium and small enterprises, villages and towns and individual industrial machining.
Main technical parameters:

Specifications	Units	Z3032×10
Max. drilling diameter	mm	Φ32
Distance spindle nose and working surface of base	mm	320-1080
Distance from spindle axis to column surface	mm	270-885
Column diameter	mm	200
Worktable size	mm	475x330x295
Spindle travel	mm	150
Spindle taper		MT4
Spindle speeds range	r/min	65-1000(6 steps)
Spindle feeding range	mm/r	0.10 0.16 0.25(3 steps)
Rocker rotary angle	°	+ 90°
Main motor power	kw	1.5/2.2
Lifting motor power	kw	0.75
Net weight	kg	1080
Overall dimensions(L×W×H)	mm	1400×640×2150

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
