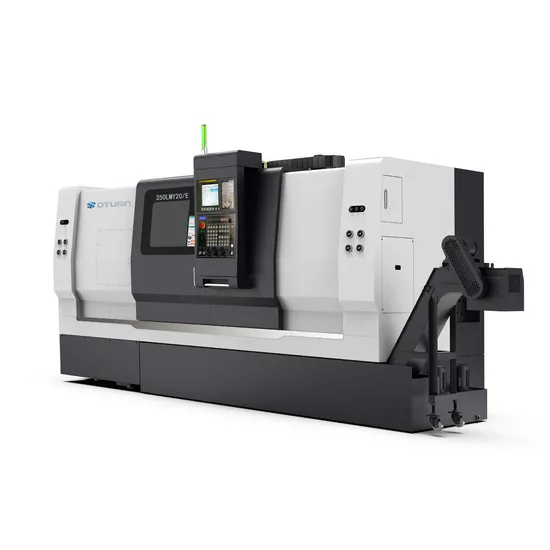

Oturncnc OEM/ODM High-Speed CNC Lathe Machine CNC Turning Center

Product Description

Product Description
Our advanced High-Speed CNC Lathe Machine boasts a meticulously engineered 30-degree inclined bed that offers unparalleled precision, exceptional rigidity, and outstanding cutting stability. Constructed from high-strength HT300 cast iron, the robust lathe bed undergoes finite element analysis and stress relief treatment, ensuring supreme mechanical rigidity and long-term accuracy. This powerful design not only enhances processing stability and tool lifespan but also maintains reliable accuracy over extended periods. The high-strength hard rail structure, combined with a screw pre-tension transmission system, dramatically boosts rigidity performance.
Equipped with hard rail guides and heat-treated, precision-ground ball screws, our machine tool guarantees optimal accuracy and exceptional durability. Each axis features a direct transfer structure and a double-anchor pre-relay configuration, minimizing thermal displacement and significantly improving processing precision.
Product Parameters

Item	Unit	TY250LMY20/E
Max. swing diameter over bed	mm	Φ800
Max. processing diameter	mm	Φ540
Max. processing diameter on tool holder	mm	Φ540
Max. processing length	mm	1940
Spindle nose	type	A2-11
Max. Spindle speed	rpm	2500
Cylinder/Chuck	lnch	12″
Spindle bore diameter	mm	Φ117
Bar diameter	mm	Φ102
Spindle motor power	kw	15/18.5
Motor torque220-272 Spindle motor power1:2	Nm	440-544
X/Z axis limit travel	mm	310/2000/120±60
X/Z axis guide rail specifications	/	Hard rail
X/Z axis motor torque	Nm	22/22
X/Z/Y axis motor power	kw	3.0/3.0/1.8
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
X/Z/Y axis rapid movement	m/min	18/18/8
Powered tool turret type	pcs	BMT65
Power turret power	KW	7.5
Max. speed of driven tool holder	rpm	6000
Outside diameter tool holder specifications	mm	25X25
Inner diameter tool holder specifications	mm	Φ50
Adjacent tool change time	sec	0.2
Hydraulic tailstock	/	Hydraulic tailstock
Max. travel of tailstock	mm	1700
Tailstock sleeve tapered hole	type	Mohs5#
Tailstock sleeve diameter	mm	Ф100
Sleeve stroke	mm	80
Machine size	mm	5450*2270*2150
Machine Weight	kg	7900
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40L
Hydraulic oil pump motor power	kw	1.5
Lubricating oil tank volume	L	2
Automatic lubrication pump motor power	W	50
Cooling water pump power	W	750

Products Configurations
Company Profile

Quality Control
Our Advantages
FAQ
Q1: How can I choose the most suitable machines?
Please provide your specifications, and we will select the optimal model for your needs. Alternatively, if you have a specific model in mind, feel free to indicate it. You can also send us your product drawings, and we will recommend the most suitable machine for you.
Q2: What are the main products of your company?
We specialize in a wide range of machines, including CNC Lathe Machines, CNC Milling Machines, CNC Turning Machines, Vertical Machining Centers, Horizontal Machining Centers, Lathe Machines, and Turning and Milling Composite Processing Machines, among others.
Q3: Where is your factory located? How can I visit?
Our five factories are strategically located in Guangzhou, Quzhou, Ningbo, and Guangdong. We warmly welcome you to visit us at any of these locations.
Q4. How do you handle transportation?
We provide comprehensive transportation solutions, including DDP, CIF, FOB, and FCA options.
Q5: What are the Payment Terms?
Our payment terms are T/T, with a 30% initial payment due upon order and the remaining 70% balance due before shipment.
Q6: What is the Minimum Order Quantity (MoQ)?
A: The minimum order quantity is 1 set, although some low-cost machines may require a larger order.
We want to know:
1. We strongly recommend providing the size and material of your workpiece for our evaluation. If possible, please send us a drawing of the workpiece so we can recommend the most suitable model for you.
2. If you require a CIF price, kindly specify the port of destination.
