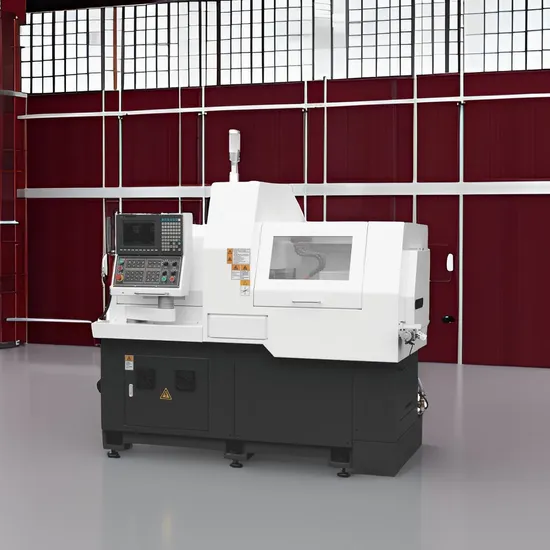

China Swiss Style Machining Tool Swiss Lathe Design Swiss CNC Machine (BL-CSL205/265)
| US$39,000.00-41,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
BL-CSL205/265
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Multil Tools
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Machineable Bar Dia.
20/25mm
Main Spindle Bore
25/27mm
Max. Machineable Length
200mm
Max. Face Drilling Dia.
10mm
Max. Face Tapping Dia.
M8
Main Spindle Max Speed
8000rpm
O.D. Tool
6 Position 12*12mm
Main Spindle Side Axial Drilling Tool(Fi
4 Position Er16
Main Spindle Side Radial Type Live Tool
2 Position Er11+2 Position Er16
Back Spindle Side Back Drilling Tool(Fix
4 Position Er16
Transport Package
Wooden Case
Specification
Max. bar through dia.: 20/25mm
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
SWISS-TYPE AUTOMATIC LATHE CSL PRECISE SERIES
BL-CSL205/265
TAIWAN technology, dual spindle,5 axes
- Dual spindle,total 5 axes
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
- Adopt high precision built-in electro-spindle,NSK super high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention,spindle flop≤2μm
- Adopt JAPAN THK brand high precision ball screw and linear guideway
- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized,precise,slender axles workpiece machining
| Item | Unit | BL-CSL205 | BL-CSL265 | |
| Max. machineable bar dia. | mm | Φ20 | Φ25 | |
| Main spindle bore | mm | Φ25 | Φ27 | |
| Max. machineable length | Fixed guide bushing | mm | 200 | |
| Rotary guide bushing | mm | 180(one time feed) | ||
| Guide bushless | mm | 50 | ||
| Max. face drilling dia. | mm | Φ10 | ||
| Max. face tapping dia. | mm | M8 | ||
| Main spindle max speed | rpm | 8000 | ||
| Main spindle motor | kw | 4.2 | ||
| Main spindle index | / | C axes(continuation) | ||
| Back spindle max speed | rpm | 8000 | ||
| Back spindle motor | kw | 3.1 | ||
| Back spindle index | / | C axes(continuation) | ||
| Radial type live tool max speed | rpm | 5000 | ||
| Rapid moving speed(X1/Y1/Z1/X2/Z2) | m/min | 20/24/24/24/24 | ||
| Repeat positioning accuracy | mm | ≤0.003 | ||
| O.D. tool | mm | 6 position 12*12 | ||
| Main spindle side axial drilling tool(fixed type) | mm | 4 position ER16 | ||
| Main spindle side radial type live tool | mm | 2 position ER11+2 position ER16 | ||
| Back spindle side back drilling tool(fixed type) | mm | 4 position ER16 | ||
| Coolant pump | kw | 0.46 | ||
| Overall size | mm | 2300×1300×1750 | ||
| N.W. | kg | 2500 | 2600 | |
Main parts list:
| Item | Brand |
| CNC controller | TAIWAN-SYNTEC |
| Servo electro-spindle | TAIWAN |
| Servo motor&driver | TAIWAN-SYNTEC |
| Spindle encoder | TAIWAN-SYNTEC |
| Spindle bearing | JAPAN-NSK/NTN P4 class |
| Ball screw bearing | JAPAN-NSK/NACHI |
| Ball screw | TAIWAN HIWIN/JAPAN-THK |
| Linear guideway | TAIWAN HIWIN/JAPAN-THK |
| Lubrication system | JAPAN-HERG |
| Main electricity parts | FRANCE-SCHNEIDER |
| Pneumatic parts | TAWAN-AIRTAC |
| Lock nuts | TAIWAN-YINSH |
| Shaft coupling | GERMANY-KTR |
Standard configuration:
- SYNTEC 220TB CNC controller
- Rotary guide bushing
- Dual spindle
- Parts catcher& convey belt
Optional configuration:
- High pressure coolant system
- Oil mist collection system
- Angular live tool
- Automatic chip conveyor
- Automatic bar feeder
