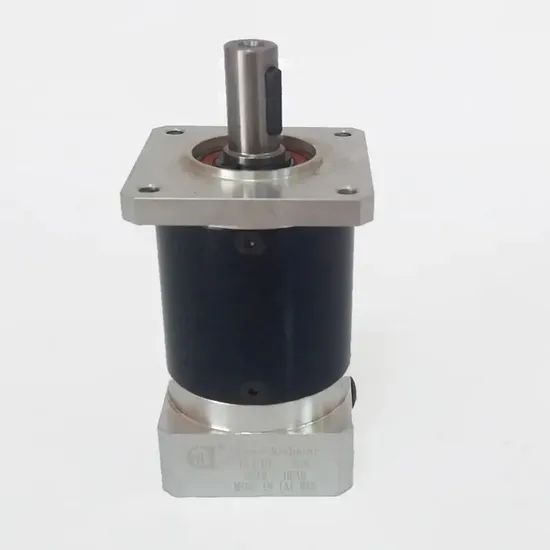

High Output Torque Precision Planetary Reducer for CNC Machine Tool

Product Description

High precision PLF PLE series Planetary Gearbox for 60 80 110 flange Servo Motor

Product name	Precision Planetary Reducer
Model No.	AB42-AB220
Layout form	Planetary structure
Speed ratio	3-512
Output torque	20-1500N.M
Power	50W~30KW
Input speed	0~4000RPM
Output speed	0~1300RPM
Output type	Shaft type
Installation	Flange mounting

Description of planetary gearbox:es: PLE, PLF
2) Gearbox outline dimension: 60, 80, 90,120, 160
3) Reduction ratio: 3, 4, 5, 7, 10, 9, 12, 16, 20, 28, 35, 40, 50,64, 70, 80, 100, 125, 140, 175,200, 250, 350, 400,500,700,1000.
4) Lubrication: Lifetime lubrication
5) Input speed: 3000- 8000rpm
6) Life: >20, 000 hours
7) Backlash: Stage 1: <10(arcmin)
Stage 2: <15(arcmin)
Stage 3: <22 (arcmin)
8) Operating temperature: -25°C to +90°CLow backlash Planetary Gearbox for ECMA Delta Servo Motor Main Features:1. low backlash
2. high output torque-the industry's highest torque density
3. balanced motor pinion
4. high efficiency(up to 98%)
5. ratio 3:1 to 1000:1
6. low noise
7. operable in any mounting positions
8. lifetime lubricationDetailed ImageParametersPLE planetary gearbox for servo motor

Model	PLE /PLF SERIES
Model	PLE /PLF 60, 80, 90, 120, 160
4 optional sizes	60mm, 90mm, 120mm, 160mm
Rated Torque	8.5N.m-680N.m
Gear Ratio One-stage	3, 4, 5, 7, 10
Gear Ratio Two-stage	12, 16, 20, 25, 28, 35, 40, 50, 70
Gear Ratio Three-stage	80, 100, 125, 140, 175, 200, 250, 280, 350

Note : It's just the typical technical data for you reference, The specification such as voltage, speed, torque, shaft ,speed ratio can customized.Product Overview
PRODUCT SPECIFICATPLE series spur gear planetary gear motor
Product application scenarios
Product DescriptionPrecision planetary gear reducer is another name for planetary gear reducer in the industry. Its main transmission structure is planetary gear, sun gear and inner gear ring.
Compared with other gear reducers, precision planetary gear reducers have the characteristics of high rigidity, high precision (single stage can achieve less than 1 point), high transmission efficiency (single stage can achieve 97% - 98%), high torque/volume ratio, lifelong maintenance-free, etc. Most of them are installed on stepper motor and servo motor to reduce speed, improve torque and match inertia.
