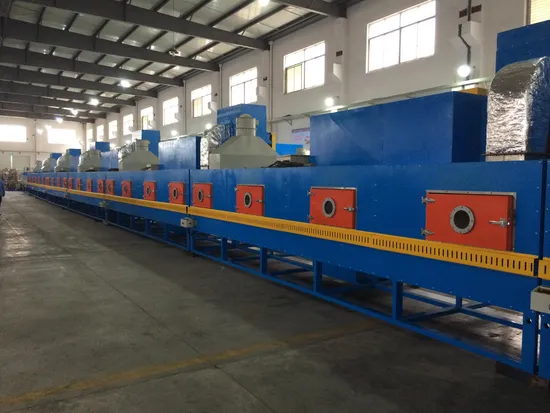

EPDM Sponge Pipe Extrusion Vulcanization Production Line
| US$85,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XJW-150 20D
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Type
Rubber Extruder
Model Number
Bne150-01-00
Screw Diameter
150mm
Color
Based on Customer Demand
Dimension(L*W*H)
4200(L)×1600 (W)×1500(H)mm
Weight
6500kgs
Power
160kw
L/D
20:1
Vacuum System
Yes
Screw Speed
0-45
Gear Reducer
18.5:1
Capacity
1000kg/Hour
Place of Origin
Zhejiang, China (Mainland)
Transport Package
Wooden Pallet
Specification
150mm
Trademark
ZHEJIANG BAINA
Origin
Taizhou
HS Code
8477209000
Production Capacity
10 Set/Sets Per Month
Product Description
Rubber extrusion vulcanization machine for insulation sheet and pipe product, yoga mat, rubber foam product.
Various types of basic parameters:
| Item | Diameter of screw(mm) | L/D ratio | Speed of screw(r/min) | Driving power(kw) | Max output of production (kg/h) | Weight(kg) |
| 150mm 20D (vacuum) | 150 | 20: 1 | 0-45 | 160 | 1000 | 6500 |
| 150mm 16D | 150 | 16: 1 | 0-45 | 132 | 800 | 6500 |
| 120mm 20D (vacuum) | 120 | 20: 1 | 0-50 | 110 | 700 | 5200 |
| 120mm 16D | 120 | 16: 1 | 0-50 | 110 | 600 | 5200 |
| 90mm 20D (vacuum) | 90 | 20: 1 | 0-55 | 55 | 320 | 3200 |
| 90mm 16D | 90 | 16: 1 | 0-55 | 55 | 280 | 3200 |
| 75mm 20D (vacuum) | 75 | 20: 1 | 0-55 | 37 | 160 | 1200 |
| 75mm 16D | 75 | 16: 1 | 0-55 | 37 | 140 | 1200 |
| 50mm 12D | 50 | 12: 1 | 2-70 | 7.5 | 50 | 600 |
Order Guide:
1. Ship date: 30----120 working days
2. Payment terms: T/T or L/C
3. Full range of devices to be provided on schedule, as per client demands.
4. Responsible for training technicians and operators for operation and maintenance of the equipment.
5. Responsible for installing and debugging all devices.
6. Formula available and long term technical supports.
7. Guarantee: One year guaranteed repair and lifelong tracking service, with parts provided.
8. All the parameters of the machine on metric units and in English.
9. Package: Standard export wooden pallet.
