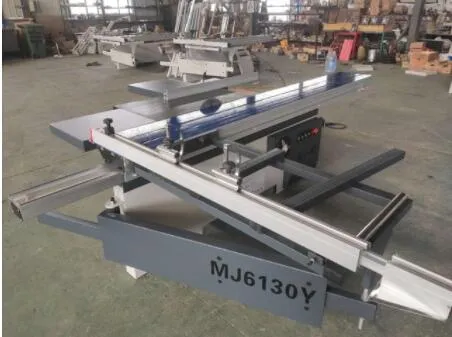

Sliding Industrial Panel Table Saw Machine Precision Panel Saw

Product Description

SlidingTable Saw Specification

Dimensions sliding table	3200× 370mm
Gross cut capacity	3200mm
Width of cut between saw blade and rip fence	1250mm
Saw blade φ	300mm(φ 250-φ 350)
Height of cut φ 300mm	80mm
Height of cut with saw blade at 45°	55mm
Speed of main saw blade	4000/6000rpm
Spindle diameter	30mm
Tilling saw blade	0-45°
Main motor	4kw
Scoring saw blade	120mm

Production
A smoothly running saw blade, a smooth and precise guidance of the sliding table and a precision rip fence; all fundamental features that woodworkers see as the most important aspects of a high-quality sliding table saw.

A	Main Table	Main working table
B	Extension Table	Extension working table
C	Dust Guard	Not only reduce dust produced by chips while cutting, but also warning the operator where the saw-blade position.
D	Rip Fence	Reference positioning while ripping
E	Hand Swage	To press the workpiece on the sliding table
F	Miter Fence	Reference positioning while 0-45° cutting
G	Sliding Table	Table for main feeding while cutting
H	Oiler	To oil for the inner structure
I	Controlling Panel	Control the machines running,indication, stop,lifting etc.
J	Hand Wheel for Mail Saw Tilting	To adjust main saw tilting 0-45°
K	Cross Cut Table	Used to put the workpiece while cross cutting
L	Cross Cut Fence	To position the size of the movable positioning board
M	Movable Positioning Stops	To position while cross cutting

Application
Sliding Saw machine is mainly used for cutting sheets into sized parts.It is easy to cut plywood and melamine sheets into cabinet components.Our sliding table saw is applied to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, solid wood and others wood.
Related products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Our Services 1. Delivery and Lead time Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation. Machine will be tidy and clean , with anti rusty oil brushed on mechanical parts to prevent rusty on sea transportation. A series pictures and videos will provided as machine finished for help customer understand the performance of the machine. 2.Warranty: Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time. 3. Technical support: Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time. 4.After sale service: Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed). The video for operation will provide. Training at our workshop or on site is available.After sale-service 5.We accept the ODM,OEM
Company Profile Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine, Vacuum forming machine, Laser engraving and cutting machine, etc.


After nearly 10 years of development, the company has a perfect technical team, clear labor division, ensuring the high quality products sent to the whole country, to the world. We offer our customers best solutions, including product design, installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive.
