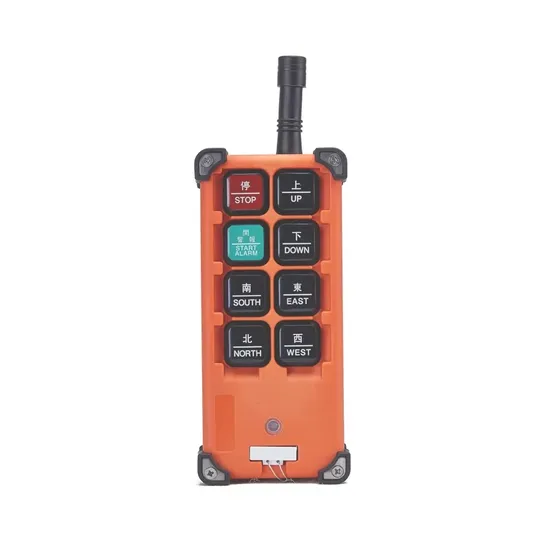

Telecrane RC A21-E1b 6 Single Speed Remote Control Controller
Basic Info.
Model NO.
A21-E1B
Certification
CE, FCC, ISO9001, RoHS
Code Type
Fixed Code, Learning Code
Color
Yellow
Encode Mode
NEC
Frequency
433MHz
Material
Plastic
Type
Button
Universal
Universal
Voltage
12V, 12-24V, 36V, 220V, 48V,380V
Control Distance
100m
Transport Package
Cartoon
Specification
33*21*17CM
Trademark
Telecrane
Origin
China
HS Code
8526920090
Production Capacity
50000PCS/Year
Product Description
Telecrane A21-E1B F21-E1B Radio Industrial Remote ControlDifferent color can be customzied with MOQ 1000pcs; 12V, 24-48V, 110V, 220V, 380V are available.
Product specification:1.Have 7 function keys (6 single speed buttons + 1 start button ).
2. Control contact is up to 8.
3. With mushroom head rotation scram button
4. With battery voltage warning device, the power supply is cut off during low power.
| A21 F21-E1B Transmitter Parameters | |||||||
| Material | Glass-Fiber PA | ||||||
| Enclosure protection class | IP65 | ||||||
| Frequency range | UHF:425-446 MHz | ||||||
| Transmitter power | ≤10dBm | ||||||
| Transmitter power supply | 2 AA alkaline batteries (not included) | ||||||
| Safety code | 32 bits (4.3billion) | ||||||
| Temperature range | -40ºC-+85ºC | ||||||
| Control distance | up to 100 meters (it is available to customized long distance up to 200m) | ||||||
| Size | 156x61x51mm | ||||||
| Weight | 255g (without battery) | ||||||
| A21 F21-RXC Receiver Parameters | |||||||
| Material | Glass-Fiber PA | ||||||
| Enclosure protection class | IP65 | ||||||
| Frequency range | UHF:425-446 MHz | ||||||
| Receiver sensitivity | -110dBm | ||||||
| Receiver power supply | 12V, 48V, 220V, 380V(optional) | ||||||
| Safety code | 32 bits (4.3billion) | ||||||
| Temperature range | -40ºC-+85ºC | ||||||
| Cable length | 1.65m (Other length can be customized) | ||||||
| Output contactor capacity | 8A sealed relay output (with AC 250V/10A relays, 10A fuse) | ||||||
| Size | 205x86x80mm | ||||||
| Weight | 620g | ||||||
