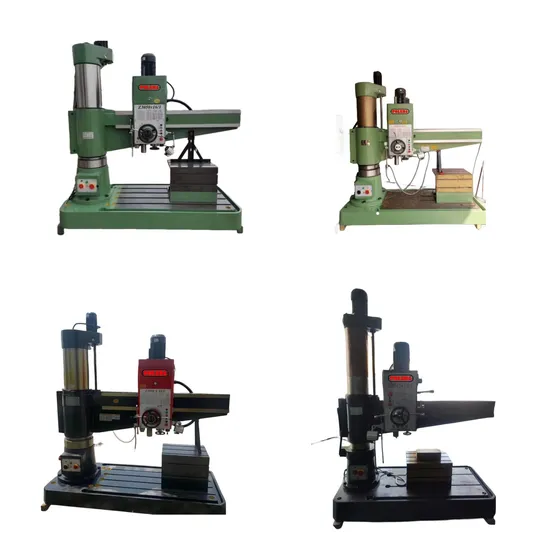

Z3050 Hydraulic Radial Drilling Machine with High Precision and High Quality

Product Description

Product Description
Rocker Arm Drill Product Introduction
The radial drilling machine is a versatile marvel in hole processing equipment, engineered to excel in various operations such as drilling, reaming, tapping, and face trimming. This indispensable machine is particularly adept at handling porous large parts in both single and mass production environments, making it a staple in general machining workshops. The radial drilling machine's exceptional features include:
Structural Features: Designed for supreme adaptability, the rocker arm can rotate and lift around the column, while the spindle box glides smoothly for horizontal movement along the arm. This innovative construction ensures unparalleled convenience, operational flexibility, and a broad application range, especially when working with large, heavy workpieces.
Classification: Based on the clamping structure, radial drilling machines are categorized into hydraulic and mechanical types. Moreover, varying drilling sizes and mechanical principles lead to further subdivision into numerous models and specifications, catering to diverse processing requirements and demands.
Technical Parameters: Key technical parameters of the radial drilling machine encompass its maximum drilling diameter, the critical distances between the main shaft and the column, as well as the main shaft end face and the working table. Also, the rotating speed of the main shaft plays a vital role. Together, these parameters define the machine's machining capacity and operational efficiency, ensuring top-tier performance.
Safety Performance: The radial drilling machine is equipped with meticulously designed safety measures, including a spindle cutting overload protection device, spindle travel limit switch, and a lifting screw safety nut. These features are integral to ensuring safe and secure operation at all times.
Application: This versatile machine is indispensable in the machining world, proficiently handling a wide array of tasks, including drilling, reaming, countersinking, tapping, and boring. Its comprehensive application scope makes it a critical asset in machining and production sectors.
Operation and Maintenance: Featuring both manual and numerical control operation modes, radial drilling machines utilize mechanical and hydraulic transmission systems. To maintain peak machine performance and prolong its service life, conscientious operation and regular maintenance are crucial.
In summary, the radial drilling machine stands as a multifunctional, efficient, and safe powerhouse in hole processing equipment. Ideal for machining and producing various metal parts, it remains a vital component in any modern machining workshop, enhancing productivity and precision.
Product Parameters
Rocker Arm Drill Product Performance
The radial drilling machine represents a groundbreaking series of multifunctional products with superior performance features. It is designed for safe and reliable use, offering convenience, easy maintenance, high precision, excellent rigidity, and a long service life. Utilizing hydraulic primary variable speed mechanisms, it minimizes auxiliary time and allows handle-controlled spindle operations for smooth and efficient manipulation. The hydraulic-driven diamond block clamping mechanism ensures unwavering reliability in the spindle box, rocker arm, and column components. Additional features include quenched surfaces for sustained accuracy and extended longevity, complemented by comprehensive safety and external column protection devices, securing safe operation.
Classified by the machine tool clamping structure, radial drilling machines come in hydraulic and mechanical variants. Renowned for convenient and dexterous operation, the hydraulic radial drilling machine excels across a wide application range. It is especially effective for single or large-scale porous parts production, solidifying its status as a common and essential tool in general machining workshops.

Product Name	Radial drill	Radial drill	Radial drill
Product model	3040*13/16	3032	Z3050*13/16
Maximum diameter of hole	casting40/Steel part35mm	casting32/Steel part27mm	casting50/Steel part45mm
Distance from spindle end face to table	430-1210mm	360-1050mm	360-1300mm
Distance from spindle center to column busbar	300-1100mm	260-1050mm	260-1050mm
Spindle travel	220mm	120mm	220mm
Main shaft hole cone	4Mohs	4Mohs	4Mohs
Spindle speed range	34.78.145..75130.560.260.430.920.380.760.1280rpm		34.78.145..75130.560.260.430.920.380.760.1280rpm
Spindle speed class speed	12	6	12
Spindle feed range	0.10-0.25rpm	0.10-0.25rpm	0.10-0.25rpm
Spindle feed series	3	3	3
Swing arm rotation Angle	Plus or minus 180 degrees	Plus or minus 180 degrees	Plus or minus 180 degrees
motor power	2.2kw	1.5kw	4kw
Machine weight	1400kg	9600kg	2400kg
Overall dimension	1500*705*2020mm	1350*705*1880mm	1950*810*2450mm
