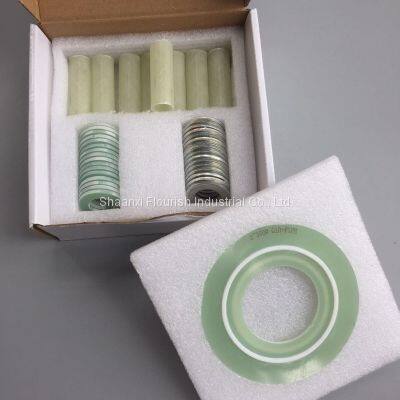

Zinc Plated Spiral Wound Gasket Phenolic Flange Insulation Gasket Kit

Product Details

Product Description

Product Description
Material:Surface:Delivery Time:Product Name:Application:Type:High Light:

G10+PTFE/G10/G10/ZPS	Zinc Plated For Steel Washer
Normally In 10-25 Days	Flange Insulation Kit
Flange Joints Sealing	Type E
Zinc Plated Spiral Wound Gasket, MOC Spiral Wound Gasket, G10 Spiral Wound Gasket

Factory produced Flange Insulation gasket kit Metal Gasket Ring Spiral Wound Gasket for Steel Flange
Neoprene Faced Plain Phenolic Flange Insulation Gasket Kit
Details:
Neoprene Faced Plain Phenolic Flange Insulation Gasket Kit have been used as standard ''flat'' isolating gaskets in the oil and gas
industries for many years. Soft neoprene rubber sheets are factory applied to both sides of a laminated phenolic retainer providing
an effective sealing surface. The temperature limit of these gaskets is approximately +175o F. (+80o C.)
Gasket Type:
Type E (Full Face Gasket)This gasket kit provides complete protection of both flange faces. The gasket has same outside diameter of
flanges. This feature will prevent collection of foreign matter between the flange faces to ensure complete cathodic isolation.
Type F (Ring Gasket)
This gasket is manufactured to fit only the raised face surface of the flanges. Outside diameter of the gasket is designed to be slightly less
than the inside diameter of the bolt circle. It is recommended that the flanges be wrapped to prevent foreign material from "shorting out"
the flanges.

Item	Insulation Material		Material of Insulation Gasket	Max. Temp.(℃)	Insulation Resistance(Ω)
	Sleeve	Washer		Pressure Class (lb)
General			PTFE Solid Gasket	-100～100	Over 2.0 x 1013
				150
			Reinforced PTFE Gasket	-200～200	1.3 x 1011
				300
			Neoprene Faced Phenolic Gasket	-30～120	RUBBER	CR 1.6 x 107
	PTFE			150
	Epoxy	Epoxy	Glass Reinforced Epoxy Plate Gasket with Rubber O-Ring	-40～150		EPDM 2.0 x 1013
	Phenolic	Phenolic		600
			Reinforced Phenolic Plate Gasket with Rubber O-ring	-40～150		VITON 9.7 x 109
				600
			Reinforced Phenolic Plate Gasket with Rubber O-ring	-60～150		NBR 1.3 x 1011
				600
High Pressure	Mica	Mica	Epoxy Faced Metal Plate with Rubber O-ring	150		-
	PTFE	Epoxy		1500
	Epoxy	Phenolic	Epoxy faced Metal Plate with PTFE Seal	150	Over 2.0 x 1013
	Phenolic			2500
High Temp & Pressure	Mica	Mica	KAMMPROFILE Gasket with STARPITE	1000	9.9 ｘ 1010
