Sumore CE Approved Made in Shanghai China 5 Axis CNC Machine Metal

Product Description

Product Description

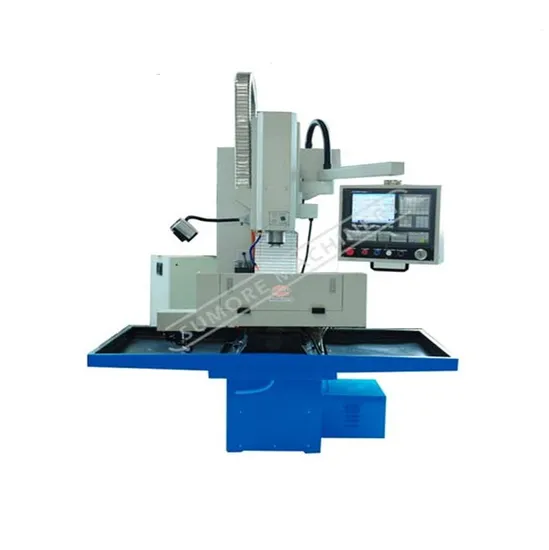

Hot !! 3 Axis Small Metal CNC Milling Machine SP2211-T
Quick details:
Table size : 800x240mm
Speed: 6000rpm
Spindle taper: BT30
The worktable can be 900x240mm (optional )
GSK, SIEMENS or FANUC control system or customized
----------------------------------
Product Description
Machine operating system for SIEMENS808DA or GSK218M system that can control three axes: X, Y, Z-axis linear interpolation. rectangular plastic coated rail rigidity, abrasion resistance, high stability, high load capacity. Column and guide way is ground precisely with high precision CNC control system could be adapted by step motor or servo motor, providing good cost-effective scheme to customers. Machine stand and machine body are designed separately for easy and flexible installment by the user. The high speed, high precision, high rigidity spindle unit Easy work with big work table Can be customized according to customer requirements of the corresponding products The high accuracy pitch compensation, the drive shaft adopts high precision laser measuring instrument compensation make each axis positioning accuracy is more accurate, more suitable for processing high precision parts and mold manufacturing The X, Y, Z axis precision hard rail quenching, enhanced the guide way rigidity and wear-resisting degree. Semi-protection Metal Sheet Shield Three Axial Lead Screw Automatic Centralized Lubrication ----------------------------------
Product Parameters

Model	SP2211-T
Spindle taper	BT30
Table size	800×240mm (optional 900x240mm)
X/Y/Z travel	430/280/400mm (optional 530/280/400mm)
Spindle motor	3.7kw
Spindle speed	8000rpm
T slot (amount×width×distance)	3×16mm×60mm
Max. load on table	60kg
Spindle nose to table	60-460mm
Spindle center to column	297mm
Spindle motor	2.2kw
X/Y/Z feed motor	1/1/1kw
X/Y/Z rapid feed	6m/min
Feed speed	0-2m/min
Tool loose and clamping	Pneumatically
Max load of tool	3.5kg
Packing size	1600x1200x2000mm
Net/Gross weight	950/1050kgs

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
