Multifunctional Stone Block Bridge Saw Cutting 5 Axis Bridge Saw CNC 5axis Bridge Stone Cutting Head Machine with 360dgree Rotation Bridge Saw Cutter Gee450-4X

Product Description

5-Axis Bridge Saw
Application and advantages for bridge saw cutting machine of stone machine: China fine STONE cnc router granite bridge saw/stone engraving machine ,Bridge Cutter is ideal and special equipment for stone processing factory, especially widely used in cutting big size plates such as granite, marble, artificial marble and concrete plate etc..
Adopted laser device positioning system and CPU controlling system, with reliable function, precise cutting and easy operation, this equipment carries out high efficient cutting by slow cutting and quick return. That is 5 AXIS BRIDGE SAW MACHINE We have absolute price advantage in North American market.In order to satisfy the
market diversity requirement,GEE researched full automatical CNC processing machine--5 AXIS bridge cutting machine. It's a gospel
for stone processing enterprises.Functions of 5 AXIS bridge cutting machine included: all kinds of stone lines design, arc-edge,
French edge, straight edge, bevel edge, abnormity edge, antiskid slot, dry-hang, wash basin processing and so on. "Multifunction,
Cover small area, Low energy consumption, Simple operation, Accurate processing, easy and fast transformation between different
functions" makes 5 AXIS bridge cutting machine a sharp weapon for stone processing enterprises.
Application
4 Axis bridge saw machine 5 Axis CNC Stone Cutting Machine cnc450-4axis bridge saw and cnc600-5axis bridge saw machine is a bridge type multifuction cnc machine for stone cutting and milling. It's easy for this cnc stone machine to process all kind of stone kitchen coutertop, bathroom countertop, shower trays, tombstone, window frames, 3D decorative wall and other products in general for furniture and building .
Functions:
* Slab cutting,chamfering0°-360° at any angle.
* Drilling, milling, recess machining.
* Block profiling, engraving.
* Photographing to positioning the workpiece for correct cutting.
* Worktable tilt 0-85°for easy slab feeding.
key words:cnc bridge saw,4axis bridge cutting machine, 5axis stone cutting machine,4axis bridge saw,5 axis bridge saw machine,mabrle bridge saw machine.cnc bridge saw.
Our cnc bridge saw is a 4axis and 5axis bridge cnc saw machine for granite kitchentop & countertop fabricator, stable electric system.

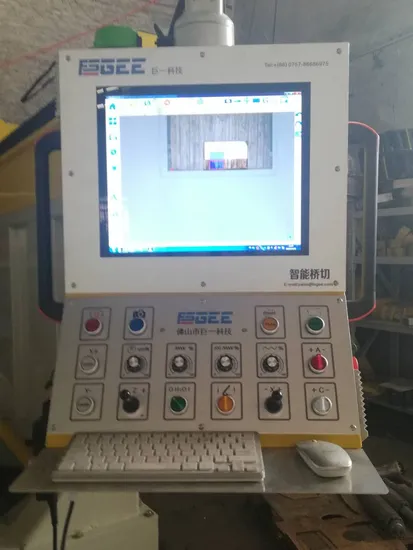

1) 5 axis linkage control with Italian CNC Esa system.2) Easy to use interface with 19" color touch-screen.3) Combine fuctions of carving, milling, cutting, drilling, engraving into an organic whole for complex processing.4) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamfering cutting.5) Working platform can tilt 85 degrees, easy for slabs loading.6) Manual cuts available for simple machining.7) Photo slab for nesting and avoiding defects.8) Nesting manual / automatic to optimize slab surface usage9) RTCP tool point tracking function ensure precision machining easy.10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
Technical Parameter

Model	GEE450-4X	GEE450-5X	GEE600-5X
X Axis stroke	3400 mm	3400 mm	3400 mm
Y Axis stroke	2000 mm	2000 mm	2000 mm
Z Axis stroke	150mm	150mm	150mm
A-AXIS / Head tilting	0-45°	0-45°	0-45°
C Axis stroke	±365°	±365°	±365°
Dia of disc	300/450 mm	300/450 mm	300/450 mm
Rotation speed of disc	4500 rpm	4500 rpm	4500 rpm
Table size(L*W)	3400×2000 mm	3400×2000 mm	3400×2000 mm
Table titlting degree	0-85°	0-85°	0-85°
Main motor power	18.5 kw	18.5 kw	18.5 kw
Total power	26kw	26kw	26kw
Water consumption	4 m³/h	4 m³/h	4 m³/h
Total weight	5000 kg	5000 kg	5000 kg
Outer dimension	6000×3400×3700 mm	6000×3400×3700 mm	6000×3400×3700 mm
Drawing system	Auto-CAD
Computer system	Windows 10
Sofeware	Gee CNC
Fucution 1	Intelligent typesetting Nesting
Fucution 2	Camera
Fucution 3	Tools setting
Fucution 4	Sucking Slab

Product Description

Related Products
Our factory not only have all kinds of size of bridge saw cutting machine of stone machine and stone machine spare parts ,but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and laser machine and water jet machines and so on !!!
Packaging & Shipping
Bridge saw cutting machine of stone machine package : wooden package out side , inside soft packages or all of soft film and ensure safety. It can loading by 20feet or 40feet container. about 30-40cbm , 2500-6500kgs ,whole one set bridge saw cutting machine of stone machine equiment. Bridge saw cutting machine of stone machine spare parts : soft package inside,carton package outside. The package ways alos can according to customer requirement.
Delivery time for machines:15-30days
Delivery time for stone machine spare parts : 1-7days
Company Profile
Guangzhou perfect machinery tech co., ltd ,it is one professional bridge saw cutting machine of stone machine and waterjet machine ect machine supplier, Our company is in a famous Career Technical College in china. Our College have very advanced CNC equipments for many years, I think that is a world-class processing equipment . i am sorry For i cannot give you the names of these factories, but I promise to give you best high quality.
we have been dedicated to the development and producing of a serious of column making machine,gang saw cutting machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine,waterjet cutting machine ,cnc router machine etc.With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We have developed a range of stone shape processing machines.We keep " Advanced Tecnology and High Quality" as our aim.
FAQ
Q: How to order for bridge saw cutting machine of stone machine ?
A :inquiry>>discuss machine details>>quotation>>confirmation layout and contract>>payment in advance>>order to factory>>inform customer>>payment balance >>contact ship booking container>>load container>>inform all documents>>made original documents>>sent documents to customer by express>>inform customer and follow tracking>>after customer inform arrange technology after-sales service.
Q: How to choose the cutting table for bridge saw cutting machine of stone machine?
A:You need to offer the size of the materials you want to process or the size of the cutting table.
Q:About customization for bridge saw cutting machine of stone machine ?
A: ODM/OEM business partner will be warmly welcome.
Q:Is the equipment easy to operate for bridge saw cutting machine of stone machine?
A:Wonlean intelligent cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network. The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operatio.
