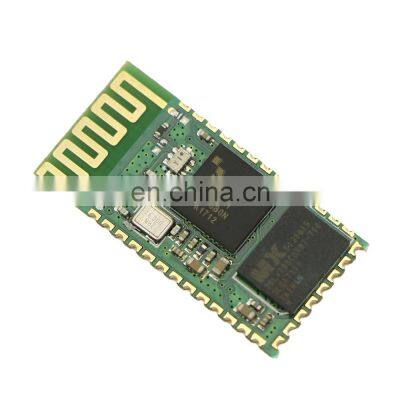

Low Price Original HC-06 RF Wireless BT Transceiver Slave Module

Product Description

Product Description
HC-06 BT Module Specifications HC-06 BLEUse the CSR BLE chip.Compatible with the BLE V2.0 protocolOperating Voltage 3.3V HC-06 BLESerial port BLE, Drop-in replacement for wired serial connections, transparent usage. You can use it simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc.Feature:Use the CSR BLE chip, compatible with the BLE V2.0 protocolOperating Voltage 3.3VAdjustable baud rate : 1200,2400,4800,9600,19200,38400,57600,115200Size: 28mm x 15 mm x 2.35mmOperating Current 40 mASleep Current < 1mADefault:Slave, 9600 baud rate, N, 8, 1. Pincode 1234AT command:1. Communications Test :Sent : ATreceive : OK2. Change baud rate :Sent : AT+BAUD1receive : OK1200Sent : AT+BAUD2receive : OK2400 1---------12002---------24003---------48004---------96005---------192006---------384007---------576008---------115200Baud rate setting can be save even power down. 3. Change BLE device name:Sent : AT+NAMEdevicenamereceive : OKname(devicename is the name you want the device to be , and it will be searched with this name)Name setting can be save even power down.4. Change Pincode:Sent : AT+PINxxxxreceive : OKsetpin(xxxx is the pin code you set)Pin code can be save even power down. Related ProductsRelated 2G 3G 4G GPS ModulesSIERRA MC Series-3G/4G ModulesMC7354 MC7350 MC7304 MC7455 MC7430 HL7588 SIERRA EM Series-3G/4G ModulesEM7305 EM7355 EM7330 EM7430 EM7455 EM7565 SIERRA HL Series-3G/4G ModulesHL7618 HL7648 HL7650 HL7688 HL7690 HL7692 HL7518 HL7528 HL7538 HL7539 HL7548 HL7549 HL7588 HL8518 HL8528 HL8529 HL8548 HL8549 HL6528 SIERRA WP Series-3G/4G ModulesWP7502 WP7504 WP7504-1 WP8548 WP7601 WP7601-1 WP7603 WP7603-1 WP7607 WP7608 WP7607-1 WP7608-1 WP7609 WP7700 WP7702 SIERRA GPRS ModulesSL6087 Q2686RD Q2687RD WISMO228 WISMO218 SIMCOM 4G ModulesSIM7000E SIM7000A SIM7000C SIM7100E SIM7100A SIM7100C SIM7500E SIM7500A SIM7600E SIM7100CE SIM7500CE SIM7600CE SIM7600E-H SIM8909 SIM8950 SIMCOM 3G ModulesSIM5300EA SIM5300E SIM5310 SIM5360E SIM5360A SIM5360J SIM5320E SIM5320A SIM5320J SIM5216E SIM5216A SIM5216J SIM6320C SIMCOM MTK GNSS/GPS/GLONASS/BEIDOU ModulesSIM33EAU SIM33ELA SIM39EA SIM28ML SIM28M SIM68E SIM68V SIM68R SIM68M SIM68VB SIM68MB SIMCOM GSM/GPRS ModulesSIM800 SIM800C SIM800A SIM800F SIM800H SIM800L Related accessories
