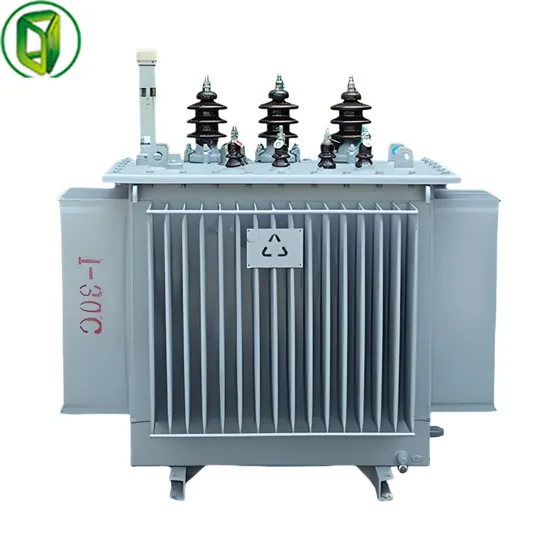

3D Core Oil Type Power Transformer Distribution Transformer Manufacturer

Product Description

S20-M.RL-(30-2500)/10 3 phase oil-immersed amorphous alloy iron coredistribution transformer

Rated capacity(kVA)	High voltage(kV)	Tap range	Low voltage(kV)	connected group label	No-load loss(w)	Load loss (75ºC)(W)	No-load current(%)	Impedance voltage(%)	Sound power level(dB)	Exterior size(L*W*H) Install4-Φ18	Total weight(kg)
30	6 6.3 6.6 10 10.5 11	±2*2.5 ±5	0.4	Dyn11 Yyn0 Yzn11	70	505/480	0.3	4	48	850x600x825	257
50					90	730/695	0.24		48	745x680x915	335
63					100	870/830	0.23			945x820x1020	400
					115	1050/1000	0.22		49	1045x705x995	490
100					135	1265/1200	0.21			890x795x1005	490
125					150	1510/1440	0.2		50	905x815x1040	620
160					180	1850/1760	0.19			1120x800x115	775
200					215	2185/2080	0.18		52	1075x930x1115	780
250					260	2560/2440	0.17			1140x990x1220	985
315					305	3065/2920	0.16		54	1145x990x1275	1150
400					370	3615/3440	0.16			1260x945x1250	1250
500					430	4330/4120	0.16		56	1320x1140x1325	1505
630				Dyn11 Yyn0	510	4960	0.15	4.5		1525x1320x1490	2400
800					630	6000	0.15		58	1500x1300x1485	2470
1000					745	8240	0.14			1585x1370x1540	2695
1250					870	9600	0.13		60	1670x1445x1650	3245
1600					1050	11600	0.12			1735x1505x1760	3995
2000					1225	14640	0.11	5	62	1890x1620x1720	4800
2500					1440	14840	0.11			1940x1670x1860	5540

NOTICE !
Please tell us the imformation before your ording. The imformation include:
1. Prefabricated substation type;
2. Transformer model and capacity;
3. High and low voltage circuit main wiring scheme;
4. Types and parameters of electrical components with special requirements;
5. Shell Color;
6. Names, quantities and other requirements of spare parts and spare parts;
ABOUT OUR COMPANY
Golden Triangle Power Technology Co., Ltd.(stock name: Golden Trianglestock code: 837424) was established in November 2009. lt is a company specializingin the research and development, production, sales, and technical services of powerproducts such as three-dimensional coil core transformers, amorphous alloy coretransformers,amorphous three-dimensional coilcore transformers, photovoltaicsubstations, energy storage equipment, high and low voltage switchgear, European,American, Chinese outdoor box substations,intelligent substations, etc A productionservice oriented enterprise integrating construction EPC. The products are widelyused in fields such as State Grid, Southern Power Grid, railways, mines, infrastructure, metallurgy, roads and bridges, and real estate management system
The company has passed ISO9001:2015 quality management system certification, ISO14001:2015 environmental management system certification, ISO45001:2008 occupational health and safety management system certification, PCCC energy-saving product certification, national mandatory product"CCC"certification, CQC China quality certification, AAA credit rating certification, etc. The company has been rated as a national high-tech enterprise, a provincial "specialized. special and new" small and medium-sized enterprise, one of the top 100 scientific and technological enterprises with the most growth potential in the province, a provincial small and medium-sized scientific and technological enterprise, and a municipal green factory. The company has provincial high-tech enterprise research and development center academician workstation, doctor innovation workstation, 3 invention patents and 51 utility model patents.
The company's products have been recorded in the promotion catalog of the"Energy Saving and People Benefiting Project" and the "Recommended Catalog of Energy Saving Electromechanical Equipment" of the Ministry of Industry and Information Technology, the Ministry of Finance and the National Development and Reform Commission.lt is the first power industry enterprise in Wenzhou to receive direct subsidies from the Ministry of Finance for product sales. The company's products have won honorary titles such as the national industrial energy saving technical equipment products, the first set of products in key fields of provincial equipment manufacturing, and the provincial excellent new industrial products. The production standards of the main products "SCB13-RL solid triangle ironcore dry-type transformer" and "SBH16-RL solid triangle rolled iron core amorphous transformer" are listed as "Zhejiang manufacturing quality standard". The company led the drafting of 10 standards, including "GB/T32825-2016 National Standard for Three phase Dry type Three dimensional Wound Core Distribution Transformer","NB/T 10483-2020 Standard for Three phase Dry type Amorphous Alloy Three dimensional Wound Core Distribution Transformer" and "T/CEElA 251-2016 Standard for Composite Transformers for Photovoltaic Power Generation", making positive contributions to energy conservation and emission reduction in China's powerindustry and the development of green energy technology.

THE HONOR OF COMPANYNowadays, market competition is ncreasingly fierce, science and technology changes rapidly. Adhereing to persistent philosophy of "quality is the enterprise life", with the full implementtation of ISO9001:2000 international quality management system, Golden Triangle frimly established "quality execellence .service perfect, product quality, continuous quality improvement" as the quality policy to ensure customer satisfaction. The company was included in "energy saving and Huimin engineering energy-effcient distribution transformer" by the national development and Reform Commission, Ministry of Finance, Ministry of industry and imformation in its first promotion of enterprise.
SEVERAL PICTURES ABOUT COMPANY AND PRODUCTION
The company adheres to the quality policy of "quality first, honestservice, strict management, and striving for perfection", and gives back tothe majority of users with first-class technology, first-class quality, and first-class service. We warmly welcome people from all walks of life to visit us forguidance and negotiation, to seek common development, to jointly build a'win-win" and to create a better future with you !
