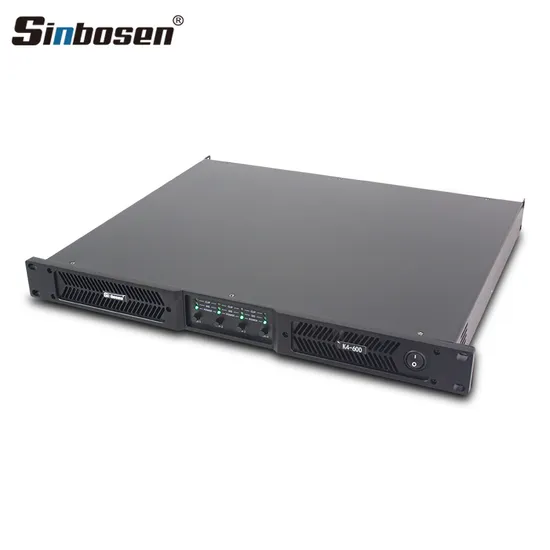

Sinbosen 600W 1u Digital Sound System Power Amplifier Professional Audio Home Theater
| US$250.00-300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
K4-600
Used For
Professional
Tube Type
Transistor Amplifier
Function
Post Amplifier, Amplifier Combined, Pre-amplifier
Sound Channel
4CH
Output Number
4
Voltage
90V~270V
Element Number
Push-Pull Amplifier
Conductive Mode
D
Product Name
Professional Power Amplifier
Business Type
Manufactuer
Capacitance
3600UF, 200V
Frequency Response
20 Hz - 34 kHz
Color
Blue, Black
Certificates
CE RoHS
Supply Spare PAR
Yes
Warranty
3 Years
Service
OEM Service
Transport Package
Strong Carton Packing
Specification
580*180*560mm
Trademark
Sinbosen
Origin
Guangdong Province, China
HS Code
8518400090
Production Capacity
1000PCS/Month
Product Description
Product Parameters| Model | K4-600 | K4-800 | K4-1000 | K4-1400 | K4-1700 |
| 8Ω Stereo Power: | 4x600w | 4x800W | 4x1000W | 4x1400W | 4x1700W |
| 8Ω Stereo Power: | 4x900w | 4x1200W | 4x1400W | 4x2200W | 4x2800W |
| 8Ω Stereo Power: | 2x1800w | 2x2400W | 2x2800W | 4x2200W | 2x5000W |
| 4Ω Bridge Power: | 2x2200w | 2x3100W | 2x3500W | 2x5500W | 2x6100W |
| THD (20Hz-20kHz for 1W): | <0.1% | ||||
| THD (1kHz and 1 dB below clipping): | <0.05% | ||||
| DSP Processor: | No | ||||
| Signal Noise Ration: | >106dB | ||||
| Frequency Response(+/-0.1dB): | 10Hz-34kHz | ||||
| Damping coefficient: | >600 | ||||
| Impedance(balanced/unbalanced): | 20KΩ/10KΩ | ||||
| Gain (optional): | 0.775V/1V/32dB | ||||
| Output socket: | Speakon Connectors(NEUTRIK) | ||||
| Input socket: | Combo XLR type,3pin(NEUTRIK) | ||||
| Link socket: | No | ||||
| Protection: | Short circuit, open circuit, thermal,overload, DC, super audio protection | ||||
| Power Requirement: | 90-265V~50Hz(PFC) | ||||
| Size(W x H x D): | 483x429x44mm | ||||
| Weight(net): | 8kg | 9kg | 9kg | 10.5kg | 11kg |
Feature:
4 channel Class D Digital power amplifier
Mini 1U size,convenient for Touring Applications
Precise and Reasonable circuit structure
Bring supper reliable sound
Bridge-mode operation for Touring Applications
Original Neutrik XLR*/Speakon connectors
Temperature protection;Over current protection;Short circuit protection built-in
Why choose us?
1.Three years warranty, free accessories.If there are quality problems,provide pictures or video, engineers judge the problem and provide after-sale support Products with CE ROHS certification.
2.We are 10 years manufature about professional audio speaker and power amplifier.
3.Our engineers have 10 years work experience, very professional.
4.The product is light and suitable for performance and conferences.
5.There is no minimum order quantity limit ,you can choose to order 1pc or 1000000pcs.No limit about quality.
6.Products with CE ROHS certification.
