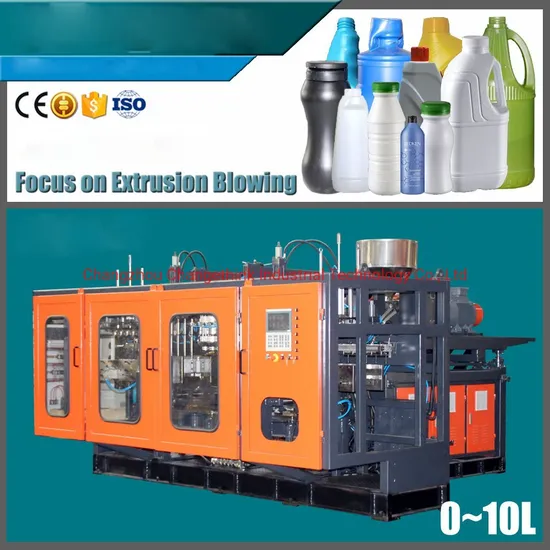

Lty80d-2 Extrusion Blowing Molding Machine for 1 Gallon Bottle

Product Description

CHANGZHOU LOYALTY INDUSTRY CO.,LIMITED is specialized in Extrusion Blow Molding field. We provide blow molding machines, hollow moulds, auxiliary machines, special processing devices and project service for your production plans.We a professional manufacturer of Extrusion Blow Molding Machines, owning more than 16 years working experience in EBM machines' design, manufacturing, overhauling, service and project solutions. Our product line covers 0~30L continuous EBM models, high speed automatic EBM models, 30~500L accumulating EBM models, 1000~3000L large EBM models. Our machines are widely used in packing and producing industries of chemical, food & drinking, medical, automobile, traffic safety, recreation facility, family life and communal facilities. We provide the entire solutions for a whole producing line of project items.
Besides our Chinese domestic market, our blow molding machines also have been exported to Europ, Mid East, Africa, South America and Asia countries. The service covers product analysis, project sonsultation, manufacturing follow-up, exporting and after sales services.
We have mature technology and technics for multi-layer co-extrusion, high speed and high automatic blow molding machines, also can help our customers for producing line layout and producing flow arrangement. Our machines' quality is good and reliable, the working lifespan is more than 20 years. We hope to establish long term cooperation relationship with you and keep developing together.

1	LTY80D-2 is double station double head blow molding machine for 1 gallon specially.
2	Its output for 2L square bottle is 500 BPH, daily production capacity is 12000 bottles.
3	High-hardness alloy coating screw driven by SIEMENS motor for plasticizing 110KG.
4	Nether bent arm central clamping structure with linear guide rails for action stability.
5	Pressure-flow double proportion & mechanical shuttle cylinder for better performance.
6	Speedy reaction total machine control system with 100 point parison thickness control.
7	Lubrication system, product clamping boards and scraps slide channels are included.

COMPONENTS	BRAND	ORIGIN
MACHINE TOTAL CONTROL	WISETECH	HONGKONG
100 POINT PARISON CONTROLLER	WISETECH	HONGKONG
10" COLORFUL TOUCH SCREEN	WISETECH	HONGKONG
TEMPERATURE CONTROL MODULE	WISETECH	HONGKONG
PARISON SERVO VALVE	ATOS	ITALY
PARISON SERVO TRANSDUCER	GEFRAN	ITALY
CONTRACTOR	SCHNEIDER	FRANCE/CHINA
AIR SWITCH	SCHNEIDER	FRANCE/CHINA
FUSE KIT	SCHNEIDER	FRANCE/CHINA
PROXIMITY SWITCH	RIKO	TAIWAN
INVERTER	DELTA	TAIWAN
SEAL PARTS	DZ	TAIWAN
HYDRAULIC PUMP	HYTEK	TAIWAN
HYDRAULIC VALVE	HYTEK	TAIWAN
PNEUMATIC VALVE	AIRTAC	TAIWAN
PNEUMATIC CYLINDER	AIRTAC	TAIWAN
COMPRESSED AIR FILTER	AIRTAC	TAIWAN
LINEAR GUIDE RAILS	HIWIN	TAIWAN
HARD GEAR BOX	HAOKE	CHINA
EXTRUSION MOTOR	XINDALI	CHINA
HYDRAULIC MOTOR	SIEMENS BEIDE	GERMANY/CHINA

	SPECIFICATIOIN	/PARAMETER
	Machine Model	Double Station Double Head
	Max Product Volume	1 Gallon
	Dry Cycle Time	7.5 Second
	Pre-heating Time	2.5~3.0 Hours
	Machine Weight	7.8 Tons
	Machine Size	4.0*3.2*2.65 m
/EXTRUSION UNIT
	Screw Diameter	80 mm
	Length/Diameter Ratio	24:1
	Heating Zone No.	5
	Heating Power	20.2 KW
	Cooling Fan No.	4
	Fan Power	0.15 KW*4
	Extrusion Motor Power	30 KW
	Plasticizing Capacity	110 Kg
/CLAMPING UNIT
	Clamping Design	Nether Bent Arm Central Clamping
	Clamping Force	110 KN
	Platen Size	450*400 mm
	Platen Moving Distance	600 mm
	Platen Opening Stroke	200-650 mm
	Max Mould Size	500*450 mm
	Mould Thickness	205-350 mm
/HEAD UNIT
	Head Type	Continuous Extrusion Head
	Head No.	1		2
	Central Distance	-		200 mm
	Max Die Diameter	180mm		130mm
	Heating Zone No.	2+1		2+1
	Heating Power	7 KW		7.8 KW
/ENERGY CONSUMPTION
	Extrusion Motor Power	30 KW
	Oil Pump Servo Motor Power	11 KW
	Thickness Servo Motor Power	4 KW
	Extrusion Heating Power	20.2 KW
	Head Heating Power	7.8 KW
	Cooling Fan Power	0.6 KW
	Total Power	74.6 KW
	Average Energy Consumption	33.5 KW
/REFERENCE
	Cold Water Needed	0.3 Mpa	5500 L/h
	Compressed Air Needed	0.6 Mpa	0.8 M3/min
	Power Installation Capacity	16 Amp, 3*35 m+ 1*25 m
	Loading Reference	40' HQ*1

ITEMS	SPECIFICATIONS
Target Product	5L Bottle
Mould Cavity No.	2 Cavity
Product Material	HDPE
Mould Design	Made According to Sample or Product 3D Drawing
Cavity Material	Steel S50C in Modulation
Scraps Blades Material	Steel S50C in Modulation
Mould Carrier Material	Steel S45C
Blade Hardness	35~36 Hrc
Neck Ring Hardness	58 Hrc
Cavity Surface Processing Method	Sand-blast with Reasonable Air Exhausting Design
Cold Water Runner Design	Separate Cooling Runners
Mould Structure	Main Cavity Mould + Scraps Removing Device
Mould Lifespan	>1,500,000 Working Times
