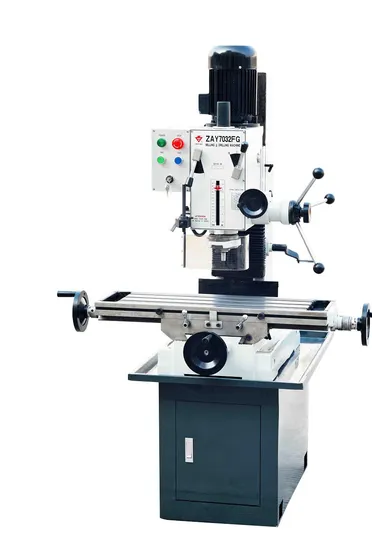

Gear Dirven Type Drilling Milling Machine ZAY7032G/ZAY7040G/ZAY7045G
| US$930.00-1,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Zay7032G/Zay7040G/Zay7045G
Number of Shaft
3
Hole Diameter
32mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Function
Drilling,Milling,Tapping
Drilling Capacity
20-45mm
Driven Type
Gear Driven
Transport Package
Plywood Case
Specification
770*880*1160mm
Trademark
white eagle
Origin
Made in China
HS Code
8459290000
Production Capacity
1000 PCS/Month
Product Description
1.Product Description Features1)Gear-driven type and round column
2) Milling, drilling, boring, reaming
3) Headstock swivels 360 horizontally
4) Micro feed precision
5) Adjustable gibs on table precision.
6)Strong rigidity, powerful cutting and precisely positioning.
2.Specification
| Model | ZAY7032G | ZAY7040G | ZAY7045G |
| Drilling capacity | 32mm | 40mm | 45mm |
| Face milling capacity | 63mm | 80mm | 80mm |
| End milling capacity | 20mm | 32mm | 32mm |
| Distance from spindle nose to table | 440mm | 440mm | 440mm |
| Min. distance from spindle axis to column | 272.5mm | 272.5mm | 272.5mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M. T. 3 or R8 | M. T. 4 or R8 | M. T. 4 or R8 |
| Step of spindle speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r. p. m | 80-1250 r. p. m | 80-1250 r. p. m |
| 60Hz | 95-1500 r. p. m | 95-1500 r. p. m | 95-1500 r. p. m |
| Swivel angle of headstock(horizontally/perpendicularly) | 360° /± 90° | 360° /± 90° | 360° /± 90° |
| Table size | 800× 240mm | 800× 240mm | 800× 240mm |
| Forward and backward travel of table | 175mm | 175mm | 175mm |
| Left and right travel of table | 500mm | 500mm | 500mm |
| Motor power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Voltage/frequency | As customer' s requirement | As customer' s requirement | As customer' s requirement |
| Net weight/gross weight | 315kg/365kg | 318kg/368kg | 320kg/370kg |
| Packing size | 770× 880× 1160mm | 770× 880× 1160mm | 770× 880× 1160mm |
| Loading amount | 36pcs/20 ' container | 36pcs/20 ' container | 36pcs/20 ' container |
3.Machine Photo
3.Manufacturing Ability
4.We in Fairs
5 OEM APPROVED * LOGO OEM accept.
* Packing design OEM accept
* Even machine design OEM accept.
.
6.Our team Service * Professional team,perfect pre-sale and after-sale service.
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion
