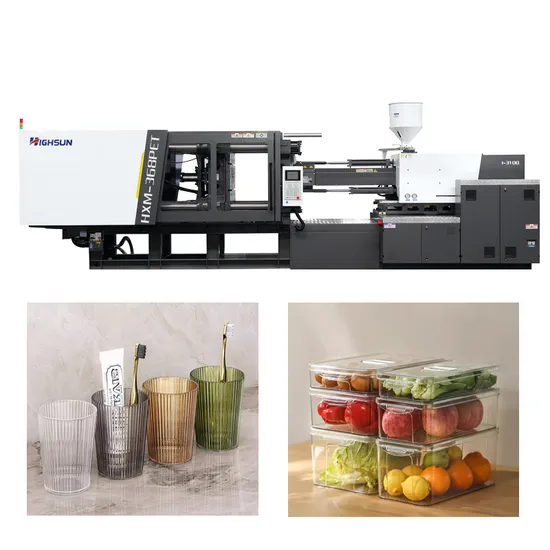

Storage Box Bottle Preform Plastic Injection Molding Machine
| US$20,000.00-75,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM368PET
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, SGS, TUV
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
According to Countries
Showroom Locate
Malaysia,Indonesia,Turkey,Mexico,Uzberkista,Mn
Condition
100% New
Machine Weight
12 Ton
Transport Package
Standard Packing
Specification
7.9*1.99*2.24
Trademark
HIGHSUN
Origin
China
HS Code
847710
Production Capacity
7000sets/Year
Packaging & Delivery
Package Size
790.00cm * 199.00cm * 224.00cm
Package Gross Weight
12000.000kg
Product Description
PET Series Plastic Injection Moilding Machine
Specializing in PET series of injection molding machines
1.Adopt the special designed screw and large torque melt motor, in order to facilitate PET raw materials plasticizing and molding;
2.The ejector system can well meet the production of PET products;
3.With the high-power motor-pump system, it can achieve shorter cycle time;
Main feature for PET machine: Enlarged motor & pump system; Special structure and steel for screw & barrel, L/D 24. Enlarged length of machine base. Enlarged ejector cylinder.
| MODEL: HX(*)368PET | |||
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 85 |
| SCREW L/D RATIO | L/D | 24 | |
| INJECTION CAPACITY (THEORETICAL) | cm3 | 2099 | |
| INJECTION WEIGHT(PET) | g | 2435 | |
| oz | 85.8 | ||
| INJECTION PRESSURE | MPa | 166 | |
| INJECTION RATE | g/s | 628 | |
| PLASTICIZING CAPACITY | g/s | 140 | |
| SCREW SPEED | rpm | 160 | |
| CLAMPING UNIT | CLAMP FORCE | KN | 3580 |
| OPEN STROKE | mm | 660 | |
| MAX. MOULD HEIGHT | mm | 750 | |
| MIN. MOULD HEIGHT | mm | 250 | |
| SPACE BETWEEN TIE-BARS (W×H) | mm | 720*670 | |
| EJECTOR FORCE | KN | 193 | |
| EJECTOR STROKE | mm | 180 | |
| EJECTOR NUMBER | n | 13 | |
| OTHERS | PUMP PRESSURE | MPa | 17.5 |
| MOTOR POWER | KW | 30+30 | |
| HEATING POWER | KW | 31.15 | |
| MACHINE DIMENSION (L×W×H) | m | 7.9*1.99*2.24 | |
| MACHINE WEIGHT | t | 12 | |
| OIL TANK | L | 680 | |
Refernce
Machine: HXM 428-PET Machine: HXM 358-PET
1L bottle preform Bottle preform
Mould: 48 cavities Mould: 48 cavities
Weight: 30 g Weight: 12 g
Cycle time: 22s Cycle time: 17s
