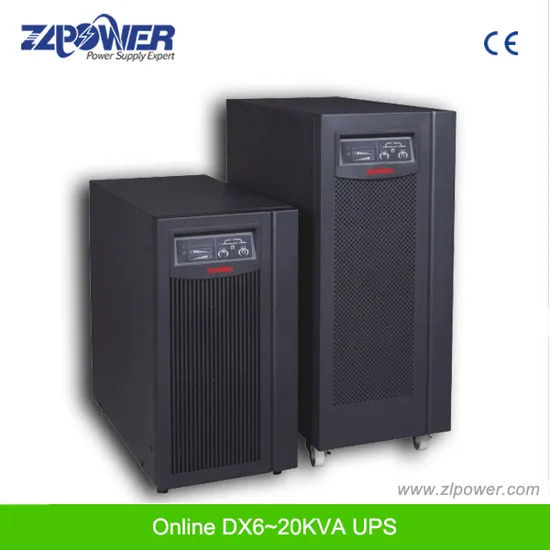

6kVA 10kVA 15kVA 20kVA High Frequency Online UPS
| US$295.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
DX series
Protection
Unbalanced Loads
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Centralized Model
Brand
Zlpower
Nominal Power
6kVA~20kVA
Input Voltage Range
120-275V/210-475V
Frequency
50/60Hz
Power Factor
0.8
Current Crest Ratio
3:1
Output Connection
Terminal Block
AC Mode Efficiency
88%
Battery Mode Efficiency
87%
Transfer Time
Zero
Operating Temperature
0.-40centi-Degree
Transport Package
Carton Package
Specification
CE, ISO9001
Trademark
ZLPOWER
Origin
Shenzhen, China
HS Code
8504402000
Production Capacity
100, 00PCS/Month
Product Description
UPS-professional UPS manufacturer, Chinese UPS power supply manufacturer, UPS 400VA- UPS power 200kVAUninterruptible Power Supply (UPS) - Pure Sine Wave Online UPS 1K-20kVA
Model: High frequency Online UPS 1K-20kVA
UPS Advantage:
1: UPS with IGBT + DSP Technology
2: Built-in UPS Snmp Card Slot
3: Self test while UPS start
4: UPS 6K-20kVA with N + X parallel redundancy
| UPS Key Features: 1: UPS with True on-line double conversion technology and advanced microprocessor control 2: Wide input voltage range 3: Zero transfer time - Uninterruptible Power Supply, Nobreak Power 4: Protection against all type of power problems, Like: Power sags, high voltage spikes, switching transients, power surges, noise, frequency variation, brownout. Overload, Short Circuit, Overcurrent, Unbalanced Loads, Overvoltage 5: Self test while start of the UPS 6: Site wiring fault warning 7: On-battery power-on function 8: Smart RS232 and USB communication interface 9: Intelligent SNMP Card slot available 10: Built-in UPS Battery (Sealed lead acid, maintenance free battery) 11: Pure sine wave output UPS Type 12: Single Phase In/Out for UPS 1-10kVA, Three Phase In and Single Phase out for UPS10-20kVA 13: Large LCD Display, Large blue back light LCD for detailed real-time UPS status display 14: Microprocessor control guarantees high reliability 15: Comprehensive self-protection design 16: Audible alarm mute 17: Cold start function 18: Auto self-testing system while turning on UPS 19: Maintenance bypass switch for UPS 6k to 20K 20: N + X parallel redundancy and capacity expansion for 6k to 20K 21: UPS with MCU (Freescale) +IGBT+DSP (TI) technology and double conversion structure. |
Any more requirements,pls feel free to contact Bella
