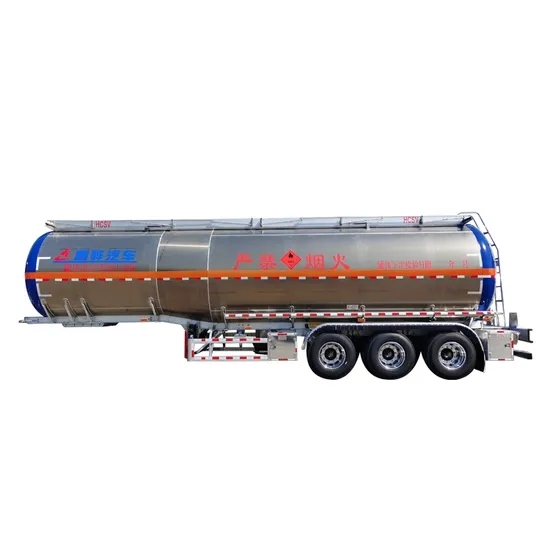

High-Capacity 50kl Aluminum Fuel Oil Tank Trailer Truck

Product Description

Product Description

Tank trailer specification
1	Medium		Milk,cooking/palm oil and other edible oil
2	Overall demension		11500*2500*3500mm(approx)
3	Curb weight		8300kg(approx)
4	The height of fifth wheel		1280 mm
5	Axle		13T HCSV Brand with ABS and automatic slack adjusters & 3 units
6	Tire		12R22.5 & 12 units,Triangle Brand
7	Rim		9.0 & 12 units, high strength iron
8	King pin		50#(2") or 90# (3.5") standard bolted type
9	Landing gear		Capacity & 28T, Fuwa Brand
10	Suspension		Leaf spring,13mm*90mm*10pcs
Tank body specification
11	Tank shape		Square round and goose neck design
12	Tank capacity		38,000 liters (valid volume) + 5%(ullage)
13	Tank meterial		AL5454
14	Tank designed thickness	End cover	7 mm
		Tank body	5.5 mm
		Baffle	5.5 mm
15	Insulation material	Rock wool or foam insulation
16	Insulation material thickness	50 mm or as customer's requirements
17	Insulation cover plate	Color coated plate or Aluminum plate or stainless steel plate
18	Insulation cover plate thickness	0.5 mm
19	Heating system	Oven or burner or heating channel
Main parts specification
20	Beam	Heavy duty and extra durability designed T-type beam,opting for high tensile steel Q345,welded by automatic submerged-Arc processes
21	Compartment	Single
22	Manhole cover	Stainless steel,quick-open type & 2 units
23	Bottom valve	4" stainless steel & 1 unit
24	Discharging valve	4" Stainless steel ball valve & 2 units
25	Discharging hose box	6 meters & 2 units
26	Discharging hose	High temperature type,5.7 meters & 2 units
27	Handrail	2 units on the top
28	Walkway platform	On the top with anti-slip punched design
29	Ladder	1 unit, on the rear or front
30	Breath valve	Stainless steel & 2 units
31	Spare tire Carrier	1 unit
32	Mud guard plate	Integrated design plate,carbon steel
33	Reverse buzzer	1 unit
34	Electric system	24V, 7-pin socket
35	Lights	LED lights with protection
36	Painting	As customer's requirements
37	Delivery	Spray wax before departure and tarpaulin for protection
Other equipment
1.Single tool box, carbon steel, largest as possible as we can 2.Single valve box, carbon steel, largest as possible as we can 3.Both right and left sides loading and unloading on rear. 4.2 sets of 8KG fire extinguisher and boxes 5.1set of anti-static grounding tape 6.All of other necessary tools

Drawings
Accessory Details
Packaging & Shipping
Company Profile Hebei Changhua Special Vehicle Co.,Ltd(HCSV)is the top 3 trailer factory and one of the earliest special vehicle manufacturers in China.
Our company was founded in 1994 and is located in Huanghua City, Hebei Province. The total investment is more than USD 120 million, covering an area of 467,000 square meters, with an annual output value of more than USD 400 million. We have more than 1,600 employees and the annual production capacity of special vehicles can reach 28,000 units.
In 2001, our company took the lead in passing the ISO9001:2000 quality management system certificate and was certified by 3C in 2003. We have more than 258 vehicle models announced by China's Ministry of Industry and Information Technology and obtain many international certificates such as CE, ADR,ASME and so on. In 2006, HCSV was awarded the title of "Famous Trademark" and was recognized as a "National High-tech Enterprise".
Our products include:
★Aluminum/steel/stainless steel tank semi-trailer and truck tanker etc.
★Fuel/edible oil tank,chemical tank and insulation tank semi-trailer etc.
★Bulk cement/powder and particle material V-type tank semi-trailer etc.
★Sidewall/warehouse/fence/van type cargo transport semi-trailer etc.
★Flat bed/low bed/skeleton type container transport semi-trailer etc.
★Cryogenic (LNG/LOX/LN/LAR/CO2) vessel and LPG tank semi-trailer etc.
★Container frame tank,storage tank and other special trailers etc.
We have 16 product lines with modern equipment and technology.
★28 units per day of carbon steel and stainless steel tanker production lines
★30 units per day of aluminium alloy tanker production lines
★8 units per day of pressure vessel production lines
★12 units per day of bulk powder tanker production lines
★20 units per day of cargo trailer production lines
★120 units per day of accessory production lines
With 30 years of rapid and stable development, we have a strong R&D and production capacity, and we have cooperated with many large energy or logistics companies at home and abroad, such as China National Petroleum Corporation;INDOX Ltd,GREENVILL Inc. in Europe;OIL ENERGY, SAPE, NOON AFRICA in Africa;NLC,SPEED,PACIFIC ENERGY,SUNOIL in Asia etc. Now, our company has become a group-based special vehicle manufacturing enterprise integrating R&D, production and sales with international influence.
Welcome to our company!

Certifications
Customer visit
FAQ
