Loongyi 500kg Dry Food Spice Masala Flower Vegetable Peanut Powder V Blender Mixer Machine

Product Description

Product Description LYV Series V Type Mixer
Product Introduction: V type mixer is widely used in pharmaceutical, food, chemical industry, building materials industry, coating, condiment of industries such as powder mix the raw materials. Working Principle: V type cylinder in the drive shaft driving to rotate around the center for the rotary motion, one of the material also with V type two tilt cylinder for gravity diffusion movement, when V type cylinder (bottom) the joint of the rotation is located in position, and when V type cylinder is located in the joint of the rotating position, together in the bottom of the material be shunted to the two inclined the cylinder body, make each inclined cylinder materials and the mouth can be connected to another inclined in the cylinder. With the constantly rotating cylinder, the location of the changes,V type cylinder material being repeatedly dislocation, translation, and the diffusion, so as to realize the mixture evenly. Product Parameters Technical Data:

Model (LYV)	100	200	300	500	1000	1500	2000	2500	3000
Revolution(L)	100	200	300	500	1000	1500	2000	2500	3000
Production Capacity(L)	50	100	1500	250	500	750	1000	1250	1500
Mixing Time(min)	4-8	6-10	6-10	6-10	6-10	6-10	8-10	10-12	10-12
Agitation speed(rpm)	12	12	12	12	10	10	10	10	10
Power(kw)	1.1	1.1	2.2	2.2	4	4	5.5	7.5	11
Overall size(mm)	1500 × 600 × 1330	1900 × 610 × 1700	2300×600×1800	2700 × 650 × 1950	2900×720×2100	3150×900×2600	3600×1200×2950	3900×1350×3100	4300×1600×3860
Weight(kg)	250	335	400	550	700	1150	1500	1900	2400

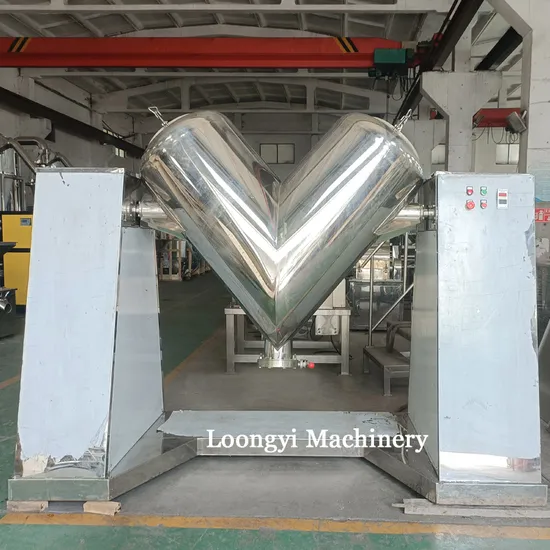

Detailed Photos Product Pictures:
Company Profile With more than 20 years of manufacturing experience, Jiangyin Loongyi Machinery Co.,ltd specialized in manufacturing
powder grinding machine, mixing machine, sifting machine, granulator machine, packing machine, drying machine,
conveying machine, slicing machine, cleaning machine and so on, which are widely used in foodstuff, chemical
and other industries,etc.
Since its foundation, Loongyi has always adhered with the principle of quality firstly and technology is life. The
company owns more than 50 employees, about 1000m2 of office space, cover about 9000m2 of manufacturing
space. With customer
concentric idea as base, it takes every detail seriously in the process of production to assure high performance
and quality of each part and equipment as well as the stable operation in more than 80 countries around the world.
Our products have been exported to such countries and regions as USA,Canada, Europe, Japan, Australia,Africa,
South Asia,middle Asia. We also welcome OEM and ODM models. Our products are approved by CE and ISO.
Loongyi Machinery locates in No. 236 Yungu Road, Zhutang town, Jiangyin City, Wuxi City, Jiangsu Province, China.
It takes about 20 minutes to take the high-speed train from Shanghai to our city; It takes about 40 minutes to drive
from the high-speed railway station to our factory. There is airplane in our city, so transportation is very convenient.
Over these years, our company has made elaborate design and improvement,on the basis of absorbing features
and advantages of similar products both at home and abroad.
The products have won good reputation and praises among all customers, from at home and abroad,too.
