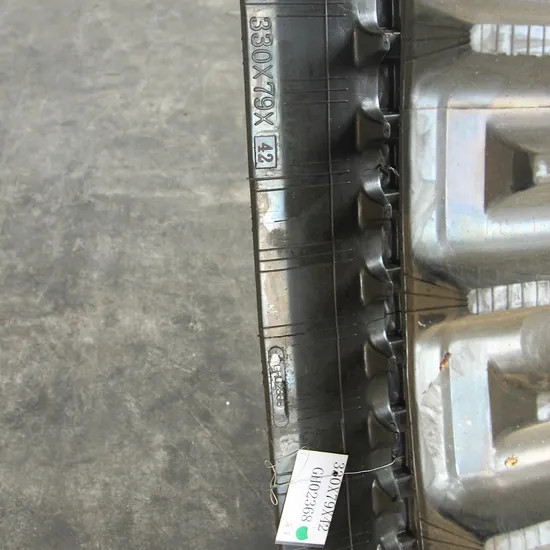

Kubota Sr-18, Sr-20, Sr-195 Replaceable Rubber Track 330*79*42

Product Description

kubota SR-18, SR-20, SR-195 replaceable rubber track 330*79*42 1,Continuous rubber track
2,Jointless structure rubber track
3,Good quality with rapid delivery
4,OEM available
5. Application: KUBOTA (SR-18 SR-20 SR-195 SR-215)
Our Rubber Track are prepared with natural rubber. It possesses very good properties of wear resistance, tear resistance and non-disintegration etc. The adhesion between the rubber and the steel frame is very strong, the replacement is convenient an the service life is long,it is suitable for various vehicle like excavator,pavers,bitumen transportation trucks etc.

Type of rubber tracks:
1, Bolt on type
2, Bolt on type with steel bottom
3, Chain ontype
4, Clip on type
5, Pavers rubber pad

The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.
Rubber Track Specifications:

Track Size	Lug Pattern	Guide Type	I.G.B.	O.G.B.		Track Size	Lug Pattern	Guide Type	I.G.B.	O.G.B.
(width*pitch)			(mm)	(mm)		(width*pitch)			(mm)	(mm)
150*72	EB	A,B	24	62		350*52.5	BD	C,D	38	90
180*60	EB/CF	A,B	22	64		350*54.5	BE	E1	40	92
180*72	EA	A,B	22	68		350*56	BF	C,D	38	90
180*72K	AE	E1	22	66		350*56KB(R)	AG	E1	38	88
B180*72	BM	B	22	68		350*75.5Y	BH	F	38	100
200*72	EC	A,B	23	64		350*90	HC	B	26	78
200*72K	AE	E1	22	69		370*107Y	CE	E1	38	92
230*101	CC	C	24	75		400*107Y	CE	E1	38	92
230*48	AB	C	22	76		400*142K	AD	E1	30	94
230*48K	AG	E1	25	67		400*72.5KB(R)	AA	C,E1	50	106
230*72	DB	A,B	23	76		400*72.5KM	AF	C,E1	38	93
230*72K	BM	E1	23	66		400*72.5N	BA	C,D	38	95
230*96	CD	C	26	76		400*72.5W	AA	C,D	50	108
250*47	AG	D,E1	24	70		400*72.5YM	AG	E1	32	90
250*48.5Y	BH	E2	24	66		400*75.5YM	BH	F	40	100
250*52.5	BC	C,E	25	74		400*86	HA	B	50	94
250*72	DA	A,B	24	78		400*90	HC	B	26	76
250*72V	SV	B	24	76		400*90KB	HC	B	38	84
260*109	CC	C,D	30	86		400*90R	KB	B	36	86
260*55.5Y	BH	E2	30	82		420*100	CF	A,B	50	98
260*96	CC	C	24	76		450*163K	AD	E1	40	120
280*106Y	CE	E1	29	81		450*71	AC	C,D	42	115
280*72	DC	A,B	26	78		450*76	AD	C,D	47	118
300*109K	CE	E	26	86		450*81N	AD	C,D	40	116
300*109N	CB	C,D	30	78		450*81W	AD	C,D	60	144
300*109W	CE	C,D	40	94		450*81.5	BN	D	43	110
300*52.5K	BC	E1	30	88		450*83.5K	AD	C	42	114
300*52.5N	BC	C,D	31	82		450*83.5Y	BK	F	40	116
300*52.5W	BB	C,D	42	94		B450*84	HA	B,E1	42	98
300*53	BG	E1	32	88		B450*86C	SC	B	50	98
300*55	AA	C,D	30	82		B450*86MB	HA	B	50	98
300*55.5Y	BH	E2	30	82		T450*100MB	HA	E1	45	104
300*72	DE	B	25	78		T450*100C	SC	E1	45	104
320*100	CF	A,B	32	83		T450*100SB	SB	E1	45	104
320*106Y	CB	E1	30	82		450*90	HB	B	38	86
320*54	BF	C,D	30	82		450*90	HB	B	36	85
B320*84MB	HA	B	47	104		500*90	KB	B	47	98
B320*86MB	HA	B	47	96		500*92	AD	E1	48	126
B320*86C	SC	B	47	96		600*100	KB	B	45	115
T320*86C	SC	B	36	85		700*100	KB	B	44	118
T320*86MB	HA	E1	36	85		750*150	KB	B	62	176
T320*86SB	SB	E1	36	85		800*150	KB	B	58	148
320*90	HC	B	36	90		381*101NMC	*	*	*	*
320*90H	KA	B	38	78		457*101NMC	*	*	*	*

Photos for loading containers:
