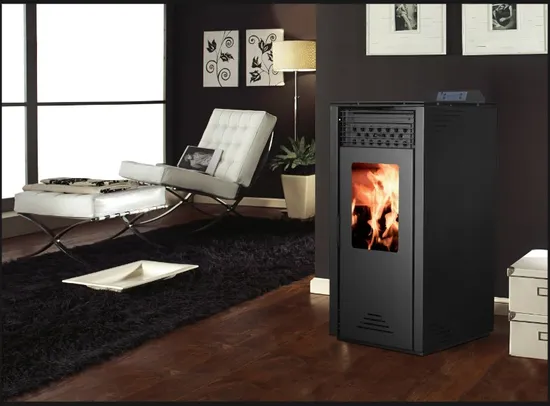

European 2022 CE Certified Wood Pellet Stove/ Heater/ Fireplace Eco Design

Product Description

Product Description

BRAND	Optional
MODEL	PS04
Type	Pellet stove
Airtight (Yes/no)	Yes
Heating surface capacity	100-150M2
Range of heating power min-max (kW)	9KW
Hopper capacity (kg)	24
Autonomy (h)	12 - 24h
Fuel consumption (kg/h)	0,9 - 1,85
Thermal efficiency (%)	93.00%
Burning chamber materials	Q235 3.0 CR steel
External materials	Q235 2.0 CR steel
Burner material	S.S.
Fan speeds	5 levels
Silence mode	No, noise less than 45 decibel
Controls	Remote control avaliable
Time programming	Yes
Auto-regulation of the temperature	Yes
ECO-STOP	Yes
Removable ashtray	Yes
Wifi	Optional
Diameter of outlet pipe (mm)	78
Outlet pipe position (upp/back)	Back
External air inlet (Yes/no)	Yes
Diameter of external air inlet (mm)	50
Installation distance back/side (cm)	10CM/5CM
Other relevant information	Schott/NEG glass
	Weilburger paint
Performance index	EEI 123
CO (%) / mg/Nm3	131mg/Nm3
Dust emission (mg/Nm3)	20
Nox emission(mg/Nm3)	127
CxHx emission(mg/m3)	1
Energy class	A+
Dimensions (WxHxD cm)
Net weight / Gross weight (kg)	95/105
HS CODE	73218900
Box size	112*57*68
20' / 40' / 40'HQ	54/120/120
MOQ	54

Detailed Photos
Product dimension:
Product sectional drawing:
Warranty:
We hereby guarantee that the warranty period for main components of the stove is 12 months in the following cases.
1. The stove was operated and maintained in accordance with the requirements and instructions in the operating manual,
2. The stove is installed and maintained only by a qualified dealer or technical personnel.

Within the 12 month warranty, only the following components and parts can be repaired:
• Glass
• Thermocouple
• PC board
• Auger motor
• Exhaust blower
• Convection Blower
• Igniter
The warranty does not apply to the following cases, but we can charge to repair.
1. Damage arising from owner's improper handling, installation, operation, maintenance or storage, and unauthorized repairing;
2. Damage arising from non-conforming power voltage;
3. Force majeure;
4. 12 month warranty expires;
5. Any damage and loss arising from uncontrollable factors such as operating environment, voltage, pressure, temperature, and humidity, as well as non-conforming of local environment with the circuit
Claims can only be filed by proof of purchase.
The warranty period starts from the issuing date of receipt.
Within warranty period, components and parts can be replaced and changed, but the cost of labour and freight shall be borne by users.
