Rubber Equipment Paper Machine Air Spring for Felt Section Making Mills Kraft
| US$1.80-7.50 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZAB
Certification
RoHS, ISO 9001:2000, CE
Surface Treatment
Customized
Manufacturing Process
Customized
Material
Rubber
Connection Method
Flange Connection
Function
Air Loading
Pressure Ability
2-8 MPa
OEM Service
Support
Transport Package
Standard Seaworthy Package
Specification
Customized
Trademark
LEIZHAN
Origin
China
HS Code
84399900
Production Capacity
5000PCS /Year
Product Description

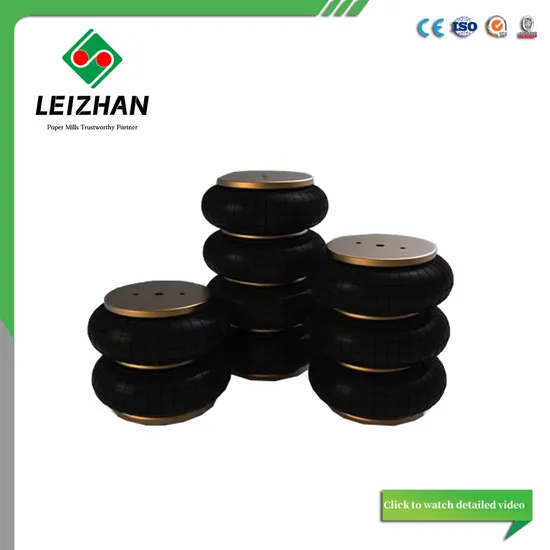

Product DescriptionPaper Machine Air Bellow
The air spring is located in different areas of the paper production process. Air springs consist of a flexible elastomer rubber body with nylon fabric reinforcement, and rustproof plates with an air inlet and mounting blind nuts. The rubber bellows can be used both as vibration isolators and rubber actuators. The air springs absorb up to 99% of the unwanted vibrations avoiding further damage to the machines and metallic structures. At the same time, they reduce noise levels.
Detailed Photos
Product Parameters
It is mainly used in airbag-type doctor blade holders, conveying pressurized air, convenient for controlling the line pressure of the scraper blade and roller surface, and buffering the vibration of the scraper.
| LZ80-01 | LZ160-01 | LZ400-01 | |||
| Maximum load | 88kg | Maximum load | 1251kg | Maximum load | 8958kg |
| Maximum Diameter | 80mm | Maximum Diameter | 175mm | Maximum Diameter | 430mm |
| Natural Diameter | 80mm | Natural Diameter | 160mm | Natural Diameter | 400mm |
| Minimum compression height | 40mm | Minimum compression height | 74mm | Minimum compression height | 82mm |
| Maximum elongation height | 70mm | Maximum elongation height | 190mm | Maximum elongation height | 247mm |
| Component weight | 0.1kg | Component weight | 1kg | Component weight | 4.9kg |
