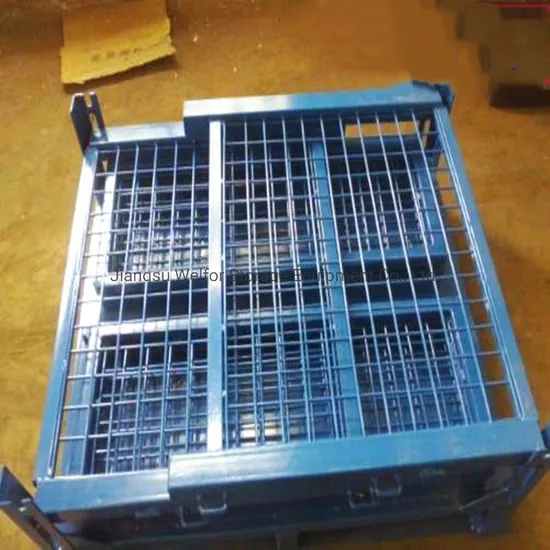

Foldable Stacking Heavy Duty Metal Wire Mesh Pallet Container

Product Description

Foldable Stacking Heavy Duty Metal Wire Mesh Pallet Container
Welfor pallet container
Features A. Stackable: Can be stacked to 4 layers, achieve three-dimensional storage;
B. Collapsible: Save space when not used; C. Made of strong steel, welding with U channel steel at the bottom to guarantee the load capacity;
D. Use bolt structure, easy to open the door and fetch goods;
E. Surface treatment: Galvanization; Bright and clean, corrosion resistance, long service life;
F. Operated with hydraulic trucks, forklifts, elevators and other handling equipment, simple operation, widely used.
Application
Foldable Stacking Heavy Duty Metal Wire Mesh Pallet Container
Technicial data for wire mesh container

Type	Layers	External Size(mm)			Diameter (mm)	Wire Mesh (mm)	Capacity (kg)	Volume (m3)	Foot Height (mm)
		L	W	H
A-5	4	1000	800	840	6.0	50x50	1200	0.52	100
B-5	4	1000	800	840	6.4	50x50	1500	0.52	100
B-5 1/2	4	1000	800	500	6.4	50x50	1000	0.26	100
C-5	4	1000	800	840	4.8	50x50	600	0.52	100
S-5	4	1000	800	840	6.4	50x100	1000	0.52	100
F-5	4	1000	800	840	6.0	50x100	1000	0.52	100
A-7	4	1200	1000	890	6.0	50x50	1500	0.84	100
B-7	4	1200	1000	890	6.4	50x50	2000	0.84	100
S-7	4	1200	1000	890	6.4	50x100	1000	0.84	100
F-7	4	1200	1000	890	6.0	50x100	1000	0.84	100
C-7	4	1200	1000	890	4.8	50x50	500	0.84	100
A-9	4	1200	800	840	6.0	50x50	1200	0.65	100
B-9	4	1200	800	840	6.0	50x50	1500	0.65	100
A-3	4	800	600	640	6.0	50x50	800	0.22	100
C-2	4	800	500	540	4.8	25x50	500	0.19	100
Other specifications can be customized.

Production process
Packing and loading photos
Please provide information for quick quotation
1. Size (Length*Width*Height)
2. Loading capacity per piece
FAQ
1, What is MOQ limitation for rack system?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time
++ As per 20FT container loading, manufacture time is about 10-15 days; Regarding some customized items 20-25 days will be covered.
3, What is payments methods you can accept?
++ T/T and L/C are welcomed.
4, How about your sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for your rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
