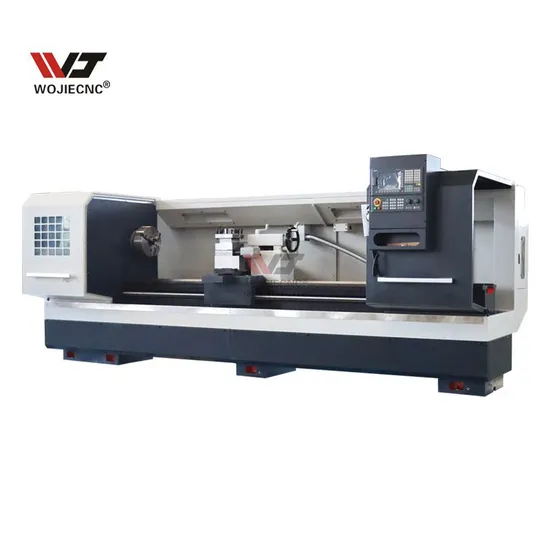

Factory Direct Sales CNC Horizontal Lathe Siemens Fanuk GSK Cak6180 Automatic Flat Bed CNC Lathe Machine for Metal with Live Tooling

Product Description

Product Description
Product Parameters

SPECIFICATIONS	Units	CAK6140	CAK6150	CAK6161	CAK6166	CAK6180
Swing over bed	mm	400	500	610	660	800
Distance between centers	mm	1000/1500/2000/3000
Spindle bore	mm	52mm(opt 80)(opt 105)
Spindle speed range	rpm	21-150,66-500,162-1500(optional:100-1600)
Tailstock center travel	mm	150
Tailstock quill taper	-	MT5
Positioning accuracy	mm	+-0.015
Repeat positioning accuracy	mm	+-0.006
X/Z rapid feed speed	m/min	x:6000 y:10000
Main spindle motor	kw	7.5
Weight for 1000	kg	2550	2600	2650	2750	2850
Weight for 1500	kg	2650	2700	2750	2850	2950
Weight for 2000	kg	3050	3100	3250	3350	3450
Weight for 3000	kg	3850	3950	4050	4150	4250
Dimension for 1000	mm	2750*1650*1700	2750*1650*1750	2750*1700*1800	2750*1750*1850	2750*1750*1900
Dimension for 1500	mm	3200*1650*1700	3250*1650*1750	3250*1700*1800	3250*1750*1850	3250*1750*1900
Dimension for 2000	mm	3700*1650*1700	3700*1650*1750	3700*1700*1800	3700*1750*1850	3700*1750*1900
Dimension for 3000	mm	4710*1650*1700	4710*1650*1750	4710*1700*1800	4710*1750*1850	4710*1750*1900

Detailed Photos
3 jaw chuck Electric 4 station turret
Control system
Standard configuration: GSK
Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin Manual tailstock
2-axis linear guide Using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc. Lubrication system
The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.
Optional accessory
Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
