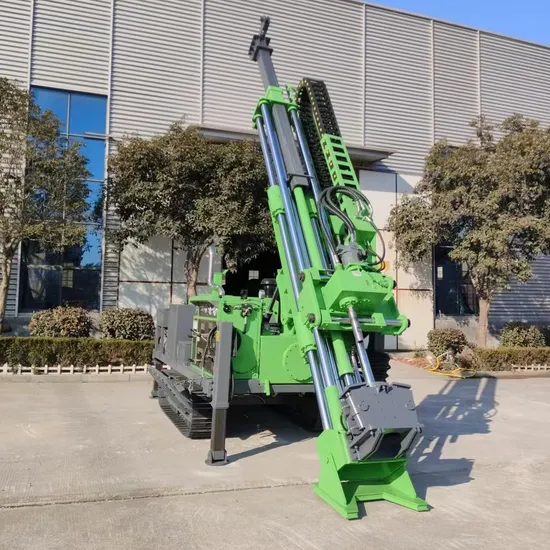

Csqx1000 for Core Diamond Drill Machine for Soil Exploration Projects Core Drilling Rig

Product Description

Product Description The new CSQX1000C is a five-axis fully hydraulic coring drill with more stable performance. The drilling depth can reach 1,000 meters. The drill is a steel crawler type, which is easy to transport and has good wear resistance. It adopts thin-wall diamond rope coring technology, bottom contact multi-angle tower, the drilling angle can be adjusted within the range of 45°-90°, the center of gravity is low, and the overall stability is good.

Model		Unit	CSQX - 1000C
Item
Drilling Capacity	HTW	m	1000
	NTW	m	1200
	BTW	m	1400
Hydraulic System	Rated Pressure	MPa	Main pump 115ml/r, 32MPa; auxiliary pump 96ml/r, 25MPa
	Cooling method	/	Air - cooled + Water - cooled
Engine parameters	Model number	/	Weichai six-cylinder
	Rated power	Kw	129
	Rated speed	rpm	2200
Power head parameters	Maximum torque	N.m	2600
	Maximum speed	rpm	1400
	Feed stroke	m	3.5
	Lifting force	kN	360
	Propulsive force	kN	180
Rope core - winding parameters	Rope capacity	m	1200
	Lifting force	kN	24
	Lifting speed	m/min	110
	Wire rope diameter	mm	6
Mast parameters -	Full height	m	8.5
	Drilling angle	°	45 - 90
	Slip Stroke	mm	1200
Gripper parameters		/	75/89/115
Track parameters	Maximum Climbing Angle	°	20
	Maximum driving speed	km/h	2
Shipping Dimensions	Length*Width*Height	mm	5600*2100*2600
Weight		T	8.8
