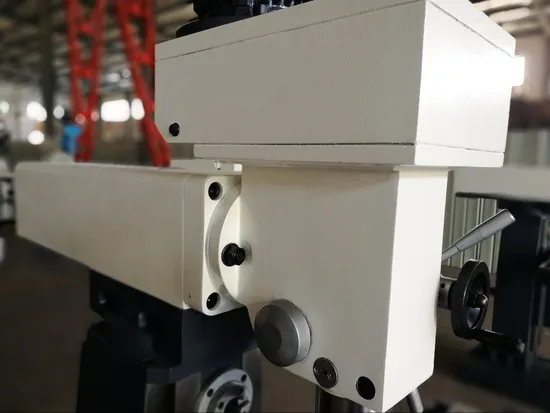

Worktable Manual Sumore Wooden Box Sierra Precision Machining Milling Machine

Product Description

Product Description
50mm horizontal vertical universal milling machine SP2231 fresadora universal cutter mini horizontal vertical milling machine for hobby mini manual vertical milling and drilling machine price sp2208-II/SP2208-III/SP2208-IV SUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine SP2226 Bench Type mini universal Milling Machine is one of our most economic and durable mini universal Milling Machine. It sells very well; it is new condition not used universal Milling Machine. And it is small in size and delicate in design. This milling machine is made in China, but with same quality of Japan milling machine. The main features are as below:
Quick detais
1.Drilling capacity:50mm
2.Horizontal milling dia.:100mm
3.Vertical milling dia.:25mm
4.Head tilt left & right:+45°
4.Spindle taper:ISO30,R8 or MT4
5.Spindle speed: 0-2500rpm
7.Working tabel:800*240mm
7.Power:1100W/2200W
Features/Advantages
1.Three axis hardened treatment, high rigidity.2.vertical horizontal multi-functional ,drilling ,milling, boring operation.3.X axis mechanical feed,Y.Z axis can be added the device4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate
5.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press6.Easily shiftable gear drive ensures power transmission without losses7.With V-belt spindle drive and gear spindle drive8.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
Product Parameters

Model SP2231 SP2232 Drilling Capacity 50 mm Boring Capacity 120 mm End Milling Capacity 25mm Tapping Capacity M16 Face Milling Capacity 100 mm Longitudinal Axis Travel (X) 400 mm Cross Axis Travel (Y) 230 mm Headstock Axis Travel (Z) 120 mm Effective Table Size 800 x 240 mm Spindle Taper MT4 / ISO30 / R8 Spindle Speed Range H: 230 - 1,825 rpm L: 60 - 1350 rpm Distance Between Spindle to Table 350 mm Head Tilt Angle (Left / Right) 45° / 45° Packing Size (LxWxH) 1,450 x 1,850 x 2,450 mm Motor Power 850 / 1,500 / 2,200 w Spindle speed 115-1750rpm Spindle stroke 120mm Table size 800x240mm Table travel 320X230x350mm Main motor power 0.85/1.5kw Packing size 1140x1120x2200mm N.W./G.W. 610/770kgs

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
