Single/Two/Three Phase 80A Coil 6VDC 9VDC 12VDC 24VDC Magnetic Latching Relay for Energy/Power/Electric/Electricity Meter
| US$1.00-1.50 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
TP41-26
Phase
1
Electricity Type
Ac
Number of Pole
1
Load
High Power Relay
Protective Characteristics
Enclosed Relay
Action Principle
Electromagnetic Type
Size
Miniature
Type
Electric Parameter Relay
Contact Form
1A, 1b
Max.Switching Current
80A
Coil Type
Single Coil or Double Coils
Coil Voltage
6VDC, 9VDC, 12VDC, 18VDC, 24VDC, 48VDC
Standard
IEC62055-31 UC1
Rosh
Rosh Compliant
Transport Package
Carton/ Pallet
Specification
38mm*30mm*16.5mm
Trademark
TOPRO
Origin
China
HS Code
85364900
Production Capacity
100000000PCS
Packaging & Delivery
Package Size
36.00cm * 30.00cm * 30.00cm
Package Gross Weight
9.500kg
Product Description

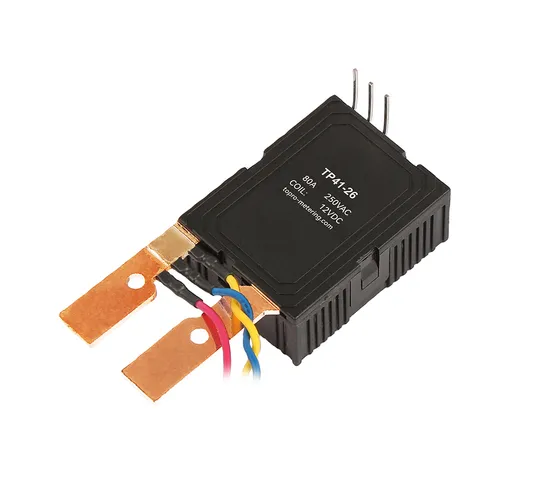

Polarized latching relay TP41-26, with continuous switching current capability up to 80A. The relay coil can be designed to single coil or double coil with coil voltage from 5VDC,6VDC,9VDC,12VDC etc. The relay is designed and manufactured in accordance to IEC 61810-1 as well as meet the requirements of IEC 62055-31 UC1.1. Both Single coil and double coil can be customized, the coil rated voltage can be 5VDC-48VDC;
2. Multi-layer blades, low temperature rise;
3. Silver alloy contacts materials AgSnO2, with reliable electrical endurance;
4. Outline dimension:39mm×30mm×16.5mm;
5. Latching relay with 250 micro Ohm shunt 300 micro Ohm shunt
6. Cost Efficiency.
Coil data
| Rated Coil voltage | 6VDC, 9VDC, 12VDC,18VDC, 24VDC, 48VDC |
| Single coil power | 1W (Or 1.5W) |
| Double coil power | 2W(Or 3W) |
| Pulse width | 50ms Max |
| Pulse time | <20 ms (At rated voltage) |
Contact data
| Contact materials | AgSnO2 |
| Contact arrangement | 1A(B) |
| Contact resistance | 1.0mΩ Max(Test under 1A/6VDC) |
| Max switching current | 80A |
| Max switching voltage | 250VAC |
| Max switching power | 20000VA |
| Mechanical life | 1×105 OPS |
| Electrical life | 1×104 OPS |
Standard winding(Coil voltage can be customized)
| Rated coil voltage(VDC) | Max operating voltage(VDC) | Coil resistance (1±10%)(Ω) |
| Single winding | ||
| 6 | 4.8 | 36 |
| 9 | 7.2 | 81 |
| 12 | 9.6 | 144 |
| 24 | 19.2 | 576 |
| 48 | 38.4 | 2304 |
| Double winding | ||
| 6 | 4.8 | 18+18 |
| 9 | 7.2 | 40.5+40.5 |
| 12 | 9.6 | 72+72 |
| 24 | 19.2 | 288+288 |
| 48 | 38.4 | 1152+1152 |
Characteristics
| Insulation resistance | 1000MΩ |
| Dielectric strength between coil | 4000V 1 minute |
| Dielectric strength between contact | 1800V 1 minute |
| Creepage distance | 8mm |
| Shock resistance | 147m/S2 |
| Vibration resistance | 10-55HZ amplitude 1.5mm |
| Ambient temperature | -40-+85ºC |
| Weight | Approx.45g |
| Construction | Dust protection |
Outline dimensions and circuit diagram
