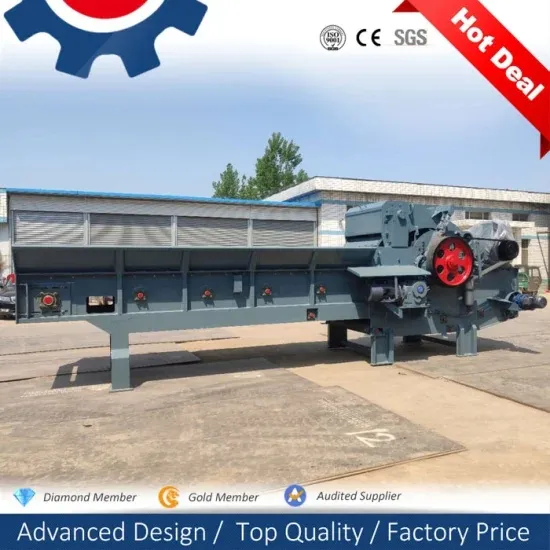

Manufacturer Industrial Diesel Engine Wooden Truck Chipping Machinery

Product Description

✠Stable performance diesel engine wood log crushing machine in Phillippines✠

▸Product Details of wood log crushing machine

Our large wood log crushing machine has a wide range of raw materials, which can be used to process wood such as all kinds of footpath wood, plank, log and all kinds of non-wood raw materials such as all kinds of bulk straw, cotton wood, reed, etc. The machine adopts the intelligent feeding of chain plate type, which can adjust the feeding speed automatically according to the load of main motor.
This chain plate type composite wood log shredder is made to break into the wood and block machine, it adopts chain plate type intelligent feeding, which can automatically adjust feeding speed in accordance with main motor load, so that the machine can run with normal load and preventing no-load or overload. In consequence, the material feeding is smoother, and productivity is greatly improved.

Model	WD-1400-500	WD-1400-800
Knife roller diameter(mm)	800	1100
Knife roller speed(rpm)	926	926
Blade (piece)	24	24
Power(KW)	200	250
Output(t/h)	18-20	25-28
Feed inlet(mm)	1400*500	1400*800
Weight(t)	18.6	24.6
DimensionL*W*H(mm)	8600*2480*2800	11000*2480*3250

Contact Now for Catalogs & Best Price!

▸Usage of Multifuntional wood log crushing machine

★ Wood pulverizer widely used for crushing wood, plywood trim, crop stalks slabs, battens, straws, palm kernel, coconut shell and you can even call it a waste wood crusher.
★ Processing nail-bearing lumber, wooden pallets, site waste templates, wooden brackets, tree stumps, waste furniture, branches, wood, template waste, housing demolition waste, doors and windows... etc.It can be used in biomass power plant, fuel and fire as coarse crushing.
Contact Now for Catalogs & Best Price!

▸Features of wood log shredder

★ Processing nail-bearing lumber, wooden pallets, site waste templates, wooden brackets, tree stumps, waste furniture, branches, wood, template waste, housing demolition waste, doors and windows... etc.It can be used in biomass power plant, fuel and fire as coarse crushing.
★ Wood log grinder can also be processed with nail wood, wood tray, site waste template, wooden bracket, tree stump, waste furniture, branches, wood, template waste, housing demolition waste... etc.
★ Automatically adjustable material feeding system which is to be changed by the crusher present capability.
★ The materials feed can be quick loading or slow changing depending on the controlling order feedback from the grinding part of the crusher by pr rate according of the main motor, avoiding idle running.
★ With experienced design and wood log grinder parts the crushing possesses high throughput capacity and produces high quality chips. Contact Now for Catalogs & Best Price!

▸Installation of wood pulverizer

Wood pulverizer has marched the device of car body, is set to the side of one end of the car body and the formation of a timber wood shattering of rotary crushing plant, located in the rotary crushing device of the upper part of the blade supply device, is from the bottom of the rotary crushing device in the direction of travel of the vehicle at the other end side of extension set to break a rotary device broken to external discharge out of the wood out of the device and is configured to travel between rotary crushing plant and out of the device driver device, rotary crushing device, blade supply device, and out of device driver source drive.
Contact Now for Catalogs & Best Price!

▸Delivery of wood pulverizer

▸We waite for your visit and offer customized service of wood pulverizer
