Product Description

Plastic PVC HDPE PPR Drainage Water Sewage Electric Conduit Pipe Hose Tube Conical Twin Screw Extruder Extrusion Production Making Machine
Description:

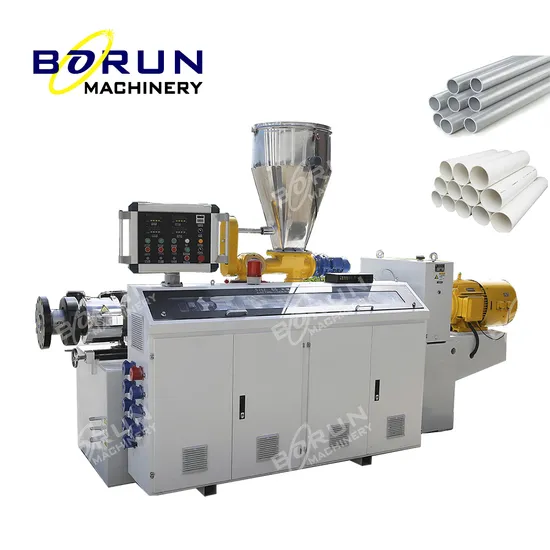

The PVC Pipe production line is mainly used in the area of agricultural water supply system, architectural water supply system(water supply and drainage pipe), pavement of cables and as well as different diameter and thickness of PVC Pipes. The complete PVC Pipe production line is composed by conical twin screw extruder, pipe extrusion mold, vacuum calibration tank, haul off machine, cutter and stacker, belling machine(socketing machine). The main extruder and haul off we adopts ABB inverter, vacuum pump and motors adopt high quality famous brand. Haul off machine has two claws, three claws, four claws, six claws and eight claws accord to different pipe diameters. For pipe cutting machine has saw and planetary cutting type, which additionally attached with the meter counter and intensifying device. The production line is easily installation and operation, simple maintenance with reliable quality.
Features: Complete line solution from A to Z, including raw materials. Suitable to make U-PVC, C-PVC, M-PVC pipe extrusion, PVC Pipe extrusion line; Optional to adopt conical twin screw extruder and parallel with twin screw extruder. Supply formula for the plastic PVC pipe project. Life long after sale service and technology support. Pipe Diameter range: 10-800mm. Best Economic Advise on the extrusion production line to save the production cost. Technical Parameters:

Diameter Range(mm)	Extruder Type	Extrusion Power (KW)	Max. Capacity (kg/h)
∅16-63	SJSZ51/105	18.5 AC	120
∅16-40 Dual	SJSZ51/105	18.5 AC	120
∅16-63 Dual	SJSZ65/132	37 AC	250
∅16-40 Four	SJSZ65/132	37 AC	250
∅32-110	SJSZ65/132	37 AC	250
∅63-200	SJSZ65/132	37 AC	250
∅63-110 Dual	SJSZ80/156	55 AC	450
∅110-250	SJSZ80/156	55 AC	450
∅200-400	SJSZ80/173	75 AC	600
∅315-630	SJSZ92/188	110 AC	800
∅500-800	SJSZ95/192	132 AC	1000

Spare part list (free of charge)

No.	Name	Qty.	Application
Machinery part:
1	Oil seal	1 pc.	Gearbox high-speed shaft
2	Screw unload tools	1 set	Unload screw
3	Sprayer	30 pcs.	Vacuum tank and spray tank
4	Seal	5m
5	Rubber block	20pcs.	Haul-off
6	Air pipe	5m	Cutter
7	Saw	2pcs	Cutter
8	Heating pipe	5pcs	Belling machine
Electrical part:
1	Thermocouple(3m)	4pcs.	Extruder
2	Temperature control	2pcs	Extruder
3	Small AC contactor	5pc	Electric cabinet
4	Small circuit breaker	2pc
5	Potentiometer	2pc
