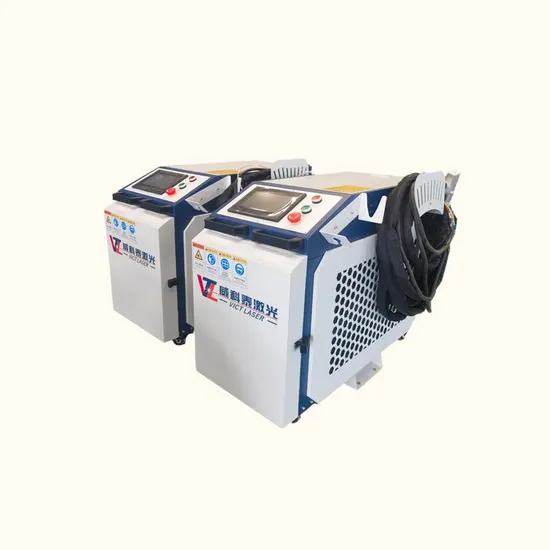

Metals Processing 1500W Welding Machine for Stainless Steel Handheld Laser Welder

Product Description

China Victlaser
1500W Handheld Water Cooling Fiber Laser Welding Machine

Product Advantages:
1.It's small,portable and convenient for people to operate.
2.More energy efficient! More environmentally friendly.
3.Long service life,maintenance-free.
4.High integration, good stability, long-term reliable continuous work.
5.using fiber laser,High electro-optical conversion efficiency and Low power consumption of the whole machine.

Product Parameters
Model NO.	HWF-1500C
Type	Portable Welding Machine
Control	Handheld
Laser Classification	Fiber Laser
Frequency	1-5000Hz
Cooling Method	Water Cooling
Working Mold	Continuation/Modulation
Welding Speed	10-160cm/min
Depth of welding	max.5mm
Technical Class	Continuous Wave Laser
Power Density	Deep Fusion Welding
Laser Wave length	1080±5nm
Power Adjustment Range	10-100%
Length of Fiber-Optical	10m
Material Thickness	<3.5mm(Depends on The Material)
Wire Diameter	0.8/1.0/1.2/1.6/2.0 mm
Output focal length	150mm
Scanning range	Line 0-5mm@welding; Line 300mm@cleaning
Port	1 way gas
Power consumption	≤6KW
Air pressure requirement	4-6Bar(Select nitrogen,argon according to process requirements.)
Electricity demand	1500W @ AC220VAC 50/60Hz
Specification	1350*1170*1340
Positioning	Red Guide Laser

Packing&Delivery
Transport Package	Wooden Box
Trademark	Victlaser
Origin	Shandong,China
Production Capacity	500sets/Month
Package Size	120.00cm * 70.00cm * 130.00cm
Package Gross Weight	150Kg

Samples
Shandong VICTLASER Technology Co., Ltd. is a set of products for design, R&D, production, sales and service as one of the professional laser equipment manufacturers, the company is located in the first place of the rising sun, the beautiful coastal city - Shandong Rizhao.It has a good regional advantage and industrial base, the factory environment is beautiful and the transportation is convenient.
VICT LASER has 3000 square ,meters of standardized plant,annual production capacity of 200 sets.The R & D design is the main aim, with 2 invention patents, 21 utility model patents, 3 software copyrights,VICTLASER is a national high-tech enterprise, science and technology small and medium-sized enterprises, municipal specialized new enterprises.
VICT LASER strictly implement the ISO9001 quality system for each process of the product strict control, the use of advanced intelligent information management system, comprehensive improvement of enterprise resources. VICT LASER developed fiber laser cutting machine, precision fiber cutting machine, excitation welding machine products are widely used in machinery, chemical industry, medical industry, to provide users with perfect cutting solutions. and at home.There are several sales and service outlets that can provide timely and thoughtful services to users.

"Pioneering, innovation, service and value-added" are company's culture,with scientific management, passionate and dynamic entrepreneurial team. The meaning-"safety production, quality first" will be throughout every detail of the company's operation, to provide customers with quality products and and service.

Pre-sale Service:
We provide relevant technical guidance and all the information about machines as our customers need. We answer various questions from our customers and assist them with or design for them feasible laser processing programs.We also have demo centers for our customers to have a look at our products,make samples or do a test run.
In-sale Services:
We go to the venues where our customers use our machines and help them plan and design their production base,water,electricity,air equipment etc.We provide our customers a full set of manual and train their operators for free.The training includes processing operation,daily maintenance and safe operation training to ensure our customers can master the operation regulations,methods and produce by themselves,We also train our customers on basic knowledge of laser,safety,and equipment maintenance.
After-sale Services:
We supply different training in Operation process , Equipment daily maintenance and Operation safety, to make sure all the customers can operate equipment independently.
After we have installed and tested the equipment on site,we will provide one-year free maintenance after the customer has checked and accepted it. We will also send technicians irregularly to the customer's factory for routine maintenance, inspection and problem solving.
FAQ
Q:How to select suitable machine for me?
A:Please Tell us your material ,welding effect and other detail problems by words,pictures or video.We will recommend you the suitable machine for you
Q:How to operate the machine ?
A:We will send you the User operational book and training Video. If you need, we can support engineer door training.
Q:How do you ship the products?
A:By sea.
Q:How can you guarantee quality?
A:Always a pre-production sample before mass production; Always final Inspection before shipment.
