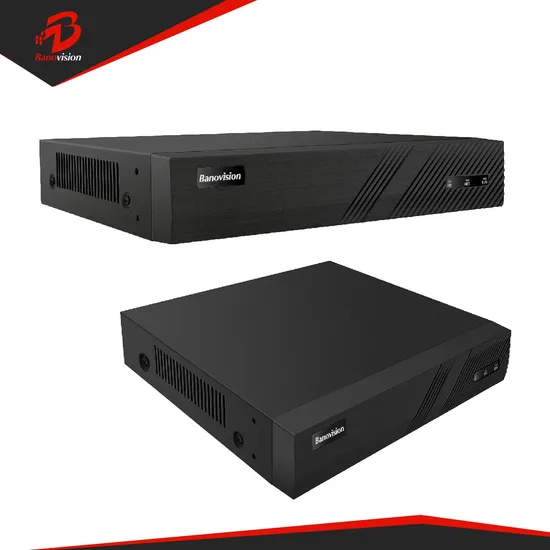

H. 265 16CH Security Digital Video Recorder Xvr CCTV 8MP DVR
| US$10.00-140.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
BA-1D3116-Q3
Compressed Format
H.264
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
Input: 16CH BNC/ Output: 1CH VGA, 1CH HDMI
Audio Input/Output
Input: 1CH RCA/ Output: 1CH RCA
Remote Control
With Remote Control
Compression Format
H.265
Video Input
16CH
Tvi/Ahd/Cvi/CVBS
Tvi Is Best Image Quality
Max.Harddisck
Support 8tb/PC
Transport Package
Neutral Packing
Specification
Carton
Trademark
Banovision or OEM
Origin
China
HS Code
8521909090
Production Capacity
10000PCS/Month
Product Description
Features| * Support H.265/H.264 video formats | ||
| * Support audio over coaxial cable(only for TVI cameras) | ||
| * Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access | ||
| * 16-channel BNC input | ||
| * Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 | ||
| * Long transmission distance over coaxial cable | ||
| * Support mainstream cameras of ONVIF and RTSP protocols |
| Model | BA-1D3116-Q3 | |
| Video/Audio Input | ||
| Analog Video Input | 16-ch, BNC | |
| IP Video Input | 8-ch(up to 16-ch after analog camera conversion) | |
| Supported Analog Camera Types | Support AHD input: | |
| 8MP@15fps | ||
| 5MP@20fps | ||
| 4MP@30fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support TVI input: | ||
| 8MP@15fps | ||
| 5MP@20fps | ||
| 4MP@30fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVI input: | ||
| 8MP@15fps | ||
| 5MP@25fps | ||
| 4MP@30fps | ||
| 1080P@30fps | ||
| 720P@30fps | ||
| Support CVBS input | ||
| Audio Input | 1-ch, RCA | |
| Audio Compression | G.711U | |
| Video/Audio Output | ||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| HDMI Output | 4K(3840X2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | |
| Audio Output | 1-ch, RCA | |
| Synchronous Playback | 16 | |
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 | |
| Two-way Audio | 1-ch, RCA | |
| Network | ||
| Incoming Bandwidth | 80Mbps (Up to 112Mbps after all analog channel conversion) | |
| Outgoing Bandwidth | 160Mbps | |
| Remote Users | 128 | |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |
| Browser | IE(IE10/11) for Windows | |
| Firefox (version 52.0 and above) for Windows | ||
| Chrome(version 45 and above) for Windows | ||
| Edge(version 79 and above) for Windows | ||
| Recording Resolution | 8MP Lite/5MP Lite/4MP Lite /1080P/720P/D1 | |
| Recording Frame Rate | Main stream: | Sub stream: |
| 8MP Lite@8fps | D1@8fps | |
| 5MP Lite@12fps | D1@12fps | |
| 4MP Lite@15fps | D1@12fps | |
| 1080P@15fps | D1@12fps | |
| 720P@30fps | D1@12fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |
| Audio Bit Rate | 64Kbps per channel | |
| Decoding | ||
| Capability | Analog: 16 x 8MP Lite@8, 16x 5MP Lite@12, 16x 4MP Lite@15, 16 x 1080P@15, 16 x 720@30 | |
| IP: 24 x D1@30, 16 x 720P@30, 8 x 1080P@30 | ||
| Hard Disk | ||
| SATA | 2 SATA interface | |
| Capacity | Up to 8TB for each HDD | |
| (The maximum HDD capacity varies with environment temperature) | ||
| General Alarm | ||
| General Alarm | Motion detection | |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |
| External Interface | ||
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface | |
| USB Interface | Rear panel: 1 x USB3.0, Front panel: 1xUSB2.0 | |
| Serial Interface | 1 x RS485 | |
| Alarm In | 4 | |
| Alarm Out | 1 | |
| General | ||
| Power Supply | 12V DC | |
| Power Consumption: ≤ 12 W( without HDD ) | ||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |
| Dimensions(W×D×H) | 380mm ×326mm× 53mm (15.0" × 12.8"×2.1") | |
| Weight ( without HDD ) | ≤2.0 Kg ( 4.4lb ) | |
Rear Panel
Some Images of Software
