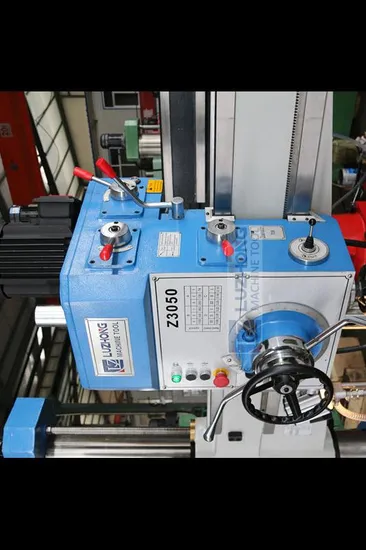

Machinery radial drilling machine Z3050X16 Radial Drilling Machine
Basic Info.
Model NO.
Z3050X16
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Machinery radial drilling machine Z3050X16 Radial
Max.drilling dia (mm)
50
spindle to table
260-1150mm
spindle to column
360-1600mm
Spindle travel
210mm
Spindle cone
MT5
Spindle speeds range
78, 135,240,350,590,1100rpm
Spindle speed step
6
Spindle feeding range
0.10-0.56rpm
Spindle feeding step
6
Rocker rotary angle
90;
Main motor power
4kw
Movements motor power
1.5kw
Weight
2500kg
Overall dimensions
2170x950x2450mm
Transport Package
Plywood Case
Specification
2170*950*2450mm
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459290000
Production Capacity
600 Set Per Month
Product Description
Machinery radial drilling machine Z3050X16 Radial Drilling MachineProduct Description
Detailed Photos
Product Parameters
The main performance characteristics:
Mechanical transmission
Mechanical clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
Product main technical parameters
| SPECIFICATIONS | ZQ3050×16 |
| Max.drilling dia (mm) | 50 |
| Distance from spindle axis and column surface(mm) | 260-1150 |
| Distance between spindle axis and column surface (mm) | 360-1600 |
| Spindle travel (mm) | 210 |
| Spindle cone(MT) | 5 |
| Spindle speeds range (r.p.m) | 78, 135,240,350,590,1100 |
| Spindle speed step | 6 |
| Spindle feeding range(r.p.m) | 0.10-0.56 |
| Spindle feeding step | 6 |
| Rocker rotary angle (°) | ±90° |
| Main motor power (kw) | 4 |
| Movements motor power (kw) | 1.5 |
| Weight (kg) | 2500 |
| Overall dimensions (mm) | 2170×950×2450 |
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
