Jieda LWL450 Model Horizontal Centrifugal Separator for Salt

Product Description

Jieda LWL450 Model Horizontal Centrifugal Separator for Salt
Features & Uses of LWL450 Model Horizontal Centrifugal Separator:
The LWL450 Model Horizontal Centrifugal Separator is a filtering centrifuge with horizontal screw discharge. With stable running, good washing effect, high handling capacity, and high economic efficiency, the machine can carry out continuous feeding, washing, dehydrating and discharging of suspensions when running at full speed. It is a piece of efficient separation equipment for solid-liquid separation. The machine is suitable for solid-liquid separation of suspensions containing 10%-80% solid particles (linear or crystalline) with granularity of 0.13-5mm (better effect for 0.2-2mm) such as citric acid, gulonic acid, salt, fruit juice, ammonium sulfate, urea, etc. in chemical industry, pharmacy, food, metallurgy, mining, etc. Designs of the machine comply with the GMP standard.
LWL450 Model Horizontal Centrifugal Separator is suitable for Salt or any Crystal Production:
Work Principle of LWL450 Model Horizontal Centrifugal Separator:
1. Continuous operation with the highest handling capacity2. Wide application with various types of bowls and spiral rollers3. Reasonable power configuration with low energy consumption4. Parts that contact materials are made of austenitic stainless steel.5. Imported bearings, seals, and independent circulating oil lubrication system are adopted.6. The closed housing can protects the operator and site environment.7. Because of its small volume and convenient installation, there is no need to make any complex foundation.8. Safe and reliable running. The V type unloading and overload protective devices are adopted.
Main Technical Parameters of LWL450 Model Horizontal Centrifugal Separator:

Model	Feed Quantity(m³/h)	Power(KW)	Speed(r/min)	Separation Factor(ω²r/g)	Dimensions L*W*H(mm)	Weight(KG)
LWL200	1.5	3.0	4350	2110	700*880*570	230
LWL250	3.5	5.5	3700	1913	910*1050*800	560
LWL320	7.0	7.5	3300	1950	940*1165*950	700
LWL350	10	11	2800	1530	1170*1360*1085	900
LWL400	15	15	2900	1880	1150*1500*1150	1000
LWL450	20	22	2500	1570	1390*1500*1315	1100
LWL520	25	30	2200	1406	1480*1920*1470	1800
LWL630	35	45	1800	1140	1560*2110*1650	3700
LWL700	50	55	1800	1400	2150*2100*1650	4000
LWL1000	100	90	1600	1400	2600*2700*2600	8000

Drawing of LWL450 Model Horizontal Centrifugal Separator:

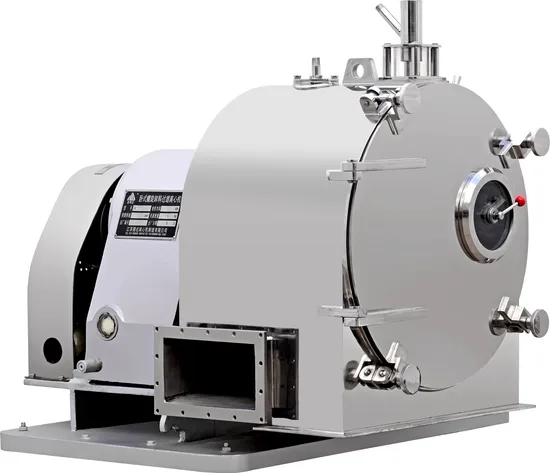

Photo of LWL450 Model Horizontal Centrifugal Separator:
Company Profile:
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing, product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
Certificates of Horizontal Centrifugal Separator:
Our Centrifuge Workshop:
Jieda has high-precision CNC machining tools and machining centers, advanced production equipment, fine technique and strict and perfect quality management system, and moreover, we gather professional elites and science and technology team with leading level, so as to make full use of new technologies, new techniques and new materials to guarantee stability and reliability of products. Our product quality originates from advanced manufacturing means, and the concept of fine products stems from continuous innovation.
