High Precision Automatic Swiss Type CNC Lathe Machine for Slender-Workpieces Processing

Product Description

Product Description

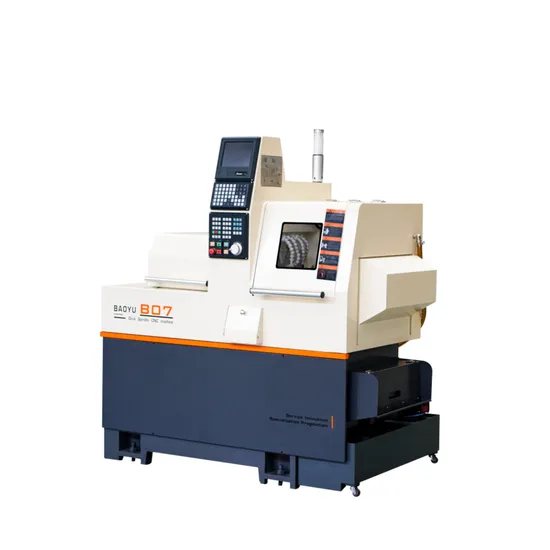

High Precision Automatic Swiss type CNC Lathe Machine for Slender-Workpieces Processing
-B07 is a new model of six axis sliding headstock lathe.
-Main Spindle and sub spindle can process at the same time.
-Suitable for processing profile diameter ≤ Φ 7mm.
-Mainly process ultra-small diamater precision parts, Such as watch parts, probes, connector plugs etc.
Product Parameters
B07 Dual Spindle Swiss type Cutting CNC Lathe Machine

Power	Rated voltage	Three-phase AC 380V
	Rated frequency	50HZ
	Total Input Power	8kW
CNC System	CNC Control System	BYSK YZ190
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Y Axis Pulse Equivalent	0.001mm
	Z Axis Pulse Equivalent	0.001mm
	Cutting Speed	1-4000mm/min
	X Axis Rapid Feed Speed	18000mm/min
	Y Axis Rapid Feed Speed	18000mm/min
	Z Axis Rapid Feed Speed	18000mm/min
Main Spindle	Maximum Bar Diameter	Φ7mm
	Main Spindle Through-hole Diameter	Φ9mm
	Main Spindle Center Height from Ground	940mm
	Main Spindle Speed	0-7000r/min
	Main Spindle Motor Power	1.5kW
Sub Spindle	Maximum Clamping Diameter	Φ7mm
	Sub Spindle Speed	0-7000r/min
	Sub Spindle Motor Power	1.5kW

Travel	X1 Axis Travel	40mm(Diameter)
	Y1 Axis Travel	100mm
	Z1 Axis Travel	180mm
	X1 Axis Servo Motor Power	0.4kW
	Y1 Axis Servo Motor Power	0.4kW
	Z1 Axis Servo Motor Power	0.4kW

Travel	X2 Axis Travel	340mm(Diameter)
	Y2 Axis Travel	80mm
	Z2 Axis Travel	130mm
	X2 Axis Servo Motor Power	0.4kW
	Y2 Axis Servo Motor Power	0.4kW
	Z2 Axis Servo Motor Power	0.4kW
	Guide Rail Form	Linear Guide Rail
Main Spindle Tools	8*8 Square Tool	6pcs
	6104 Extension Rod	3pcs
Power Head on the Side of the Main Spindle	ER11	2pcs
	Speed of Rotation	0-6000r/min
	Power	0.4kW
Sub Spindle Tools	6104Extension Rod	5pcs
Power Head on the Side of the Sub Spindle	ER11	2pcs
	Speed of Rotation	0-6000r/min
	Power	0.4kW
Cooling System	Cutting Oil Motor Power	0.48kW
	Cooling Box Capacity	100L
Lubrication System	Motor Power	35W
	Capacity	2L
Machine Size	Length * Width * Height	1660*1030*1700mm
	Machine Weight	1200kg

CNC System	YZ190	BYSK
Main Spindle		BYSK
Main Spindle Motor	1.5kW Absolute Value Servo Motor	Inovance+ Lines
Sub Spindle Motor	1.5kW Absolute Value Servo Motor	Inovance+ Lines
X1 Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+ Lines
Y1 Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+ Lines
Z1 Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+ Lines
X2 Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+ Lines
Y2 Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+ Lines
Z2 Axis Motor	0.4kW Absolute Value Servo Motor	Inovance+ Lines
Guide Rail		Taiwan HIWIN/PMI
Screw Rod		Taiwan Joint Venture

Detailed Photos
Inner Structure Details Introduce:
--1. B07 With rich combination configuration of end-face drilling,boring, transverse power head,reduce standby time.
--2. Back equiped with Y-Axis, can realize composite processing, Back side and Main spindle side work together.
--3. Gang tooling structure,move left and right, Fast tool change and good rigidity.
--4. The main spindle part : Equiped with 6pcs square tools, side 2pcs live head tools, can move up and down,left and right. End-face with 3pcs drilling tools.
--5. The sub spindle part: Equiped with 5pcs end-face tools, Side 2pcs live head tools, move up and down.
B07 CNC Lathe will configurated with bar feeder, with high-pressure oil pump,oil mist machine, improve the performance,extend the life of lathe.
Processed Product Display

Some Suggestions
--Max profile diameter within 7mm, suggest model B07,CK1107. B07 is with dual spindle type, CK1107 is single spindle type.
--Max profile diameter within 13mm, suggest our model B13,CK1113.
--CK0620A2 particularly suitable for processing of complex-shaped parts such as linear/taper/arc threads, Configurated with center frame can process slender shaft parts.
--CK0625A is suitable processing of various precision parts such as instruments/meters/electronic connectors/optics/ automotive and motorcycle parts/small hardware.
--CK32A3 is multi-functional Turning&Milling CNC Lathe, CK32A3-B is with dual spindle based on CK32A3.
--X42 is slant-bed cnc lathe, suitable for processing of shaft/disc parts with complex/variety of sizes/high precision request.
--More details pls contact us, or send your drawings of profiles, we will give you professional recommendation.
Company Profile
Anhui Yuzhou Machine Tool Co.,ltd (BYSK Baoyu CNC ) is a comprehensive high-tech enterprise integarting R&D,Production,Sales &services of CNC system, CNC machine tool, automatic production line, Industrial robot, Internet of things and other products. BYSK CNC formerly known as Zhejiang Baoyu CNC Machine Tool Co.,ltd, and has a manufacturing base covering an area of 35,000 square meters in Taizhou,Zhejiang; It has a R&D center in Hangzhou, named as Hangzhou AOGE CNC Technology Co.,ltd. 2013 year, Anhui Yuzhou Machine Tool Co.,ltd bulit at Anhui Guangde city, covers 100,000 square meters.
We company specializes in the production of CNC SWISS-type/Sliding Headstock Lathes,High-Precision Gang-type CNC Lathes,Turning&Milling Compund Centers, Flat Bed CNC Lathe Machines,Slant-Bed CNC Lathes, Horizontal CNC Lathes, Vertical CNC Lathes,Single spindle CNC Machinery,Automatic Double-Spindle Lathes etc. Our Lathes all adopts absolute value servo and bus connection. It's over 10 on invention patens, utility models and design patens. It's products are widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories. Cost-effective products are ideal equipment for automatic batch production in all fields.
We adopts modern management concepts, deepends internal managements, we continuously improved the manufacturing process and services of products, it has successfully passed ISO9001(2016 Quality Management System), ISO14001(2016 Environment Management System), Measurement Management System Certificate, and obtained Good Standardization Certificate, Otherwise, we products also have passed CE Certificate and other authoritative certifications.
As an independent production enterprise, we always have the concept of improving the added value of individual products, Implemented the mission of "Provide high-quality products and best servises, and create the most hightest value for our customers", Carry out the business philosophy of " Service,Innovation,Specialization,Pragmatism", Finally realizes our vision of "Provide the most cost-effective machine tools for the world."
Packaging & Shipping
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.
