Double Tilt Jcb Excavator Hydraulic Quick Attachments Couplers for Sale

Product Description

Double Tilt JCB excavator hydraulic quick attachments couplers for sale

Product Description
Excavator quick connector, also called quick change, quick connection, quick joint. Excavators equipped with quick connectors can quickly install and switch various front-end attachments (buckets, ripper, breaker, hydraulic shears, etc.). It is an essential device to achieve multi-functionality of one machine, saving time, reducing labor intensity and improving excavator efficiency.
Hydraulic breaker features:
1. A safety pin is installed on each quick connector to ensure that it can work normally when the quick connector cylinder fails.
2. A hydraulically controlled one-way valve is installed on each cylinder to ensure that the quick connector can work normally when the oil circuit and circuit are cut off.
3. Use high-quality environmentally friendly paint with low pollution. The primer uses epoxy ester primer and the topcoat uses polyurethane topcoat
1. Material: High-strength manganese steel and structural integrated mechanical design are used, which is durable and suitable for assembly requirements of various tonnage excavators.
2. Structure: The structure is reasonable, which minimizes the loss of excavator digging force.
3. Pin shaft: Made of high-quality alloy steel 40Cr, with added quenching and tempering process, it has higher strength and is more wear-resistant.
4. Installation: The electric control switch controls the electromagnetic reversing valve, and the pilot oil pressure of the excavator is used to push the connector cylinder to rotate the grab hook to achieve the connection and disassembly of the shaft. After installation, the cylinder is self-locking.
5. Operation: Easy to operate, the driver controls and installs it in the cab, and only needs to manually insert the safety pin. 6. Cylinder: The imported brand NOK sealing kit is used, and the quality is much higher than other domestic sealing brands, which greatly reduces the probability of oil leakage in the cylinder, greatly improves the service life of the product, and reduces the failure rate. The piston rod is modulated and plated, which is durable, wear-resistant and corrosion-resistant.
1.Mechanical quick coupler:
Equipped with mechanical wrench, suitable for 15 ton yinei
2.Hydraulic quick coupler:
Installed by hydraulic control, simple to use and easy to operate

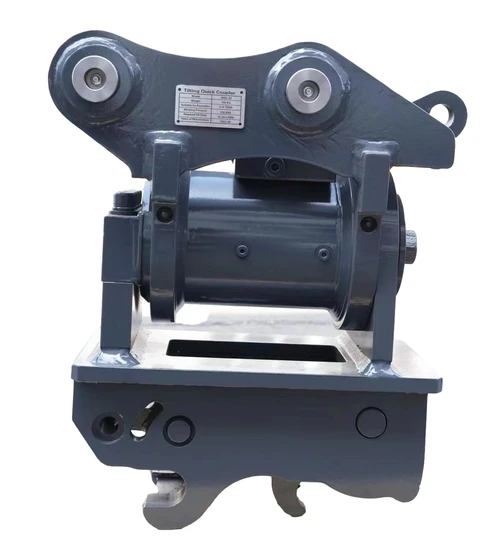

3.Tilt quick coupler:
Can be tilted 90 degrees to the left and right, suitable for complex working conditions
Accessory products
We Can Provide Following Hydraulic Breaker Parts (more than these)

Hammer Parts	Main Body	Back Head	Charging Valve	Cylinder	Seal Retainer
Socket Plug	Piston	Adapter	Valve	Valve Plug	Valve Sleeve
Front Head	Grease Nipple	Rod Pin	Stop Pin	Rubber Plug	Front Head Pin
Ring Bush	Thrust Bush	Upper Bush	Front Cover	Tool Bush	Lower Bush
Rod Moil Point	Chisel	Washer	Through Bolt	Side Rod	Hex Nut
Air Check Valve	Valve Adjuster	Accumulator	Accumulator Body	Accumulator Cover	Socket Bolt
Charging V/V	Diaphragm	Seal Kit	O-Ring Seal	Gas Seal	Step Seal
Buffer Seal	Dust Seal	U-Packing	Back-up ring	Side Bolt	Upper Cushion
Down Cushion	Tool Set	N2 Gas Charging Set	N2 Gas Cylinder	B-3way valve assy

Model Apecifications

Gross Weight	1000kg
Packing volume	1500*880*900mm

Model	Unit	MINI	ZSP02	ZSP04	ZSP06	ZSP08	ZSP10	ZSP17	ZSP20
Length	mm	300-450	550-595	590-630	795-825	880-980	980-1060	1050-1250	1050-1250
Height	mm	250-280	312	320	410	520	608	620	620
Width	mm	170-230	270-300	300-355	365-420	460-500	510-590	580-650	580-680
Pins center distance	mm	33208	225-285	285-360	370-420	430-500	470-550	540-600	540-600
Arm width	mm	90-140	155-200	160-230	220-275	300-350	340-420	420-500	420-500
Cylinder stroke	mm	35	75	75	85	70	80	80	80
Vertical pins center distance	mm	150-170	200	200	260	325	385	400	400
Weight	kg	30-50	70-100	70-100	220-290	370-420	500-600	650-900	700-1000
Working pressure	bar	40-200	40-200	40-200	40-200	40-200	40-200	40-200	40-200
Suitable excavator	ton	1.5-4	4-6	6-10	10-16	16-24	24-32	34-42	45-52

Wide range of applications
Related Products
Company Profile
Yantai Zhuoxin Machinery Co., Ltd. is located in Yantai City, Shandong Province. It is a one-stop enterprise specializing in the supply of excavator accessories with more than 15 years of experience. The company has two factories of its own, with a total area of more than 20,000 square meters. It mainly produces and sells hydraulic breakers, quick connectors, pile drivers, hydraulic shears, vibratory rammers, wood grabs, spiral drills, buckets and other excavator accessories.
Our company adheres to the concept of comprehensive development. In recent years, it has continuously expanded the company's business scope and opened up overseas markets. On the basis of pursuing development, Yantai Zhuoxin Machinery Technology Co., Ltd. will make the quality the top in the industry and create high-end quality at a reasonable price.
The advanced technology and professionalism of Yantai Zhuoxin Machinery Technology Co., Ltd. are at a high level in the same industry in China. The scale and brand reputation of the factory are very good. It has won the trust and recognition of countless customers at home and abroad.
Yantai Zhuoxin Machinery Technology Co., Ltd., looking forward to becoming friends with you.
Advantages of Yantai Zhuoxin Machinery Technology Co., Ltd.
1.18 years of production experience
Yantai Zhuoxin Machinery Co., Ltd. has established its own factory for more than 18 years and has accumulated rich experience in the production of breaker hammers. The stability of the products can bring customers a good user experience.
2.20000+ factory area
The 20000+ square meters of floor space can accommodate the production workshop, assembly workshop, constant temperature workshop, automated production workshop and office area at the same time, integrating production, assembly and sales, providing a guarantee for on-time delivery
3.150+ employees
Yantai Zhuoxin Machinery Technology Co., Ltd. has more than 150+ employees, with sales, production, assembly, delivery, after-sales and other departments, ensuring that customers can enjoy one-to-one service in every link
4.Customization
We provide customization services for more than 30 dealers. You can customize the appearance color, logo, brand, material, etc. In addition, our factory is also capable of designing and producing according to your drawings. We have a professional engineering team to serve you.
5.Transportation
We accept the freight forwarding company and transportation method specified by the customer.
Our company has a complete delivery system and logistics department, which can provide sea transportation, railway transportation, air transportation, DHL and other transportation methods to ensure that the goods can be transported to your destination in the shortest time.
FAQ
Q1. How many days for the delivery time ?
It is about 1-7 working days after the order confirmation.
Q2. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated, Recommended Trade Assurance to guarantee buyer's property.
Q3. Are you able to manufacturing products according to customer's design?
Sure, we have made many special orders from oversea for 10 years since 2010. So we have enough ability to deal with any cases. OEM certificate is available to provided.
Q4. What's your advantages in the machinery manufacturing industry?
Fast delivery time, High quality products, Best customer service, Adopting the latest production technology.
Q5. Which countries have you been exported recently?
Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
Q6. Are you sure that your product will fit my excavator?
We have different brand hydraulic breakers. Show me your model number, and we can give you best match products.
Q7. How about the packing of the goods?
Standard export package, wood cases, or as customers' demands.
