Waste Film Recycling Machine for 500kg/Hr

Product Description

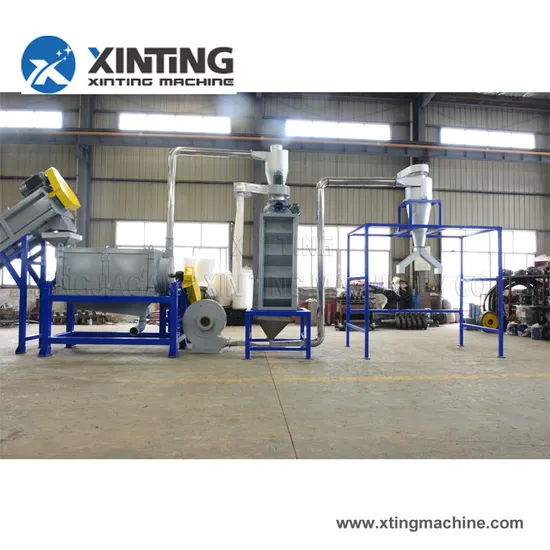

Waste film recycling machine
Waste PP PE Film Woven Bag Pet Bottle plastic Recycling Washing Machine ,You can put dirty film direct to wash it, after washing it you can use them to pelletize or injection or do other things.
1. The whole line is flowing is : conveyer belt - crusher - Screw loader - floating - screw loader - frication machine - Screw loader - dewater - screw loader - hot pipe dryer.
2. The capacity can be supplized accroding to your requrement, such as : 300kg/h, 500kg/h, 800kg/h, 1000kg/h,1500kg/h, 2000kg/h
3. How many parts do you need is according to your require.such as floating ,you can use one set or two sets, and also three sets, this is up to how dirty of your raw material.
4. You can choose full automatic or half-automatic line
5. We have SGS certifcation, past CE certifcation.
6. After drying the water content can reach 5-8% (according to the thickness of film).
Application HDPE recycling machine:
Suit for recycling PP/PE waste film, Post consumer film, Food contaminated film, Garbage
film, Agricultural film, Mulching film, Greenhouse film, PP woven bags etc.

Specification plastic recycling machine for hdpe washing machine :
The production line is mainly composed of Plastic Film Shredder/ Plastic Film Granulator, Friction
Washer, Sink Floating Tank, Horizontal Centrifugal Dryer, Squeezer or Squeezer & Agglomerator. The whole
production line is easy to operate, efficient and low energy consumption.
Detailed parameter

Model	Capacity	Installed power	Hot washing	Water suppply	Man power	Area required
PE-300	300kg/h	120kw	Optional	4-5m³/h	1-2	23m×5m×3.5m
PE-500	500kg/h	185kw	Optional	5-6m³/h	1-2	25m×6m×5.5m
PE-1000	1000kg/h	270kw	Optional	7-8m³/h	1-2	40m×6m×5.5m

Output Type :
Material will be processed by crushing, washing, dewatering, drying. The humidity of final output
could be within 5-10%.
Material will be processed by crushing, washing, dewatering, squeezing & aggregating. The
humidity of final output could be within 2%.


After-sales Service : Our company have a experienced installation team to provide professional installation guidance and training support.
