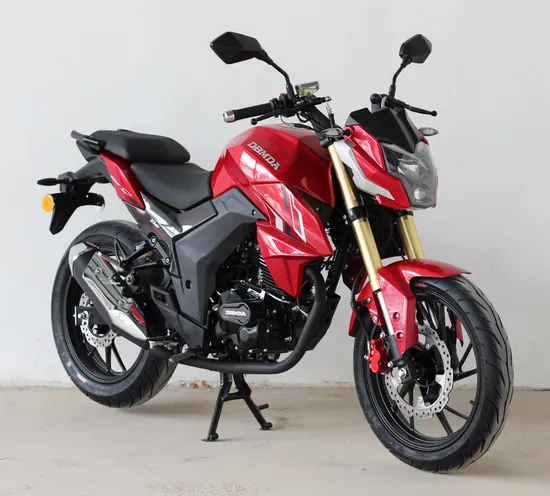

150cc/200cc/250cc Street/Racing Motorcycle with LED Lights/Disc Brakes (DR)

Product Description

1.Specification

DIMENSION		CHASSIS
L*W*H (mm):	2030*780*1100	Front brake:	disc brake
Wheelbase (mm):	1400	Rear brake:	disc brake
Seat to Ground Height (mm):	800	Front tire:	110/70-17
MIN Ground Clearance (mm):	260	Rear tire:	140/70-17
Dry weight (kgs):	135
Fuel capacity (L):	14

ENGINE 150cc		ENGINE 200cc		ENGINE 250cc
Type:	Single cylinder, four stroke, air-cool	Type:	air-cool,single cylinder,four stroke	Type:	air-cool,single cylinder,four stroke
Displacement:	150CC	Displacement:	200CC	Displacement:	250
Max speed (km/h):	100 km/h	Max speed (km/h):	110 km/h	Max speed (km/h):	125
Bore x Stroke(mm):	57.3 x 57.8	Bore x Stroke(mm):	62 * 57.8	Bore x Stroke(mm):	65.5 x 59
Max power (kw/rpm):	8.5/8000	Max power (kw/rpm):	9.6/7500	Max power (kw/rpm):	12.5/7500
Max torque (N.m/rpm):	11.5/6500	Max torque (N.m/rpm):	13.6/5500	Max torque (N.m/rpm):	16.5/6500
Start System	Electric / Kick	Start System	Electric / Kick	Start System	Electric
Transmission:	5 GEARS	Transmission:	5 GEARS	Transmission:	6
Compression ratio:	9.2:1	Compression ratio:	9.0:1	Ignition mode:	CDI

2.Description

★ High Performance Street Motorcycle with New design.
★ With Front & Rear Disc Brake System.
★ With inverted front abdorber and rear singal absorber.
★ With whole LED lights and digital speedometer.
3.Detailed Pictures


4.Prodution workshop & Warehouse

5.FAQ
★.Q: What's the delivery time?
A: It usually takes about 30-35 days to finish an order after receiving the deposit. But the exact delivery time might be different for different orders or at different time.
★.Q: Can I mix different models in one container?
A: Yes, Different models can be mixed in one 40HQ, but no more than 2 different models for 1x 40 HQ.
★.Q: Do you have the products in stock?
A: No. All motorcycles will be produced according to your order including samples.
★.Q: Can I use my own design for the models?
A: Sure. We can make motorcycles with your brand, design and colors.
★.Q: Where is your factory?
A: Our factory is loacted in Foshan, Guangdong. The port of loading can be SHENZHEN / GUANGZHOU port.
Please feel free to contact us if you want to know more!
