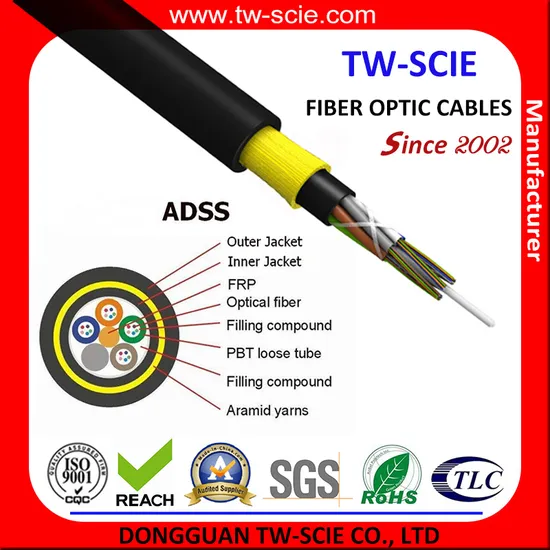

ADSS All Dielectic Self Supported Fiber Optic Cable-G

Product Description

ADSS All Dielectic Self Supported Fiber Optic Cable

ADSS Fiber Optic Cable Technology Specification:
Ref.outer diameter (mm)	Ref.weight kg/km Weight		Ref.daily max.working tension (kN)	Max allowable working tension (kN)	Break strength (kN)	Strength member CSA (mm2)	Modulus of elasticity kN/ (mm2)	Heat expansion coefficient ×10-6 /k
	PE sheath	AT sheath
12.5	125	136	1.5	4	10	4.6	7.6	1.8
13	132	142	2.25	6	15	7.6	8.3	1.5
13.3	137	148	3.0	8	20	10.35	9.45	1.3
13.6	145	156	3.6	10	24	13.8	10.8	1.2
13.8	147	159	4.5	12	30	14.3	11.8	1.0
14.5	164	177	5.4	15	36	18.4	13.6	0.9
14.9	171	185	6.75	18	45	22	16.4	0.6
15.1	179	193	7.95	22	53	26.4	18	0.3
15.5	190	204	9.0	26	60	32.2	19.1	0.1
15.6	194	208	10.5	28	70	33	19.6	0.1
16.3	211	226	12.75	34	85	40	20.1	-0.4
16.8	226	242	15.45	41	103	48	24	-0.5
17.2	236	253	16.2	45	108	51	25.1	-0.8
17.9	249	266	18	50	120	58.8	26.1	-0.8

ADSS optic fiber cable Optical Characteristics: :
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive
				dispersion shifted single-mode fiber

Dong Guan Tw-Scie Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
