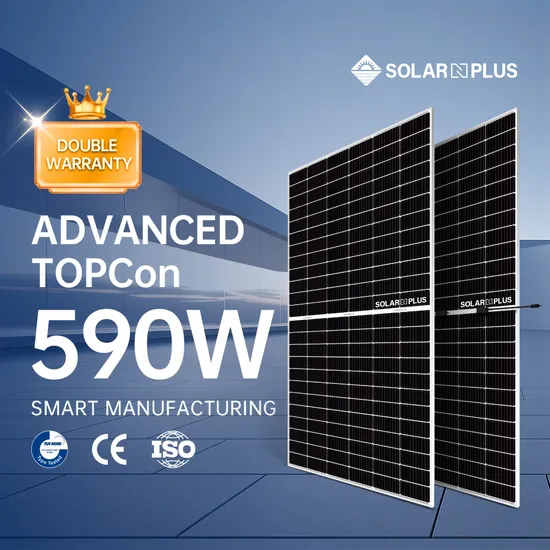

Solarnplus High Efficiency Bifacial Topcon Solar Panel 144 Series 580W 585W 590W 595W 600W CE TUV SGS IEC for Utility Project Agriculture
| US$0.088 | 30,000 WP (MOQ) |
Basic Info.
Model NO.
SP-N16-144HG580-600W
Number of Cells
72pcs
Application
for Utility and Large-Scale Project
Condition
New
Certification
ISO, CE, TUV, IEC, Bis, Jepa, Sec, Inmentro, CQC
Material
Polycrystalline Silicon
Weight
31.5kg
Maximum System Voltage
DC1500V (IEC)
Maximum Series Fuse Rating
25A
Mechanical Load
5400PA/2400PA
Transport Package
40hc
Specification
2278*1134*30mm
Trademark
SOLAR N PLUS
Origin
China
HS Code
8541430000
Production Capacity
10gw / Year
Product Description
Product DescriptionSolar N Plus high efficiency bifacial TOPCon soalr panel 144 series 570W-600W CE TUV SGS IEC
This series module features TOPCon 144 cells, with a maximum power output of 600W and an impressive efficiency rate of up to 23.2%. These modules exhibit minimal degradation and a low temperature coefficient, ensuring consistent high power production in any environment. Additionally, the products are backed by a comprehensive warranty, including a 15-year product warranty, a 30-year power warranty, and dual insurance coverage from Ping An and Ariel Re, providing unmatched reliability and assurance.
Product Parameters
| Electrical Characteristics (STC) | ||||||
| Maximum Power (Pm) | W | 580 | 585 | 590 | 595 | 600 |
| Power Tolerance | W | 0~+5 | ||||
| Maximum Power Voltage (Vm) | V | 45.15 | 45.35 | 45.55 | 45.75 | 45.95 |
| Maximum Power Current (Im) | A | 12.85 | 12.90 | 12.96 | 13.01 | 13.06 |
| Open Circuit Voltage (Voc) | V | 52.6 | 52.8 | 53.0 | 53.2 | 53.4 |
| Short Circuit Curren (Isc) | A | 13.57 | 13.62 | 13.67 | 13.72 | 13.77 |
| Module Effificiency (ηm) | % | 22.5 | 22.7 | 22.8 | 23.0 | 23.2 |
| STC:AM=1.5, irradiance=1000W/m2, module temperature=25ºC | ||||||
| Electrical Characteristics (NMOT) | ||||||
| Maximum Power (Pm) | W | 437 | 441 | 445 | 449 | 453 |
| Maximum Power Voltage (Vm) | V | 41.54 | 41.72 | 41.90 | 42.08 | 42.26 |
| Maximum Power Current (Im) | A | 10.52 | 10.57 | 10.62 | 10.67 | 10.72 |
| Open Circuit Voltage (Voc) | V | 49.73 | 49.93 | 50.13 | 50.33 | 50.52 |
| Short Circuit Curren (Isc) | A | 10.91 | 11.96 | 11.01 | 11.06 | 11.11 |
| NMOT: irradiance=800W/m2, environment temperature=20ºC, wind speed=1m/s | ||||||
| Container | 40'HC |
| Pieces per Pallet | 36 pcs |
| Packaging box Size | 2335×1145×1260mm |
| Pieces per Container | 720 pcs |
