Automatic Waste Paper Blanking Separator Stripping Machine for Cigarette Box Cloth Label Tag

Product Description

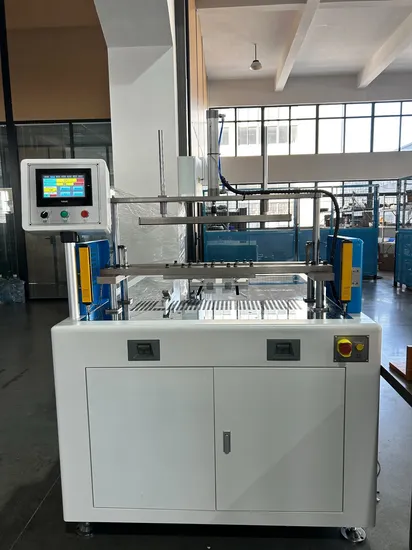

KYD-750 Semi-Auto Hang Tags Stripping Machine
Samples
Way of Stripping : Row by Row
Machine Description1.KYD-750 Semi-auto Hang Tags stripping machine, is suitable for removing clothing tags, cards, small medicine boxes, cigarette boxes, toy boxes and other cardboard boxes.
2.Not need the mould for different product size, with the upper pressing plates & lower pins to adapt to different products size & shape.
3.The main action is driven by the servo motor, liner screw and hydraulic system, which makes the equipment more accurate and convenient to use, with low failure rate and agile action.
4.Save Labor and Save tool cost and mould cost, high efficiency, simple operation, increasing user's production capacity
Technical Parameters:

Model	KYD-750
Max Material Stack Size	750*720MM
Max. Material Stack Height	80MM
Mini Material Stack Height	55MM
Max Pressure	100 Bar
Speed	1-5 times/min
Total Power	5KW
Average Power	3.5KW
Air Consumption	2L/min
Compressed Air	5-6 Bar
Voltage	380V/3 phase/50HZ
Machine size	1750*1250*1650mm
Weight	1000KGS

Certifications
Packaging & Shipping
Company ProfileWENZHOU KUAIYIDA MACHINERY CO.,LTD
established in 2023, we focus on the development and innovation of blanking &stripping machine, provide efficiency products and reasonable stripping solution to every user. Company structure is scientific and reasonable with humanized management mechanism. Mature customer service system, technical engineers at any time provide after-sale consultation and arrangement installation and trouble shooting service for foreign customers
Our Workshop
Exhibition Photos
After Sales Service
Warranty period of the productThe product warranty period is generally one year, and our company provides lifetime maintenance services. If the machine has quality problems, our company will help the customer to solve it through the following ways:
a. Send spare parts to the customer.
b. Remotely assist customers in maintenance.
c. Notify our agent company to send personnel to the customer's factory for maintenance.
d. Our company directly dispatches relevant personnel to the customer's factory for maintenance.About transportation damageIn the process of product transportation, if product damage occurs, it is determined that our product packaging and reinforcement work is not in place, and our company will bear the corresponding losses.About machine maintenanceWe will contact customers on a regular basis on how to maintain and maintain the machine. For domestic customers, we will have a master to provide on-site service.Problems during useIf there is any problem in the process of using the product, the customer can directly call or send an email to our after-sales department (24-hour hotline). The personnel of our department will respond immediately and make a decision on the response measures within 24 hours
