PE Poly Plastic Nylon Pbat PLA Biodegradable Film Blown Film Extruder Machine with Rotary Die and Double Winder Blown Film Extruder Blown Film Extrusion Machine

Product Description

The high speed film blowing machine is designed to produce plastic films of various thicknesses, widths, and lengths. The process involves melting plastic pellets or granules and then extruding the molten material through a die to form a bubble. The bubble is then cooled and flattened to produce a continuous flat film.
At its core, a high speed film blowing extruder consists of an extruder, a die head, an air ring, and a cooling unit. The extruder melts the plastic material and pushes it through the die head, which shapes the material into a bubble. The air ring blows cool air onto the bubble to stabilize its shape, and the cooling unit cools the film down to its final thickness and width.
the high-speed film blowing machine and normal film blowing machine both machines are designed to produce plastic film, the high-speed blown film machine is capable of producing film at a much faster rate than a normal film blowing machine.High-speed film blowing machines are equipped with advanced technology and features that enable them to produce film at speeds of up to 100 meters per minute . This high production speed is achieved through the use of advanced extrusion systems, high-performance cooling systems, and advanced automation features.
In contrast, normal film blowing machines typically operate at lower production speeds of around 40 meters per minute. They may not have the same level of automation and advanced features as high-speed machines, which can limit their productivity and efficiency.
The high-speed plastic film blowing machines also offer higher production quality as they often come with advanced sensors that monitor and control the thickness and quality of the film being produced. This helps ensure that the finished product meets the required standards.
Our film extruder is easy to operate, energy-efficient, and capable of producing films with high optical clarity and mechanical strength. It is able to handle a wide range of plastic materials, including low-density polyethylene (LDPE), high-density polyethylene (HDPE), and linear low-density polyethylene (LLDPE).
With a reliable plastic film extruder, our machine can meet customers' production goals with ease and produce high-quality plastic films that meet their customers' expectations.
Optional Equipment:
1. Auto-loader
2. Corona treater
3. Rotary die head
4.Double winder
5. Air compressor
6. High speed screen changer
Here is the machine specifications for reference

Model	XG-HS50	XG-HS55	XG-HS60	XG-HS65
Suitable material	HDPE/LDPE/LLDPE
Film width	100-600mm	100-800mm	100-1000mm	100-1200mm
Film thickness	0.006mm-0.10mm(if you have special request please clarify)
Max.Output capacity(kg/hr)	HD:60kg LD:80kg	HD:80kg LD:100kg	HD:100kg LD:120kg	HD:120kg LD:140kg
Screw diameter(mm)	50mm	55mm	60mm	65mm
Screw L/D Ratio:	30:1-32:1	30:1-32:1	30:1-32:1	30:1-32:1
Driving motor(kw)	22	30	37	45
Screw material	Full bimetallic	Full bimetallic	Full bimetallic	Full bimetallic
Barrel material	38CRMOALA	38CRMOALA	38CRMOALA	38CRMOALA
Cylinder cooling	370wx2	370wx2	370wx3	370wx3
Temperature control(zone)	5	5	6	6
Die head size(mm)	60/80mm	80/120mm	80/150mm	120/220mm
Air blower(kw)	5	7.5	11	15
Roller width(mm)	700	900	1100	1300
Take up speed(m/min)	10-120	10-120	10-120	10-120
Take up motor(kw)	2.2	2.2	3	3
Winding motor(N/M)	10	10	16	16
Winding speed(m/min)	10-80	10-80	10-80	10-80

production procedure
Sample film

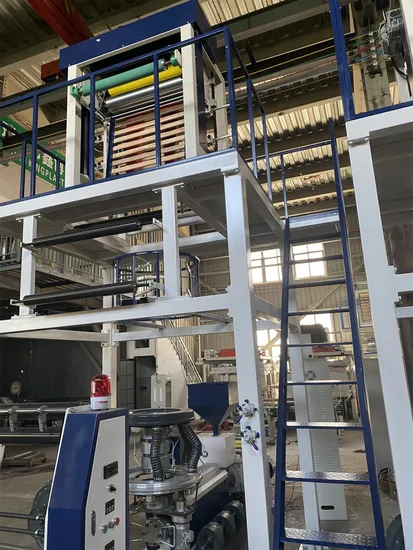

Machine outlook
Rewinder part
Control box
Take up unit
Machine package and shipment
Our service Team
Factory layout
