160-1200kg/H Plastic Recycling Pelletizing Machine for PE/PP/PVB/ABS/PS/Pet/XPS/EPS Flakes/Regrinds Pet with FDA Certificate

Product Description

Free Accessories 500-1000kg/H Plastic Recycling Pelletizing Machine for PE/PP/PVB/ABS/PS/PC/XPS/EPS PET with FDA Certificate Product Description

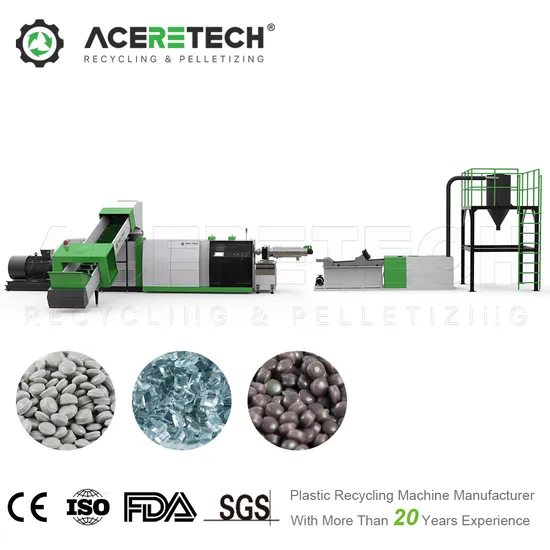

To meet the market demand, ACERETECH developed and launched environmental 3 in 1 integrated plastic granulation recycling system--ACS-HTM COMPACTING AND PELLETIZING MACHINE.
It is different from traditional granulation line.This ACS-HTM smart plastic recycling pelletizing machine pays more attention to protecting the physical properties of environmental plastics, can maintain the plasticity, toughness and durability of the original environmental plastics as far as possible.Machine Working Process:The equipment includes the belt conveyor/ hauling off feeding device, compactor, single screw extruder with double zone vacuum degassing system, filters, water-ring pelletzing system/ under-water pelletizing/ water strands pelletizing system/ under water strands pelletizing system, dryer, product silo and electric cabinet control system.
With well understanding of characteristics of different plastic materials and modular design, ACS-HTM pelletizing machine optimizes size-reduction and pre-heating precess in the compactor, avoids over-heating or degradation. And with precise temperature control and optimized plasticization design, it ensures reliable quality of plastic granules.

Product Parameters

Machine Model	ACS
Target Recycled Material	HDPE, LDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, ABS,PET
Final Product Shape	Particles
System composition	Belt Conveyor, Cutting Compactor, Single Screw Extruder, Filtration, Pelletizer, Water Cooling Device, Dehydration Section,Conveyor Fan, Product Silo.
Output Range	150kg/h-1200kg/h
Feeding Device	Belt Conveyor (Standard), Roll Hauling off device (Optional)
Compactor Volume	300L-1400L
Diameter of screw	80mm-180mm (Standard)
Material of screw	38CrMoAlA (SACM-645), Bimetal (Optional)
L/D of screw	31/1, 32/1, 34/1, 36/1 (According to the characteristics of recycling)
Heater of barrel	Ceramic heater or Far-infrared heater
Cooling of Barrel	Air cooling of fans through blowers
Vacuum deashing exhaust	Two Double-zone vacuum degassing system (Standard)
Pelletizing type	Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing
Voltage Standard	According to the Voltage of the Customer's Location
Optioanl device	Metal detector, Roll hualing off device, Masterbatch and additives feeder
Warranty	13 months from the date of bill of lading
Technical services	project design, factory construction, installation and recommendations, commissioning

Machine Model	Compactor		Single Screw Extruder
	Volume (Liter)	Motor Power (kw)	Screw Diameter (mm)	L/D	Power(kw) (kw)	Output capacity (kg/h)
ACS-H300/80	300	37	80	42	45/55	160-220
ACS-H500/100	500	55	100	42	90/110	300-380
ACS-H800/120	800	90	120	42	132	450-500
ACS-H1000/140	1000	110	140	42	160/185	500-650
ACS-H1200/160	1200	132	160	42	220/250	800-1000
ACS-H1400/180	1400	160	180	42	315	1000-1200

Detailed Photos
Company Profile

FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
* ACERETECH is original manufacturer.
* If you interested in our products and we can fulfill your request , you may pay a visit to ACERETECH Factory.
* The meaning of visiting supplier, since seeing is believing, ACERETECH Machinery with own manufacture and developed& research team, we can send you engineers and make sure the high efficiency after-sales service.
SEE ACERETECH MACHINE HOW TO ENSURE THE QUALITY
* In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
* Each component before assembly needs strict control by inspecting personnel.
* Each assembly is in charge by a master who has working experience for more than 15 years
* After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF ACERETECH MACHINERY
* After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
* After the commissioning, we will package the equipment by the standard export package for shipment.
* According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
* Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
