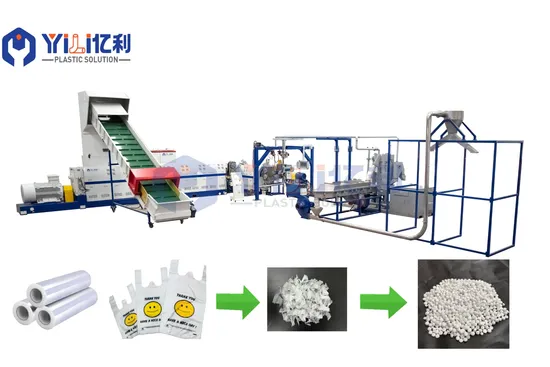

Advanced PP/PE Film Woven Bag Recycling Machine for Efficient Pelletizing

Product Description

Applicable Material:
HDPE, LDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, ABS
Introduction
The ZL series compacting and pelletizing system combines function of crushing, compacting, plasticization and pelletizing to one step. Applied in the plastics recycling and pelletizing process, it is a reliable and efficiency solution for plastics film, raffias, filaments, bags, woven bags and foaming materials re-pelletizing.
The final product will be in pellet form and can be placed directly into the production line for blowing film, tube extrusion and injection molding.
It consists of two sets of Single-Screw Extruders , suitable for printing ink heavy, high moisture content, poor fluidity and temperature sensitive, high impurity content materials, which requires the double filtration system, multiple exhaust and other higher requirements. The underwater cutting is good at different type and high viscosity polymer cutting, which can achieve high capacity comparing with spaghetti cutting. The whole pelletizing line realizes automatic production, easy to operate, low noise, good granules quality.
YILI Machinery specializes in the development, production and sales of one-stop waste recycling solutions. If you are looking for a trustworthy Plastics Recycling Machine manufacturer, just contact us with any question, inquiry or concern you might have and we will reply as quickly as possible.
Technical Specification

Model	Capacity (kg/hr)	Screw Size (mm)	L/D ratio	Energy consumption (kw/kg)
ZL80-100	150-200	80/100	30/8	0.35-0.4
ZL100-120	250-350	100/120	30/8	0.35-0.4
ZL120-150	400-500	120/150	30/8	0.35-0.4
ZL150-180	600-700	150/180	30/8	0.35-0.4
ZL180-200	800-1000	180/200	30/8	0.35-0.4

Tech Features & Advantages High automatic operation system, high efficiency, environmental protection, and energy saving; It can apply with different kinds of cutting solutions, such as, water ring cutting, strand cutting, under water cutting to meet different kinds of raw material and production requirement; Automatic plate screen changer or non-stop back-pulse automatic self-clean screen changer can reduce manual labor and increase the efficiency and convenience of operation; Two times filtering system, fore filtering in the first extruder and fine filtering in the second extruder, which ensure high quality of final products; The second extruder temperature can be set according to the production of first extruder, it's with also water cooling system even when the material need to be cool down during process in second extruder; The whole line is suitable for different material processing, which will apply for one or more materials in one line, which will reduce the investment cost. Main Machines For the line
Feeding belt conveyor
Belt conveyor is the standard feeding device to send the Plastic soft waste such as scraps, filaments, raffias, films to cutter compactor. If the waste films are in roll, an option is to use roller haul-off feeding device to send the films to compactor. The feeding speed is controlled by inverter, which is integrated with the compactor current. It will feed automatically according to the requirements of compactor.
Metal detector
Metal detector is an option for customer to choose , it can detect the metals inside material if there is to avoid the damage of knives in compactor. Once there is metals, the detector will give alarm, and stop the belt conveyor, the operator can take out the metals and restart the belt conveyor,. Customer can choose Germany and Chinese brand.
Cutter compactor
Cutter compactor works with fixed knives at side of compactor body and rotary knives at bottom plate of compactor. It can both cut the material into small pieces and make little agglomeration of the material, which remove the moisture inside material and let the feeding to extruder more stable and easier. The temperature inside compactor will go increasing by cutting and frication, there is over temperature cooling automatically. On top of compactor, there is exhaust device installed to such the moisture and dust during running of compactor.

Two stage extruders
Such design of pelletizing line includes two single screw extruders, which is suggested to use for heavy printed material, high contaminated material, low fluidity material, temperature sensitive material, high moisture content material. With such pelletizing line, it can remove more efficiently the moisture, the dirties inside material after granulation with more exhausting mouths and more filtrations, getting granules for high requirements.
Melt Filter
The double-column melt filtration systems offer high filtering areas and bear melting pressure more than 25Mpa. In pelletizing line, both double-column filters and plate type filters can be choose depends on customers filtering requirements. It can put multilayers of meshes inside for better filtering according to pellets quality requirements.
Under water pelletizer
Under water cutting system is specially designed for high flow rate material and high viscosity material, which is difficult in cutting. Customer can choose water ring cutting and spaghetti cutting also depends on the material and capacity requirements, we will suggest the suitable cutting for customer according to the material.

Vibration Sieve
The vibration sieve is used to sorting the granules after cutting to get universal sizes of final products, and at the time cooling down more the final granules.
PLC touch screen control
